SPI NDLE AND HUB (continued)

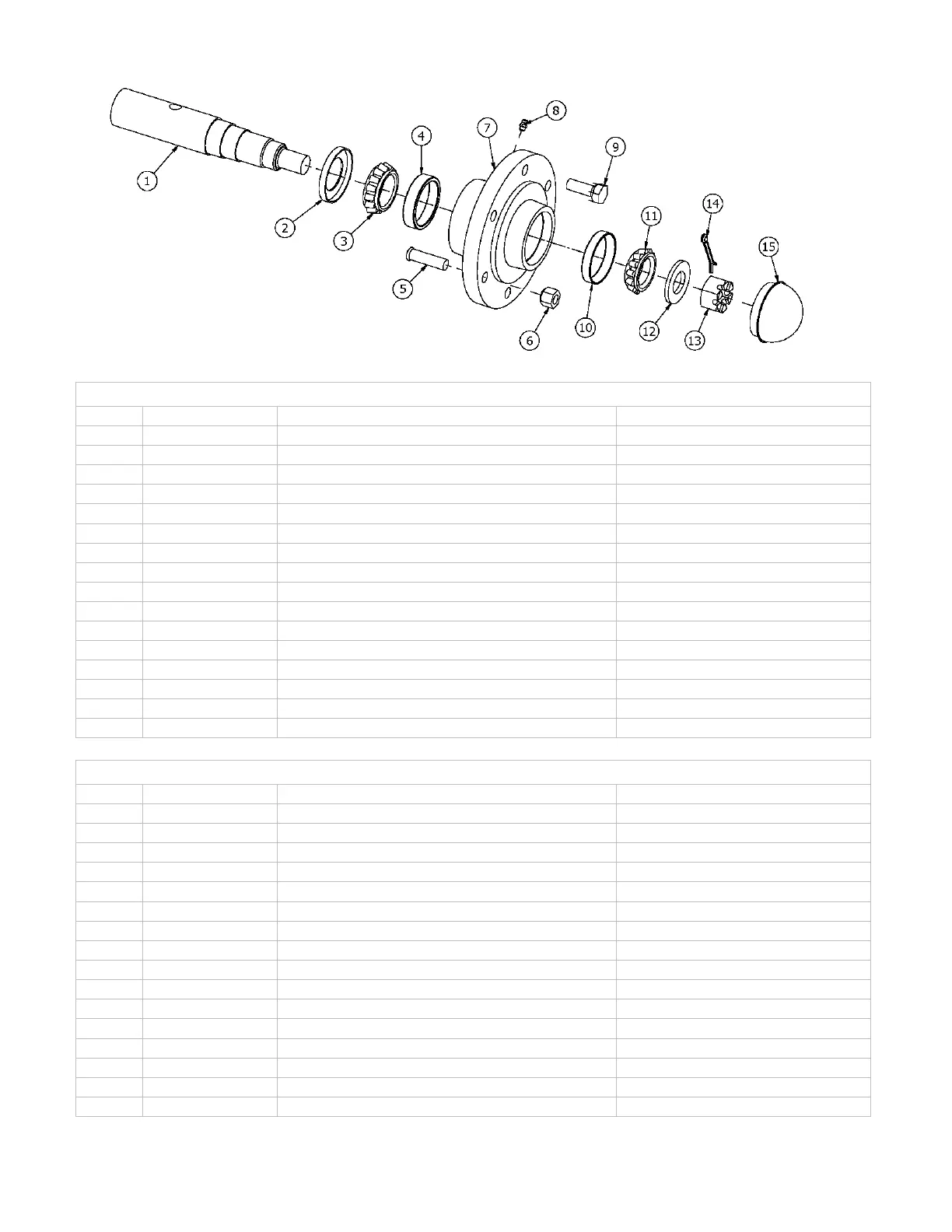

6-HOLE HUB ASSEMBLY SHOWN
8-BOLT HUB, 6000 LB ( 12.5L HWY – 15x10 RI M)
Key Part No. Description Notes/ Revisions
1 RT-3180 SPI NDLE, 2 3/ 4 X 12 1/ 2
2 RT-3182 GREASE SEAL, 8 BOLT HD HUB CR27394
3 RT-3183 I NNER BEARI NG JLM506849
4 RT-3191 I NNER RACE JLM506810
5
RT-3193
WHEEL STUD 5/8-18 X 2 1/2 5/ 8 – 18 X 2 1/ 2
6 WN-0063 WHEEL NUTS 5/ 8 5/ 8 - 18
7 RT-3184 HUB WI TH RACES, 8 HOLE HUB
8 GZ-0601 GREASE ZERK
9 N/ A WHEEL BOLTS
10 RT-3192 OUTER RACE LM501310
11 RT-3186 OUTER BEARING LM501349
12 RT-3190 SPI NDLE FLAT WASHER 1 5/ 16
13 RT-3187 SPI NDLE HEX CASTLE NUT
1 - 14 UNF
14 CP-7320 COTTER PI N (0.207 X 2)
15 RT-3188 DUST CAP
RT-3181 8-BOLT HUB ASSEMBLY, 6000LB I ncludes items 2,3,7,11,15
8-BOLT HUB, 7500 LB ( 12.5L-16 HWY - 16.5x9.75 RI M)
Key Part No. Description Notes/ Revisions
1 RD-4416 SPI NDLE, 3 X 12 1/ 2
2 RD-4582 GREASE SEAL, 8 BOLT 7500 LB HUB CR29968
3 RD-4583 I NNER BEARI NG 387AS
4 RD-4584 I NNER RACE 382A
5
RT-3193
WHEEL STUD 5/8-18 X 2 1/2 5/ 8 – 18 X 2 1/ 2
6 WN-0063 WHEEL NUTS 5/ 8 5/ 8 - 18
7 RD-4581 HUB WI TH RACES, 8 BOLT 7500 LB HUB
8 GZ-0601 GREASE ZERK
9 N/ A WHEEL BOLTS
10 RT-3192 OUTER RACE LM501310
11 RT-3186 OUTER BEARING LM501349
12 RT-3190 SPI NDLE FLAT WASHER 1 5/ 16
13 RT-3187 SPI NDLE HEX CASTLE NUT
1 - 14 UNF
14 CP-7320 COTTER PI N (0.207 X 2)
15 RT-3188 DUST CAP
RD-4580 8-BOLT HUB ASSEMBLY, 7500LB Includes items 2,3,7,11,15
