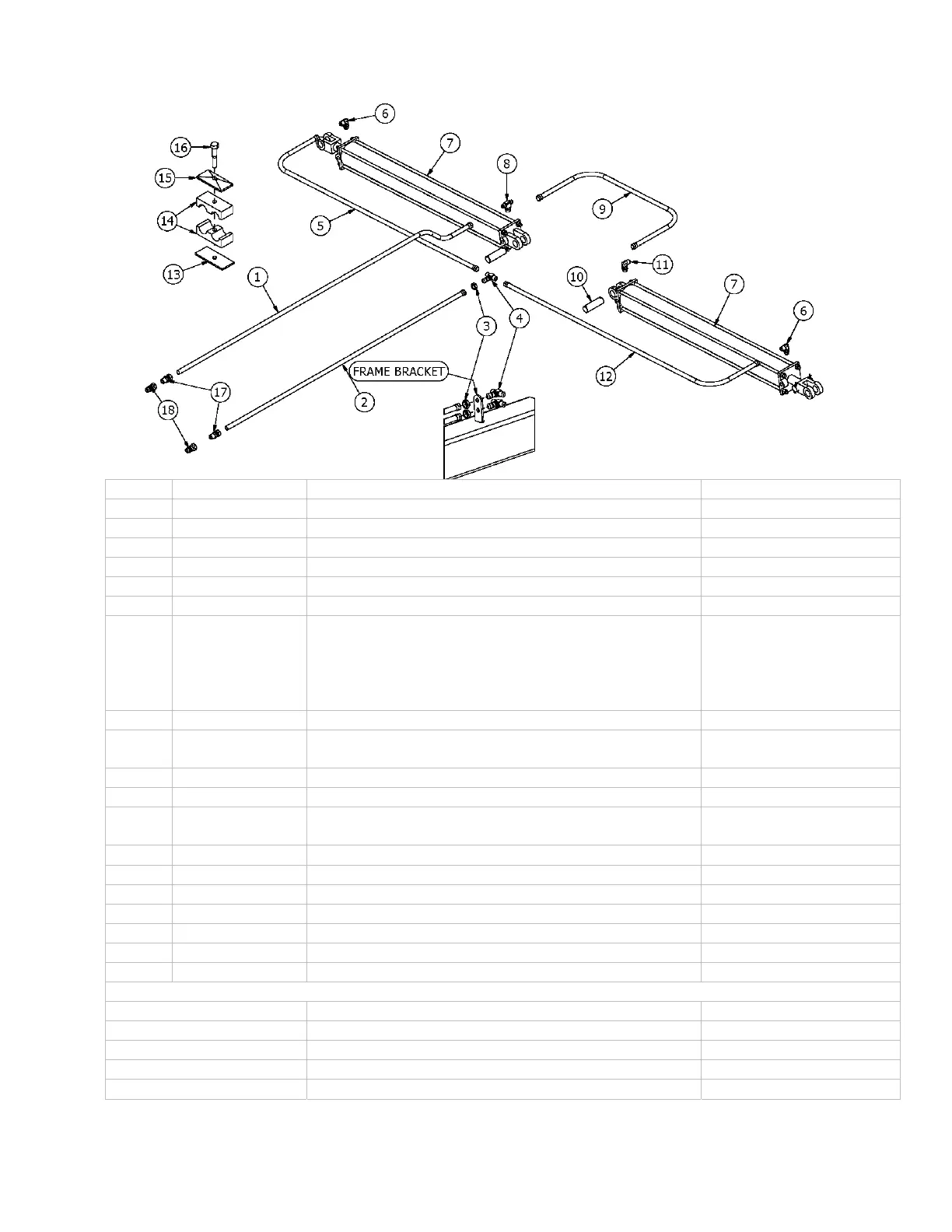

WI NG FOLD HYDRAULI CS
FOR RD-4020, 4025 AND 4030
Key Part No. Description Notes/ Revisions
1 HYH-3260 1/ 2” X 260” HYDRAULIC HOSE (w/ one ½ ” pipe end)
2 HYH-3250 1/ 2” X 250” HYDRAULIC HOSE (w/ one ½ ” pipe end)
3 HYO-4002 1/ 2” TEE NUT
4 HYF-1222 TEE (1/ 2”m – 1/ 2”m – 1/ 2”m)
5 HYH-2030 1/ 2” x 30” HYDRAULI C HOSE
6 HYF-2220 ELBOW w/ restrictor (1/ 2”m – 1/ 2” o-ring)
7
HYC-4030
HYC-4040
DAH-400-40-200
HYC-4540
DAH-450-40-200
4” x 30” HYDRAULIC CYLINDER
4” X 40” HYDRAULIC CYLINDER (MONARCH)
4” X 40” HYDRAULIC CYLINDER (MI DWAY)
4 1/ 2” X 40” HYDRAULIC CYLINDER (MONARCH)
4 1/ 2” X 40” HYDRAULIC CYLINDER (MIDAY)
RD-4020
RD-4025
RD-4025
RD-4030
RD-4030
8 HYF-1202 TEE (1/ 2”m – 1/ 2" o-ring – 1/ 2” m)
9
HYH-2024
HYH-2030
1/ 2” x 24” HYDRAULIC HOSE
1/ 2” x 30” HYDRAULIC HOSE
RD-4020
RD-4025 AND RD-4030
10 HYO-2123 CYLINDER CLEVIS PI N, 1 1/ 4 X 3 1/ 2
11 HYF-2220 ELBOW (1/ 2”m – 1/ 2” o-ring)
12
HYH-2050
HYH-2070
1/ 2” x 50” HYDRAULIC HOSE
1/ 2” x 70” HYDRAULIC HOSE
RD-4020
RD-4025 AND RD-4030
HYO-1201 CONSI STS OF 13, 14, 15 AND 16
13 HYO-1206 HYDRAULIC CLAMP WELD PLATE, 1/ 2
14 HYO-1202 HYDRAULIC CLAMP BODY, 1/ 2 (3/ 4” O.D.)
15 HYO-1204 HYDRAULIC CLAMP COVER, 1/ 2
16 HYO-1208 HYDRAULIC CLAMP BOLT, 1/ 2 (1 3/ 4)
17 HY-1301 HYDRAULIC RESTRI CTOR SWIVEL, 1/ 2M – 1/ 2M, 1/ 16
18 HYF-4002 HYDRAULIC DI SCONNECT
HYDRAULI C CYLI NDER SEAL KI TS
639585 SEAL KIT FOR HYC-4030 CYLINDER MONARCH
639585 SEAL KIT FOR HYC-4040 CYLINDER MONARCH
5A6106 SEAL KIT FOR DAH-400-40-200 EBES MIDWAY
648121 SEAL KIT FOR HYC-4540 CYLINDER MONARCH
5A7116 SEAL KIT FOR DAH-450-40-200 EBES MIDWAY
