McFarlane RD-4035 - Page 49

49

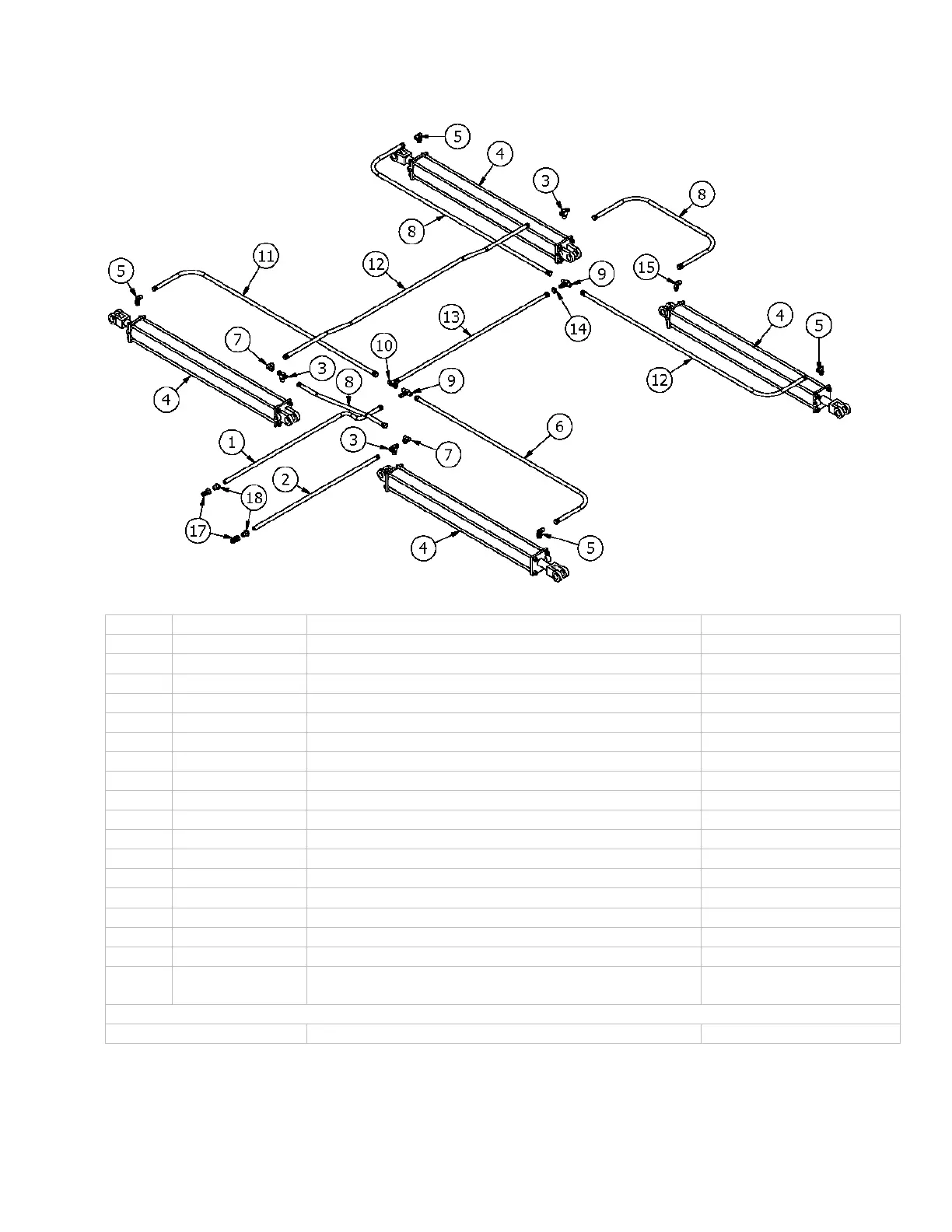

WI NG FOLD HYDRAULI CS
FOR RD-4035
Key Part No. Description Notes/ Revisions
1 HYH-3174 1/ 2” X 174” HYDRAULIC HOSE (w/ one ½ ” pipe end)
2 HYH-3212 1/ 2” X 212” HYDRAULIC HOSE (w/ one ½ ” pipe end)
3 HYF-1202 1/ 2” TEE NUT
4 HYC-4040 4” X 40” HYDRAULIC CYLINDER (MONARCH)
5 HYF-2220 ELBOW (1/ 2”m – 1/ 2” o-ring)
6 HYH-2070 1/ 2” X 70” HYDRAULIC HOSE
7 HYF-2022 ELBOW (1/ 2”m – 1/ 2” f)
8 HYH-2036 1/ 2” X 36” HYDRAULIC HOSE
9 HYF-1222 TEE (1/ 2” m – 1/ 2” m – 1/ 2”m)
10 HYF-1223 TEE (1/ 2” m – 1/ 2” m – 1/ 2”m)
11 HYF-2220 ELBOW (1/ 2”f – 1/ 2” o-ring)
12 HYH-2084 1/ 2” x 84” HYDRAULIC HOSE
13 HYH-2078 1/ 2” x 78” HYDRAULIC HOSE
14 HYO-4002 1/ 2” TEE NUT
15 HYF-2220 ELBOW (1/ 2”m – 1/ 2” o-ring)
16 HYO-2123 CYLINDER CLEVIS PI N, 1 1/ 4 X 3 – 3 1/ 2
17 HYF-4002 HYDRAULIC DI SCONNECT
18 HY-1303
HY-1301
HYDRAULIC RESTRICTOR 1/ 8” (1/ 2”Fpipe–1/ 2”Mpipe)
HYDRAULIC RESTRICTOR 1/ 16”(1/ 2”Fpipe–1/ 2”Mpipe)
HYDRAULI C CYLI NDER SEAL KI TS
639585 SEAL KIT FOR HYC-4040 CYLINDER MONARCH
