Powerconnections

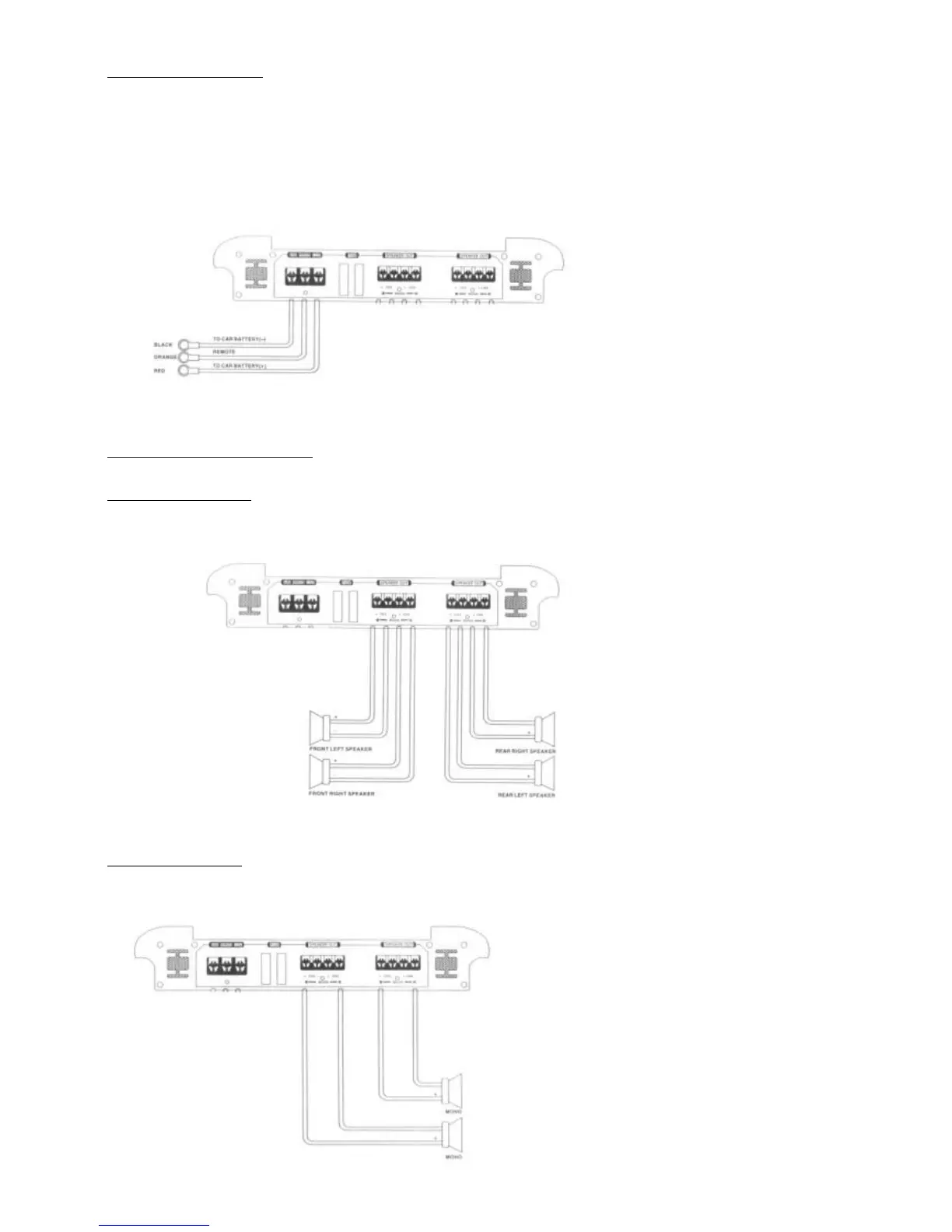

! Connect B+ to your + 12V of the battery
! GND should be connected to car-chassis
Take the shortest way in order to avoid possible disturbances.
! Remote must be connected to switched + 12V contact from your car-radio.
! After all connections are made, dose the electrical-circiut by re-connecting
the minus-battery-contact.
! Protect indicator
LED Protect safety, Overload-, short circuit- & thermofuse
! Power indicator
Speaker connections
4-channel stereo
For 4- channel stereo take four speakers with 2-8 ohm impedance as shown in the picture.
Take care of speakers polarity.
2-channel mono
For 2- channel mono take two speakers (subwoofer) with 2-8 ohm
impedance as shown in the picture.
