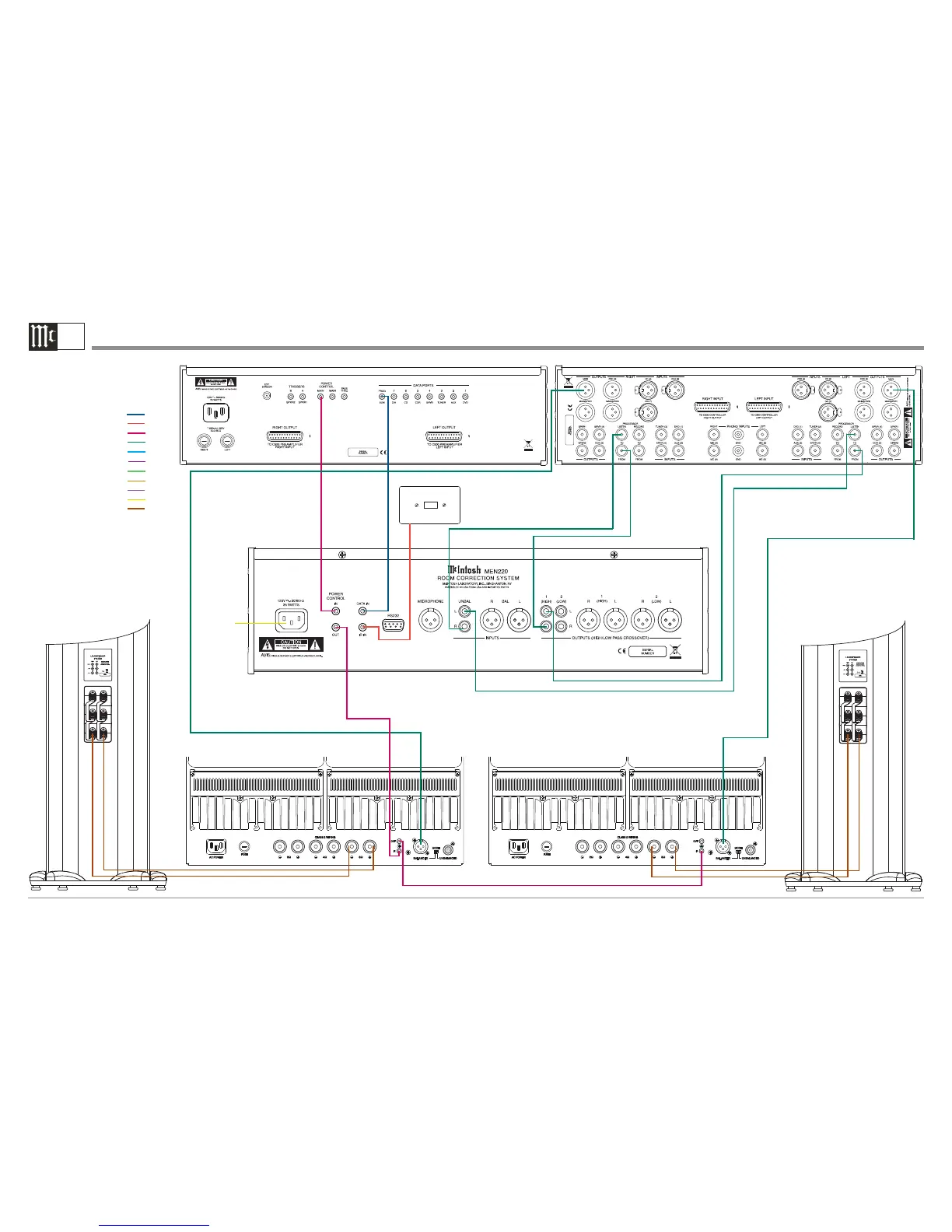

MEN220 Connection in a Processor Loop
1B
IR Sensor
Note: Refer to the MEN220 Owner’s
Manual page 10 for additional
connection information.
Connection Legend:
Data Cable*-
Sensor/Keypad Cable -
Power Control Cable* -
Audio Signal Cable -
Video Signal Cable -
RF Signal Cable -
Digital Signal Cable -
RS232 Cable -
Ground Wire -
AC Power Cords -
Loudspeaker Cable -
* 2 conductor shielded with 1/8 inch
stereo mini phone plug on each end.
Power Amplifier 1 (Partial View, Right Channel) Power Amplifier 2 (Partial View, Left Channel)
Loudspeaker (Partial View, Right Channel) Loudspeaker (Partial View, Left Channel)
Preamplifier
Controller (Preamplifier)
Connect to
AC Outlet
-
+
-
+
