5. There are eight lamps that illuminate the front panel and these must be removed at this time. To do so you will need a
¼” straight bladed screwdriver. Turn them about ¼ turn counterclockwise and lift them out. There are a few that are
buried under the ribbon cables. You will need to gently move the ribbon cable to the side to remove the lamps. The
lamps may be lifted out with a pair of tweezers.
!
6. You can now install the seven rubber grommets that were included in the kit into the sockets where the panel lamps
were removed. Do not install a rubber grommet in the “lamp 2” position, near the top right of the panel. Use the included
tools to aid in the positioning of the grommets.
!

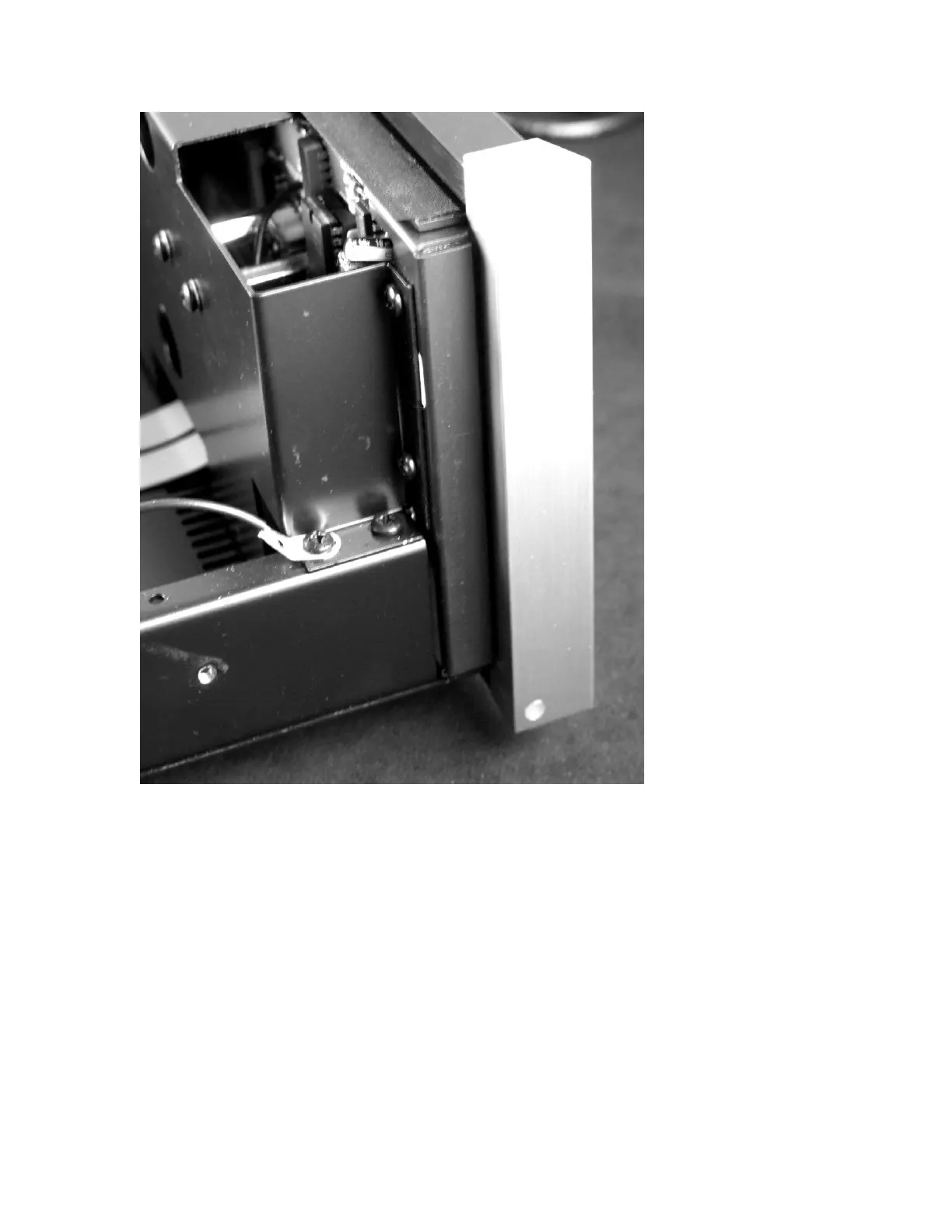

7. Remove the screw from the back of the faceplate as shown in fig. 3, and replace with the included threaded standoff,
using the lock washer from the screw.
