OVERVIEW
This versatile line of pro sound speaker systems are designed to fill a wide variety of needs including small
venue sound reinforcement, stage and studio monitoring, presentation and lecture use, as a component in
a larger system, or a stand alone PA. They are perfect for the traveling DJ, karaoke system, or for a
permanent installation in a clubs, restaurants, houses of worship and more.
Six available models include 10", 12" and 15" sizes, in both active (amplified) and passive versions. All
models feature: ▪Durable molded ABS plastic enclosure ▪High quality treated cone woofers ▪Horn loaded
titanium compression tweeter ▪1 3/8" pole mount ▪Heavy duty integrated handles
Passive Model Features:
• High power capacity
• 8ohm Impedance
• Twist-lock (Speakon compatible) input
• Daisy chain twist lock output

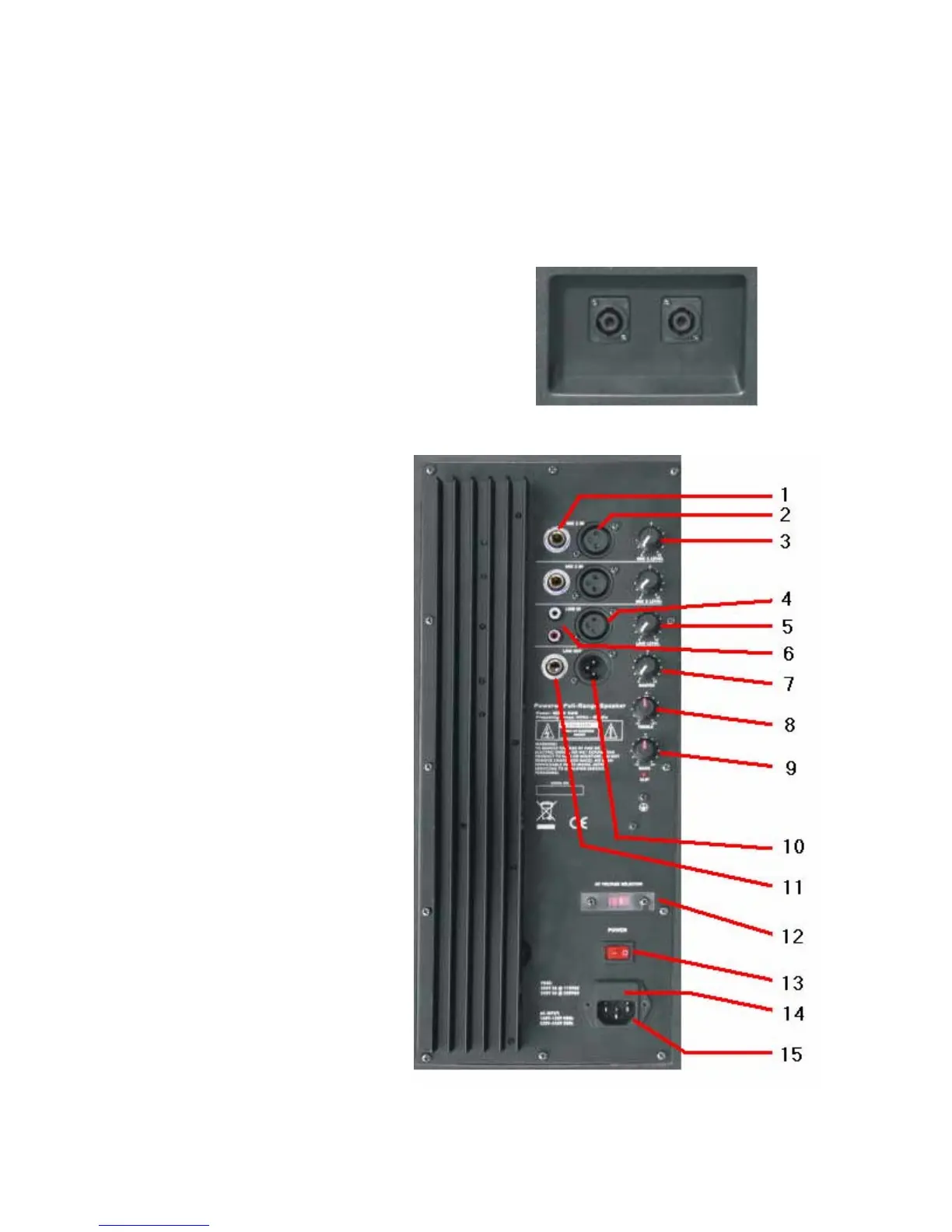

Rear panel twist lock connections
Active Model Features:
• Rugged amplifier with 80W,
120W or 140W RMS output,
depending upon model
• Three input mixer, each with
independent level controls
• Fixed line level output to daisy
chain a second amplified
speaker
• Independent controls for
master volume, bass and treble
• Input #1 and #2 accept
balanced XLR and ¼"
microphone signal
• Input #3 accepts balanced XLR,
or two unbalanced (summed
mono) line level signal
• Line output is either balanced
XLR male or ¼" female
• Selectable 110V / 220V
operation
• Detachable IEC type line cord
