07 08

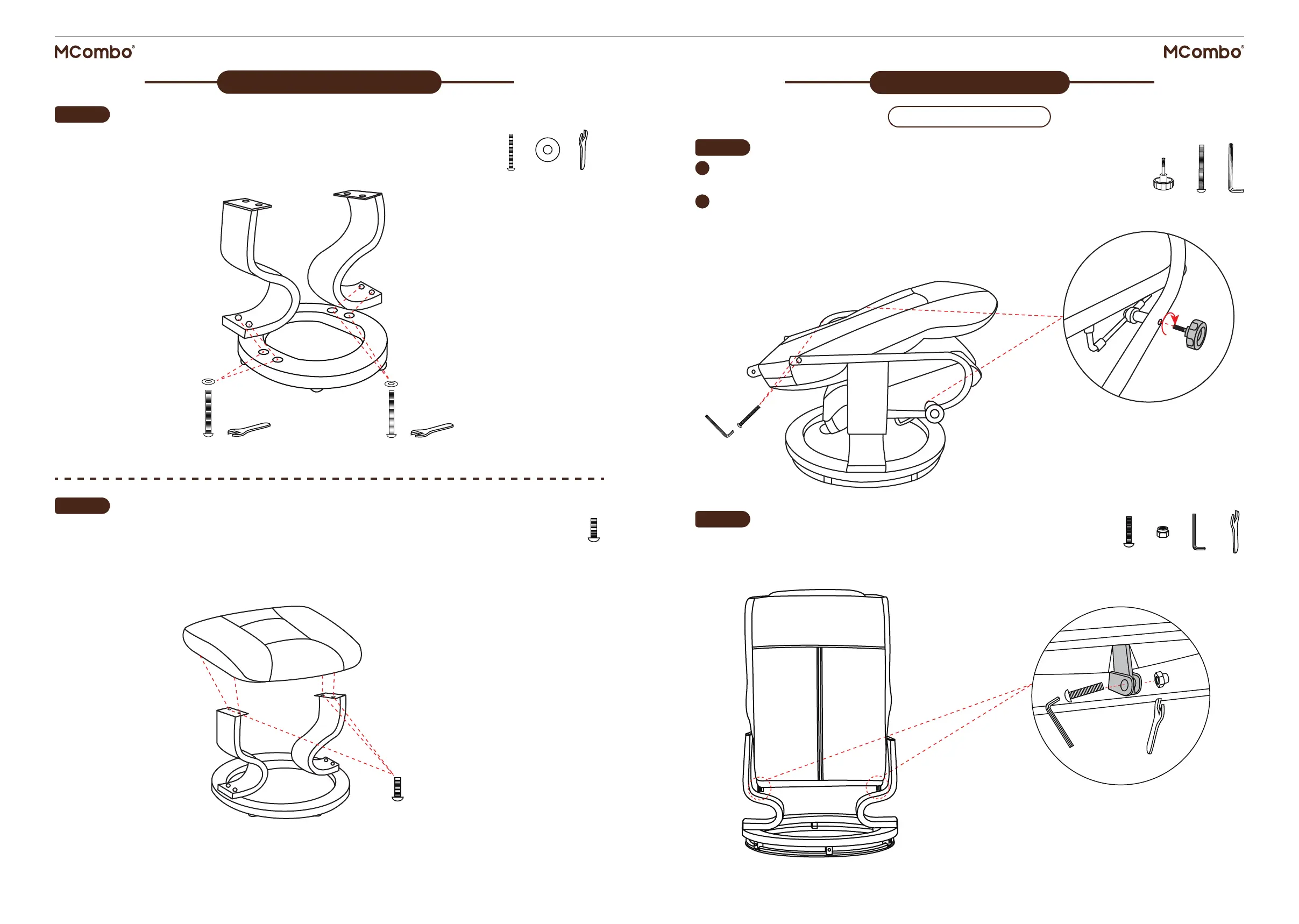

Assembly of Ottoman
O
E
F
G
M
J
C
J*4
G*4 O*4 M*1
Step 1
Use 4 Bolts #G and 4 Washers #O to fix 2 Ottoman Legs #E to Ottoman
Base #F and tighten the bolts by Allen Wrench #M.
Step 2
Attach the Ottoman Legs to the Ottoman Cushion using 4 Bolts #J.
Assembly of Chair
Assembly of Chair Back
N*2 H*2 L*1
Step 3
1. Use 2 Bolts #H to attach Back Cushion to Arm frame and tighten
the screws with Allen Wrench #L.
2. Install the Hand Wheel Knob #N as shown.
P*2 L*1 M*1K*2
Step 4
Use 2 Bolts #K and 2 Nuts #P to attach Back Cushion to Seat
Cushion and tighten the bolts as shown.
O
G
H
A
B
L
K
L
M
M
P
N
To Next Page
