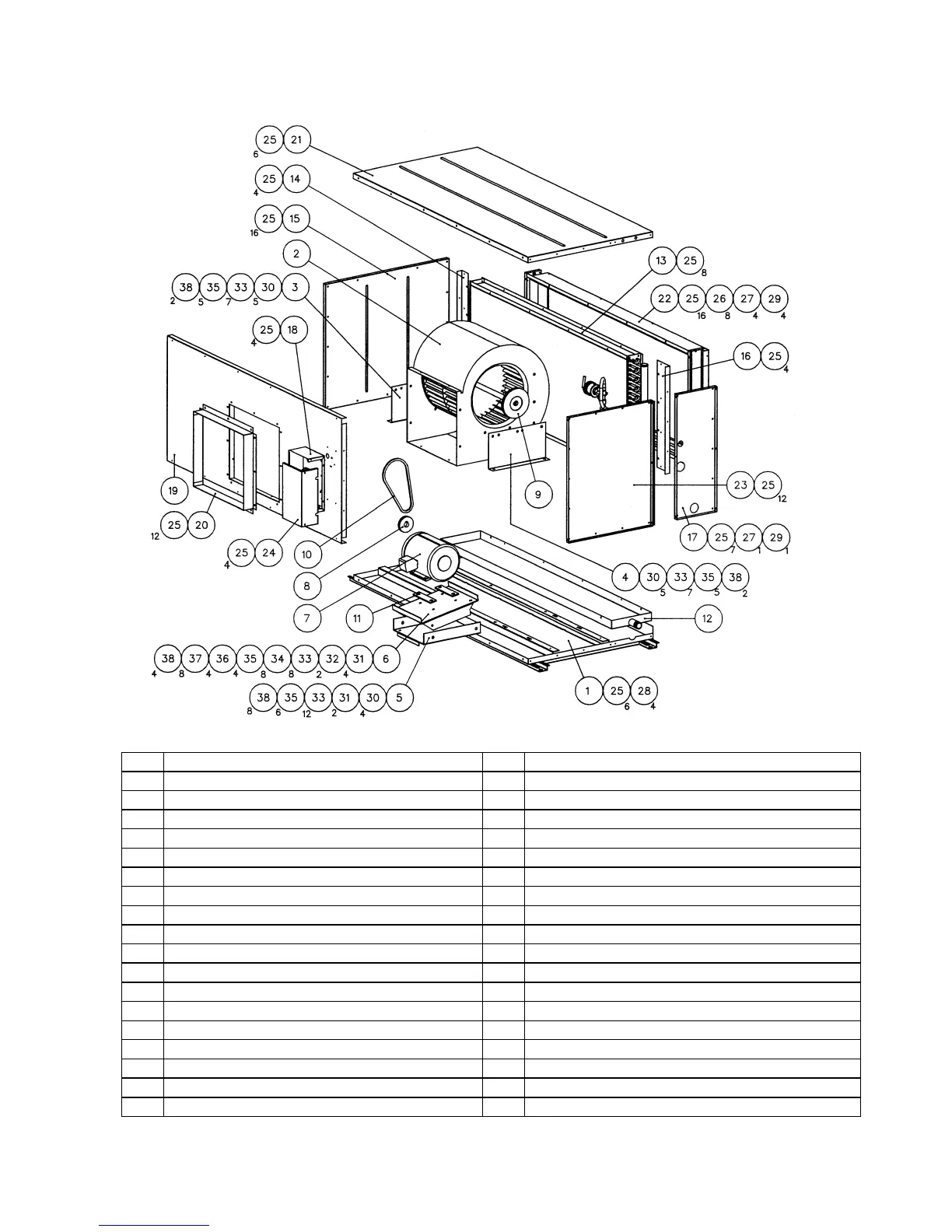

MODEL : MDB 125D
1 ASSY, BASE PAN INS. 20 ASSY, FLANGE BLOWER
2 ASSY, BLOWER 21 ASSY, TOP PANEL INS.
3 SUPPORT, BLOWER BRACKET LEFT 22 ASSY, SECTION FILTER
4 SUPPORT, BLOWER BRACKET RIGHT 23 ASSY, SIDE PANEL BIG RIGHT INS.
5 BASE, MOTOR LOWER 24 COVER, TERMINAL BOARD
6 BASE, MOTOR UPPER 25 SCREW, S.T.T.H. PHILIP (8 x 3/8" A)
7 MOTOR 26 SCREW, SELF TAPPING PAN HEAD (M5 x 16.0)
8 PULLEY, MOTOR 27 SCREW, TRUSS HEAD PHILIP
9 PULLEY, BLOWER 28 SCREW, WOOD
10 V-BELT 29 NUT, WELD M5
11 RUBBER SHEET 30 BOLT, HEXAGON (M8 x 20.0)
12 ASSY, DRAIN PAN INS. 31 BOLT, HEXAGON (M8 x 30.0)
13 ASSY, COIL TUBING 32 BOLT, HEXAGON (1/2")
14 ASSY, COIL SIDE COVER LEFT INS. 33 WASHER, PLAIN (M8)
15 ASSY, SIDE PANEL LEFT INS. 34 WASHER, PLAIN (1/2")
16 ASSY, COIL SIDE COVER RIGHT INS. 35 WASHER, SPRING (M8)
17 ASSY, SIDE PANEL SML RIGHT INS. 36 WASHER, SPRING (1/2")
18 ASSY, TERMINAL BOARD MAIN 37 NUT, HEXAGON (1/2")
19 ASSY, FRONT PANEL INS. 38 NUT, HEXAGON (M8)
NOTE :
WITH CONTACTOR
