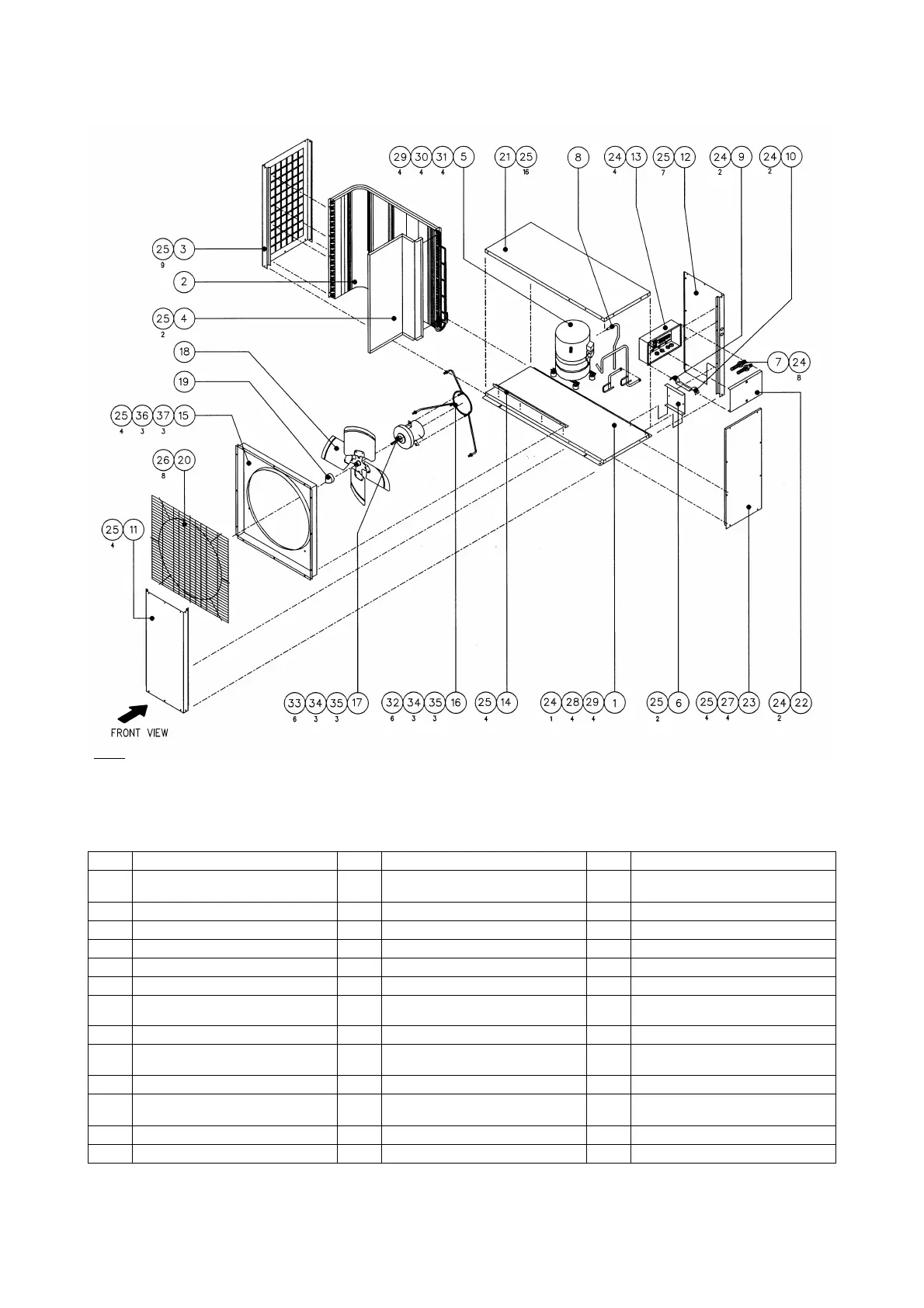

MODEL : MMC 075C
NO DESCRIPTION NO DESCRIPTION NO DESCRIPTION
1 ASSY., BASE PAN 14 PLATE, ORIFICE SUPPORT 27 SCREW, SELF TAPPING
2 ASSY., COIL 15 ASSY., ORIFICE PLATE 28 SCREW, WOOD
3 STRUCTURE FRONT LEFT 16 BRACKET, FAN MOTOR 29 WASHER, PLAIN
4 ASSY., PARTITION 17 MOTOR, FAN 30 WASHER, SPRING
5 ASSY., COMPRESSOR 18 FAN, BLADE 26” 31 NUT, HEXAGON
6 ASSY., VALVE PLATE 19 CAP, FOR FAN BLADE 32 WASHER, ISOLATOR
7 ASSY., ACCESS VALVE 20 GUARD, FAN 33 WASHER, PLAIN
8 ASSY., UNIT TUBING 21 PANEL, TOP 34 WASHER, SPRING
9 CLAMP, DISCHARGE TUBE 22
PANEL, TERMINAL BOARD
COVER
35 NUT, HEXAGON
10 CLAMP, SUCTION TUBE 23 ASSY., SERVICE PANEL 36 ISOLATOR DURO 40
11
ASSY., STRUCTURE FRONT
RIGHT
24 SCREW, TRUSS HEAD PHILIP 37 ISOLATOR SLEEVE
12 ASSY., STRUCTURE BACK RIGHT 25 SCREW, TRUSS HEAD PHILIP
13 ASSY., TERMINAL BOARD MAIN 26 SCREW, TRUSS HEAD PHILIP
NOTE :
1) WITH COPELAND SCROLL COMPRESSOR
2) WITH HEADLINE FAN MOTOR
3) WITH AUTO RESET H/L PRESSURE SWITCH
4) WITH TORIN FAN BLADE
5) FOR 380-420V/3PH/50Hz
6) FOR EXPORT SPEC
To Next Page
