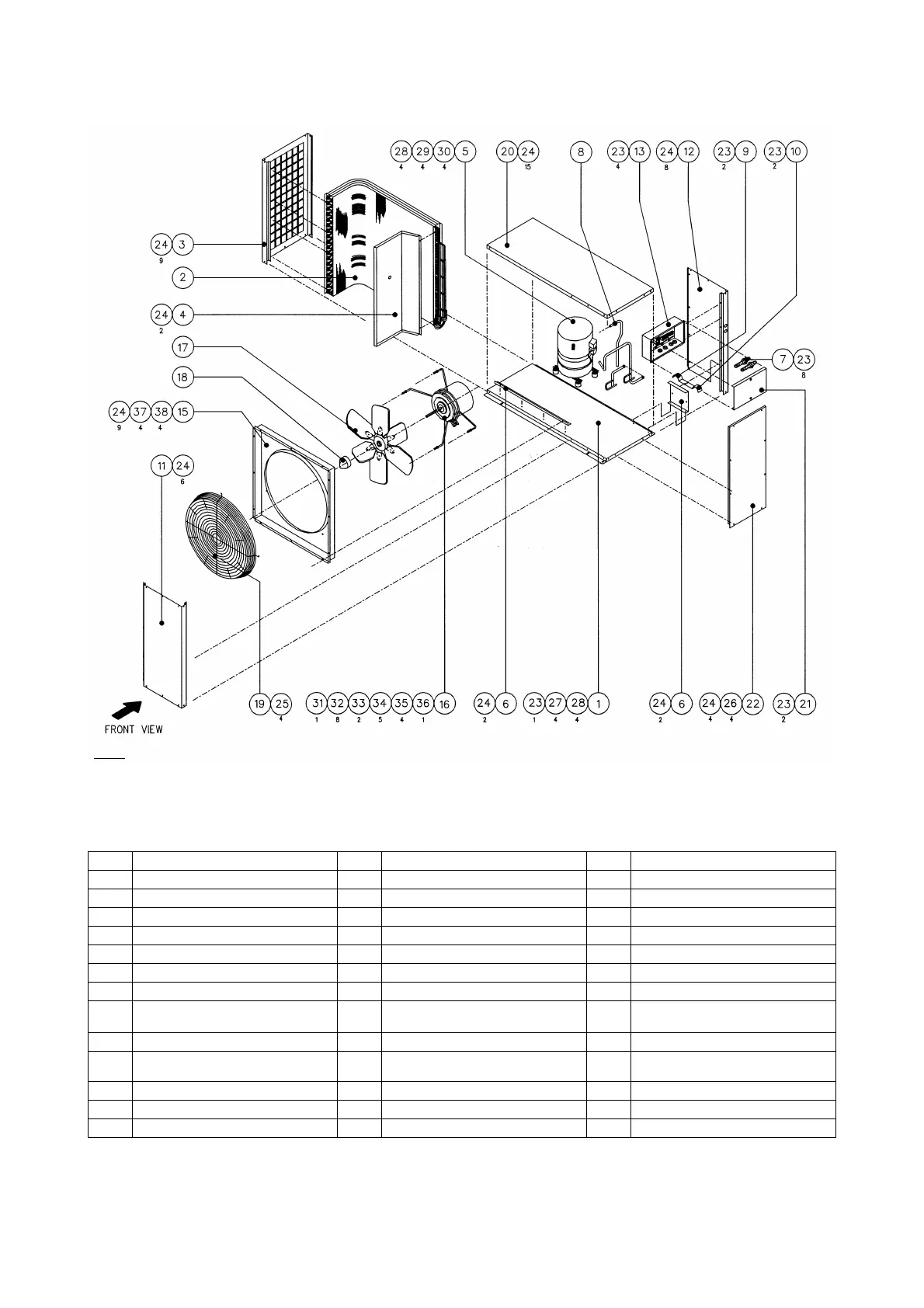

MODEL : MMC 100C
NO DESCRIPTION NO DESCRIPTION NO DESCRIPTION
1 ASSY., BASE PAN 14 STRUCTURE, ORIFICE SUPPORT 27 SCREW, WOOD
2 ASSY., COIL 15 ASSY., PANEL ORIFICE 28 WASHER, PLAIN
3 PANEL FRONT LEFT 16 ASSY., MOTOR 29 WASHER, SPRING
4 ASSY., PANEL PARTITION 17 FAN BLADE 30 NUT, HEXAGON
5 ASSY., COMPRESSOR 18 CAP, FOR FAN BLADE 31 BOLT, HEXAGON
6 PANEL, VALVE 19 FAN GUARD 30” 32 WASHER, ISOLATOR
7 ASSY., ACCESS VALVE 20 PANEL, TOP 33 WASHER, PLAIN
8 ASSY., UNIT TUBING 21
PANEL, TERMINAL BOARD
COVER
34 WASHER, SPRING
9
CLAMP, ∅
5
/
8
” LIQUID PIPE
22 ASSY., PANEL SERVICE 35 NUT, HEXAGON
10
CLAMP, ∅ 1
1
/
8
” GAS PIPE
23
SCREW, S.T. TRUSS HEAD
PHILIP
36 NUT, HEXAGON
11 ASSY., PANEL FRONT RIGHT 24 SCREW, TRUSS HEAD PHILIP 37 ISOLATOR DURO 40
12 ASSY., PANEL BACK RIGHT 25 SCREW, TRUSS HEAD PHILIP 38 ISOLATOR SLEEVE
13 ASSY., TERMINAL BOARD MAIN 26 SCREW, SELF TAPPING
NOTE :
1) WITH COPELAND SCROLL COMPRESSOR
2) WITH HEADLINE FAN MOTOR
3) WITH AUTO RESET H/L PRESSURE SWITCH
4) WITH TORIN FAN BLADE
5) FOR 380-420V/3PH/50Hz
6) FOR EXPORT SPEC
To Next Page
