159

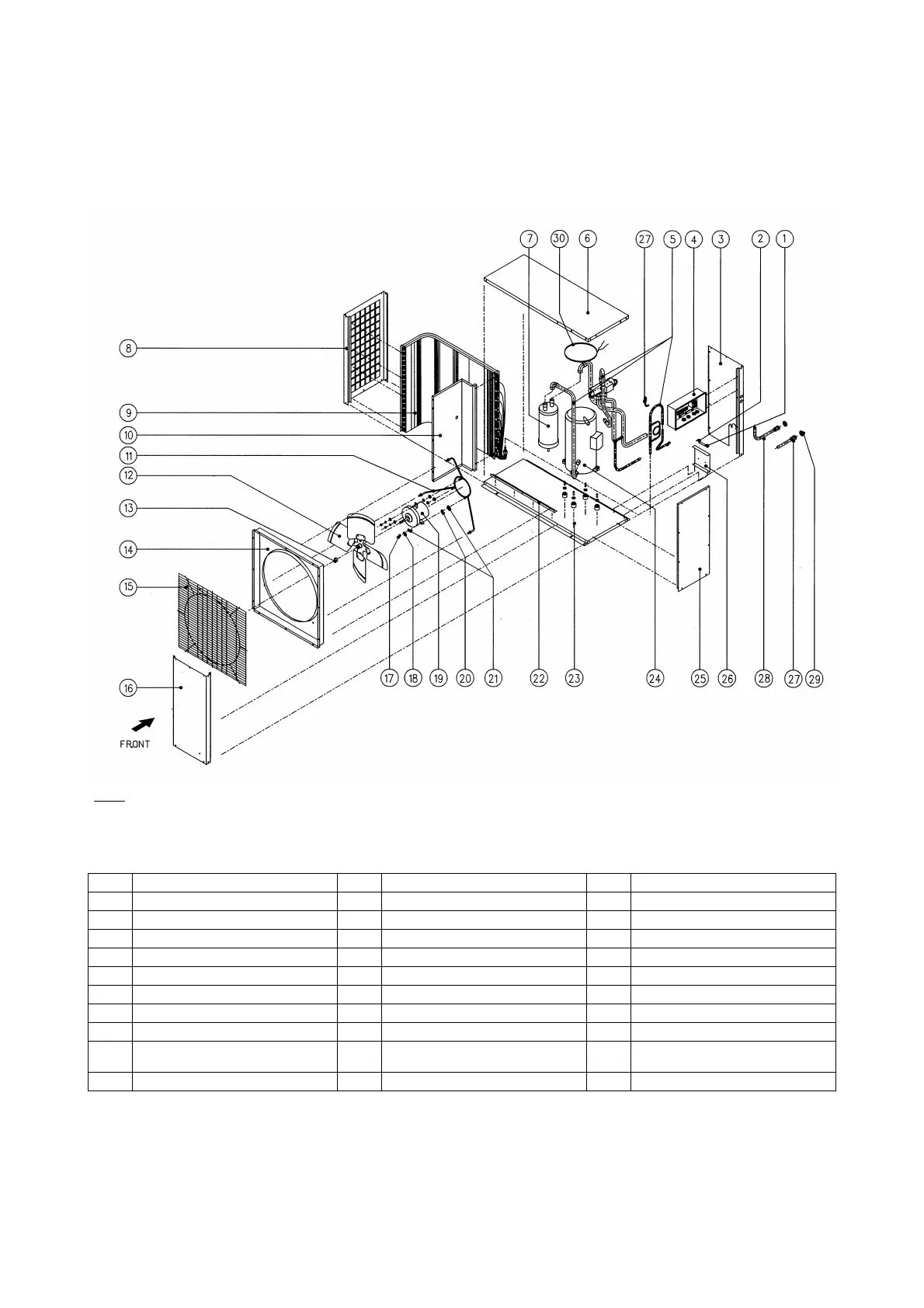

HEATPUMP MODEL
HORIZONTAL AIR DISCHARGE
MODEL : MMC075CR
NO DESCRIPTION NO DESCRIPTION NO DESCRIPTION
1 CLAMP, SUCTION TUBE 11 BRACKET, FAN MOTOR 26” 21 WASHER, PLAIN
2 CLAMP, LIQUID TUBE 12 FAN BLADE (TORIN) 22 PLATE, ORIFICE SUPPORT
3 STRUCTURE, BACK RIGHT 13 CAP, PLASTIC FOR FAN BLADE 23 ASSY., BASE PAN
4 ASSY., TERMINAL BOARD 14 PLATE, ORIFICE 24 ASSY., COMPRESSOR
5 ASSY., UNIT TUBING 15 GUARD, FAN 25 PANEL, SERVICE
6 PANEL, TOP 16 STRUCTURE, FRONT RIGHT 26 PLATE, VALVE
7 ACCUMULATOR 17 NUT HEXAGON –
3
/
8
” 27 VALVE, ACCESS
8 STRUCTURE, FRONT LEFT 18 WASHER, SPRING 28 VALVE, LIQUID ACCESS
9 ASSY., COIL 19 FAN MOTOR 29
PLATE, ACCESS VALVE
MOUNTING
10 ASSY., PARTITION 20 WASHER, RUBBER SHEET 30 HEATER, CRANKCASE
NOTE :
1) WITH COPELAND SCROLL COMPRESSOR
2) WITH HEADLINE FAN MOTOR
3) FOR 380-420V/3PH/50Hz
4) FOR EXPORT SPEC
