160

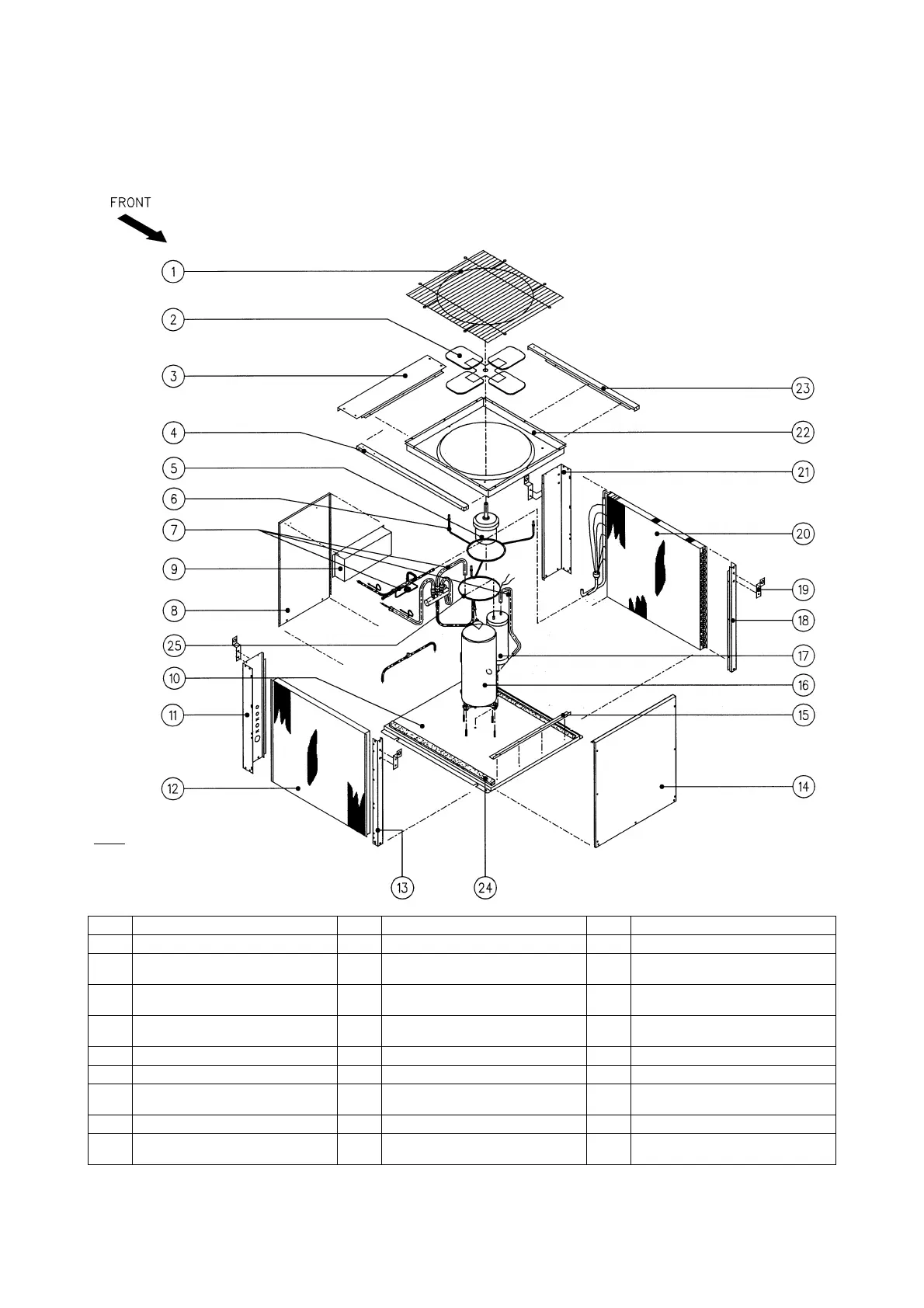

VERTICAL AIR DISCHARGE
MODEL : MMC100BR
NO DESCRIPTION NO DESCRIPTION NO DESCRIPTION
1 GUARD, FAN 10 ASSY., BASE PAN 19 HOISTING BRACKET
2 FAN BLADE 11
ASSY., STRUCTURE FRONT
RIGHT WELD NUT
20 ASSY., COIL LEFT
3 PANEL, TOP FRONT 12 ASSY., COIL RIGHT 21
ASSY., STRUCTURE FRONT LEFT
WELD NUT
4 STRUCTURE, TOP RIGHT 13
ASSY., STRUCTURE BACK RIGHT
WELD NUT
22 PLATE, ORIFICE
5 FAN MOTOR 14 PANEL, TOP OR BACK 23 STRUCTURE, TOP LEFT
6 BRACKET, FAN MOTOR 15 SUPPORT, ORIFICE PLATE 24 INSULATION, SEPARATOR
7 ASSY., UNIT TUBING 16
ASSY., COMPRESSOR ZR125KC-
TFD-501
25 HEATER, CRANKCASE
8 PANEL, FRONT 17 ACCUMULATOR, SUCTION
9 ASSY., TERMINAL BOARD 18
ASSY., STRUCTURE BACK LEFT
WELD NUT
NOTE :
1) WITH COPELAND SCROLL COMPRESSOR
2) WITH HEADLINE FAN MOTOR
3) FOR VERTICAL AIR DISCHARGE
4) FOR 380-420V/3PH/50Hz
5) FOR EXPORT SPEC
