McQuay MMC100D User Manual

138

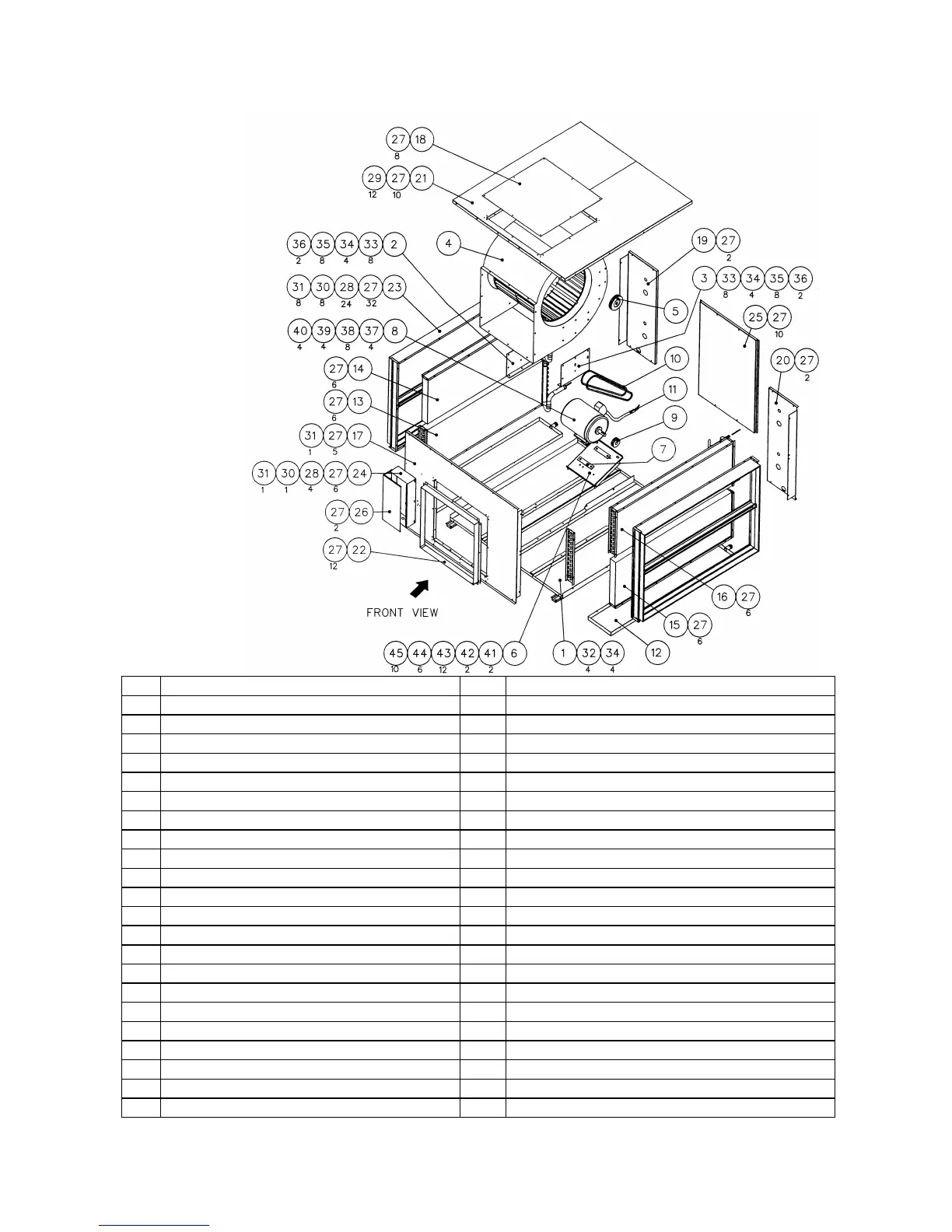

MODEL : MDB 400D4 (HORIZONTAL AIR DISCHARGE)
1 ASSY, BASE PAN INS. 23 ASSY, SECTION FILTER
2 SUPPORT, BLOWER LEFT 24 ASSY, TERMINAL BOX
3 SUPPORT, BLOWER RIGHT 25 ASSY, PANEL SERVICE INS.
4 ASSY, BLOWER HOUSING 26 COVER, TERMINAL BOX
5 PULLEY, BLOWER 27 SCREW, S.T.TRUSS HEAD PHILIP
6 BASE, MOTOR UPPER 28 SCREW, SELF TAPPING PAN HEAD
7 RUBBER SHEET 29 SCREW, TRUSS HEAD PHILIP
8 MOTOR 30 SCREW, TRUSS HEAD PHILIP
9 PULLEY, MOTOR 31 NUT, WELD
10 V-BELT 32 SCREW, WOOD
11 ASSY, FAN MOTOR HARNESS WIRE 33 BOLT, HEXAGON
12 ASSY, DRAIN PAN INS. 34 WASHER, PLAIN
13 ASSY, COIL LEFT LOWER 35 WASHER, SPRING
14 ASSY, COIL LEFT UPPER 36 NUT, HEXAGON
15 ASSY, COIL RIGHT LOWER 37 BOLT, HEXAGON
16 ASSY, COIL RIGHT UPPER 38 WASHER, PLAIN
17 ASSY, PANEL FRONT INS. 39 WASHER, SPRING
18 COVER, BLOWER 40 NUT, HEXAGON
19 ASSY, PANEL HEADER LEFT INS. 41 BOLT, HEXAGON
20 ASSY, PANEL HEADER RIGHT INS. 42 BOLT, ADJUSTING
21 ASSY, TOP PANEL INS. 43 WASHER, PLAIN
22 ASSY, FLANGE BLOWER 44 WASHER, SPRING
45 NUT, HEXAGON
NOTE :
1) WITH SEQUENTIAL CONTROLLER
2) HORIZONTAL AIR DISCHARGE
