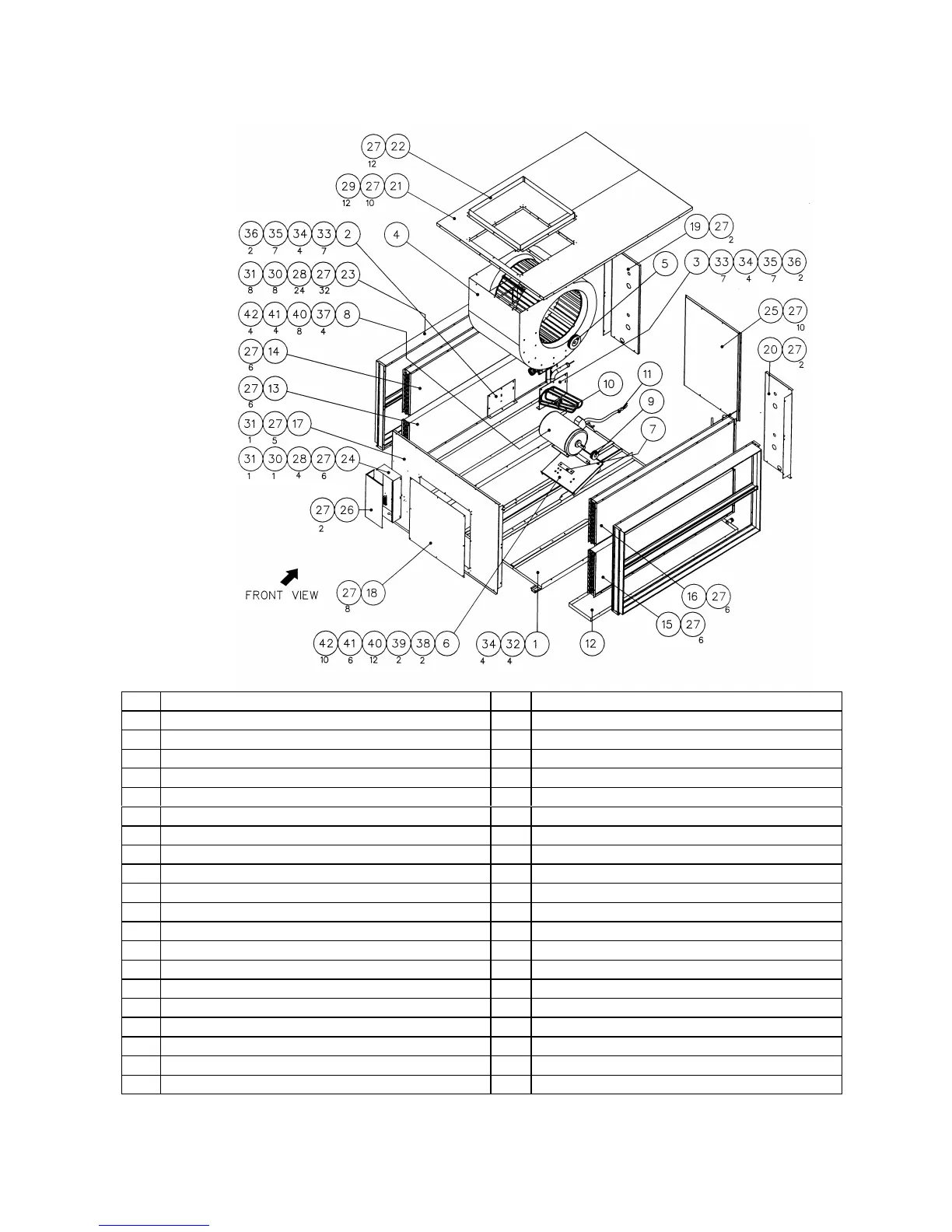

MODEL : MDB 500D4 (VERTICAL AIR DISCHARGE)
1 ASSY, BASE PAN INS. 22 ASSY, FLANGE BLOWER
2 SUPPORT, BLOWER LEFT 23 ASSY, SECTION FILTER
3 SUPPORT, BLOWER RIGHT 24 ASSY, TERMINAL BOX
4 ASSY, BLOWER HOUSING 25 ASSY, PANEL SERVICE INS.
5 PULLEY, BLOWER 26 COVER, TERMINAL BOX
6 BASE, MOTOR UPPER 27 SCREW, S.T.TRUSS HEAD PHILIP
7 RUBBER SHEET 28 SCREW, SELF TAPPING PAN HEAD
8 MOTOR 29 SCREW, TRUSS HEAD PHILIP
9 PULLEY, MOTOR 30 SCREW, TRUSS HEAD PHILIP
10 V-BELT 31 NUT, WELD
11 ASSY, FAN MOTOR HARNESS WIRE 32 SCREW, WOOD
12 ASSY, DRAIN PAN INS. 33 BOLT, HEXAGON
13 ASSY, COIL LEFT LOWER 34 WASHER, PLAIN
14 ASSY, COIL LEFT UPPER 35 WASHER, SPRING
15 ASSY, COIL RIGHT LOWER 36 NUT, HEXAGON
16 ASSY, COIL RIGHT UPPER 37 BOLT, HEXAGON
17 ASSY, PANEL FRONT INS. 38 BOLT, HEXAGON
18 COVER, BLOWER 39 BOLT, ADJUSTING
19 ASSY, PANEL HEADER LEFT INS. 40 WASHER, PLAIN
20 ASSY, PANEL HEADER RIGHT INS. 41 WASHER, SPRING
21 ASSY, TOP PANEL INS. 42 NUT, HEXAGON
NOTE :
1) WITH SEQUENTIAL CONTROLLER
2) VERTICAL AIR DISCHARGE
