11 Instructions of the Unit Installation

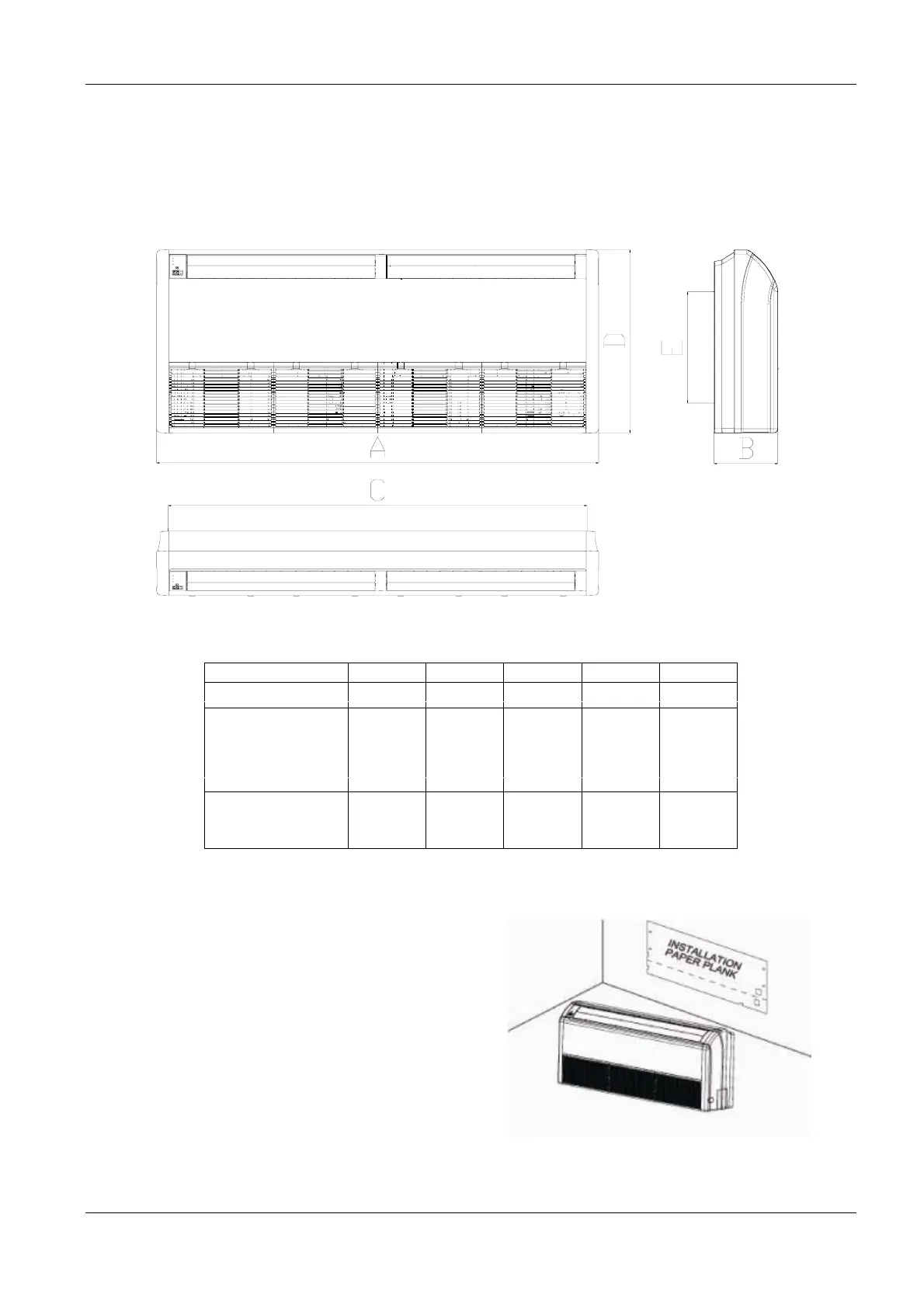

11.1 Installation of the Indoor Unit
When installing the indoor unit, you can use a paper pattern for reference and make sure that the drainage side
is 10mm lower than the other side in order to drain the condensation water fluently.
Fig. 11-1
Unit：mm
Model A B C D E
1220 225 1158 700 280
1420 245 1354 700 280
1700 245 1634 700 280
Cautions for Installation Where Air Conditioner Trouble is Likely to Occur
z Where there is too much oil.
z Where it is an acid base area.
z Where there is irregular electrical supply.
Fig. 11-2
MQS-24018-CFC216A
MQS-24024-CFC216A
MQS-24030-CFC216A
MQS-24036-CFC216A
MQS-24048-CFC216A
MQS-24060-CFC216A
