McQuay MWM 007F

Model : MLC 020BR / 025BR / 030BR
M4LC 020BR / 025BR

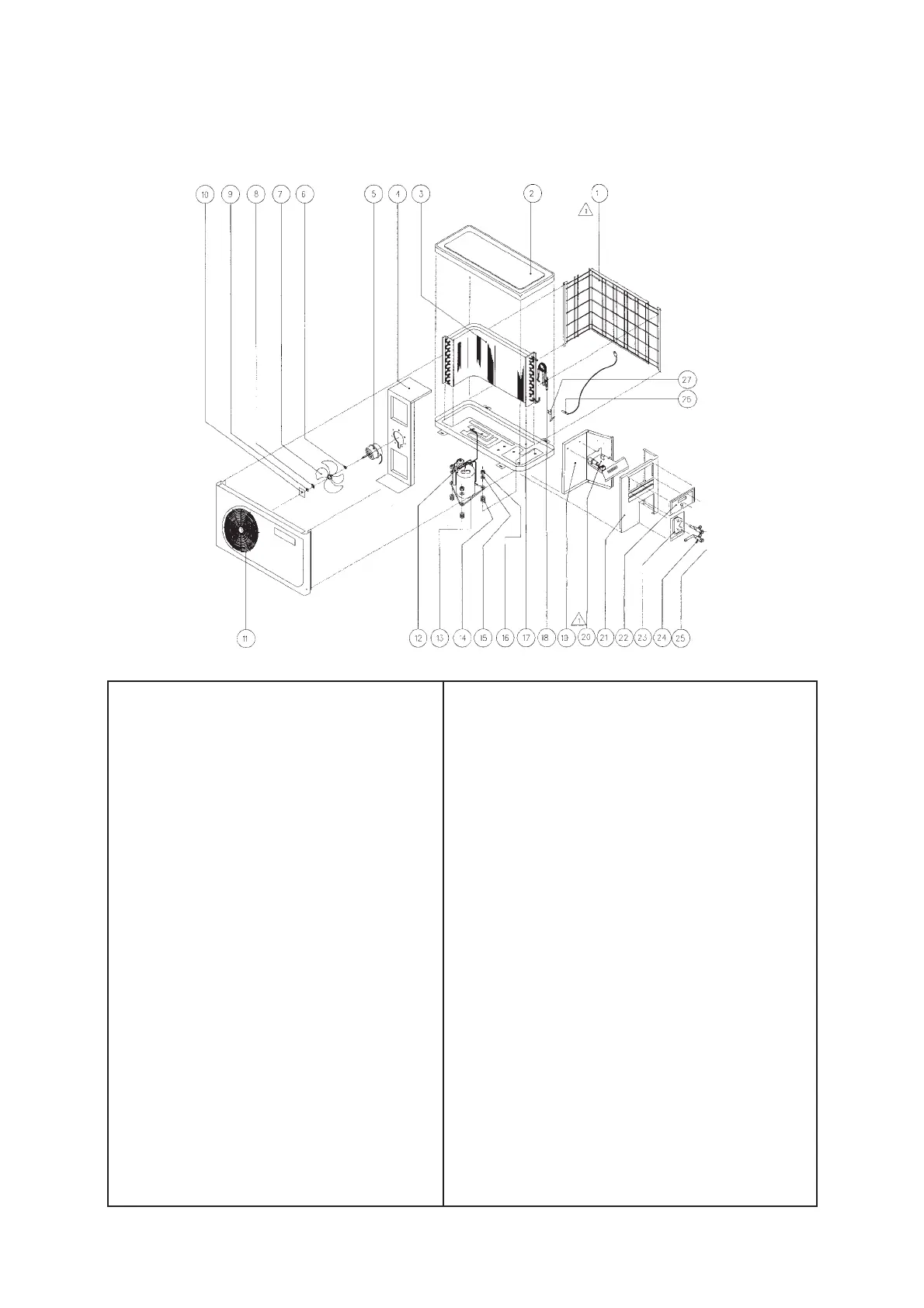

1. ASSY., BACK PANEL 15. WASHER, FLAT
2. ASSY., TOP PANEL 16. NUT, COMPRESSOR
3. ASSY, COIL OUTDOOR 17. ASSY., BASE PAN
4. BRACKET, MOTOR MOUNTING 18. ASSY., CAPILLARY TUBE
5. FAN MOTOR 19. ASSY., PARTITION
6. WASHER, RING 20. ASSY., TERMINAL BOX PANEL
7. FAN, 16" 21. ASSY. SIDE PANEL
8. WASHER, SQUARE 22. ASSY., ACCESS PANEL
9. NUT, HEX 3/8" 23. PLATE, FLARE JOINT VALVE
10. BLACK LABEL 24. VALVE, SUCTION
11. ASSY., PANEL FRONT 25. VALVE, LIQUID
12. ASSY., 4 WAY VALVE 26. SENSOR, OUTDOOR DEFROST
13. ROTARY COMPRESSOR 27. CLIP, COIL SENSOR
14. RUBBER, GROMMET
