CAUTION: Before installing the unit, ensure that the power supply matches the power requirement of the
air conditioner.
1) Selection Of Location And Space
(A) INDOOR UNIT
Install the fan coil (indoor) unit at a location with the following requirements
· Location is suitable for wiring, piping and drainage.

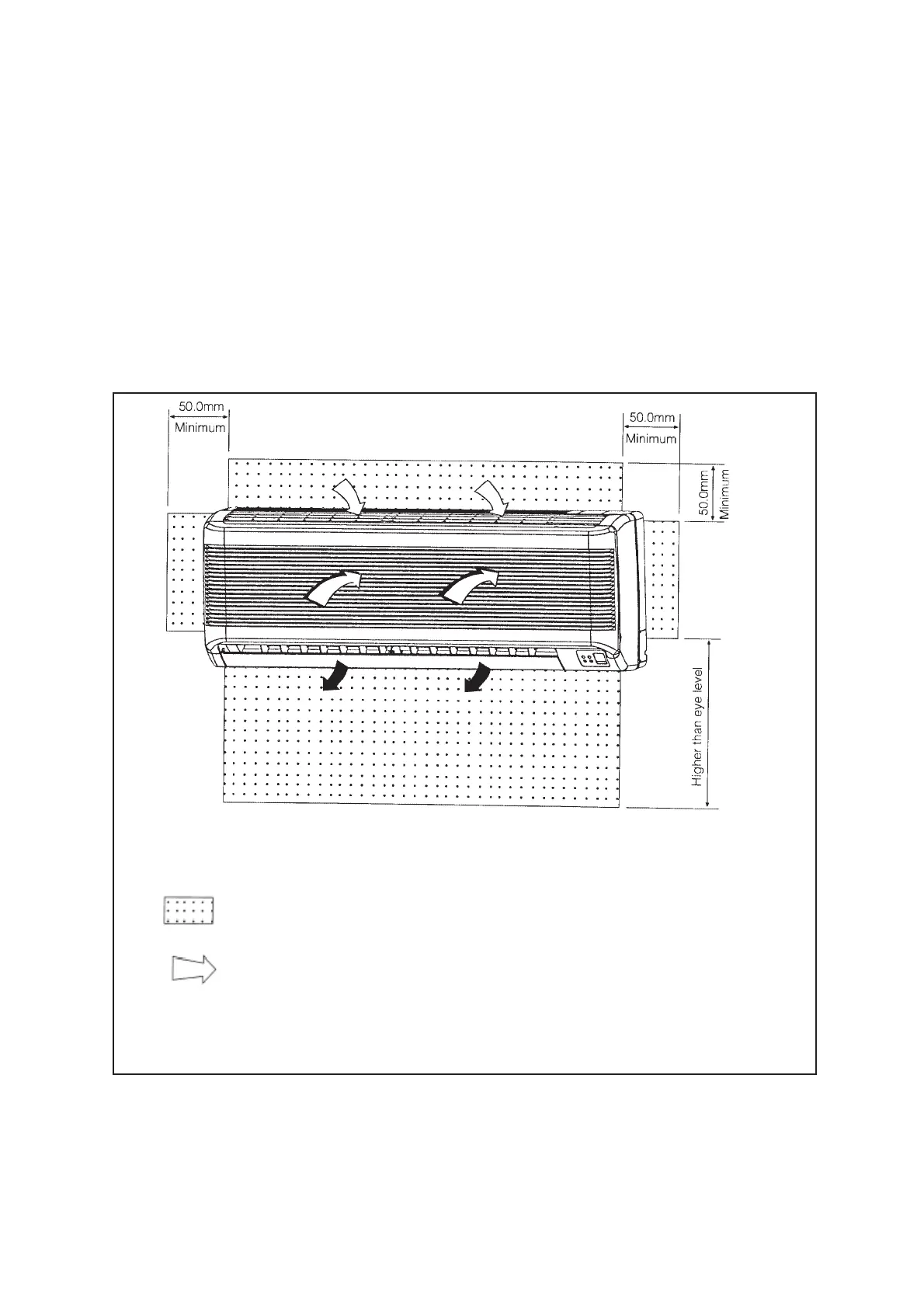

· No obstruction of air flow into and out of unit where cooler air can be evenly distributed.(See fig. 1)
· Ensure that air discharge is not short circuited with air intake.
· Ensure that wall is sufficiently strong, rigid, flat, perpendicular and vibration free.
· Where air filter cassette can be slided in or out easily.
· Where there is no danger of flammable gases.
· Where there is no direct sunlight on unit.
· Also to take into consideration a place for the installation of the Wireless LCD Remote Controller.
MAINTENANCE & SERVICING SPACE
AIR FLOW DIRECTION
CAUTION : Do not install unit near the door way
because excessive fresh air may cause
panel condensation on the unit.
Fig. 1
