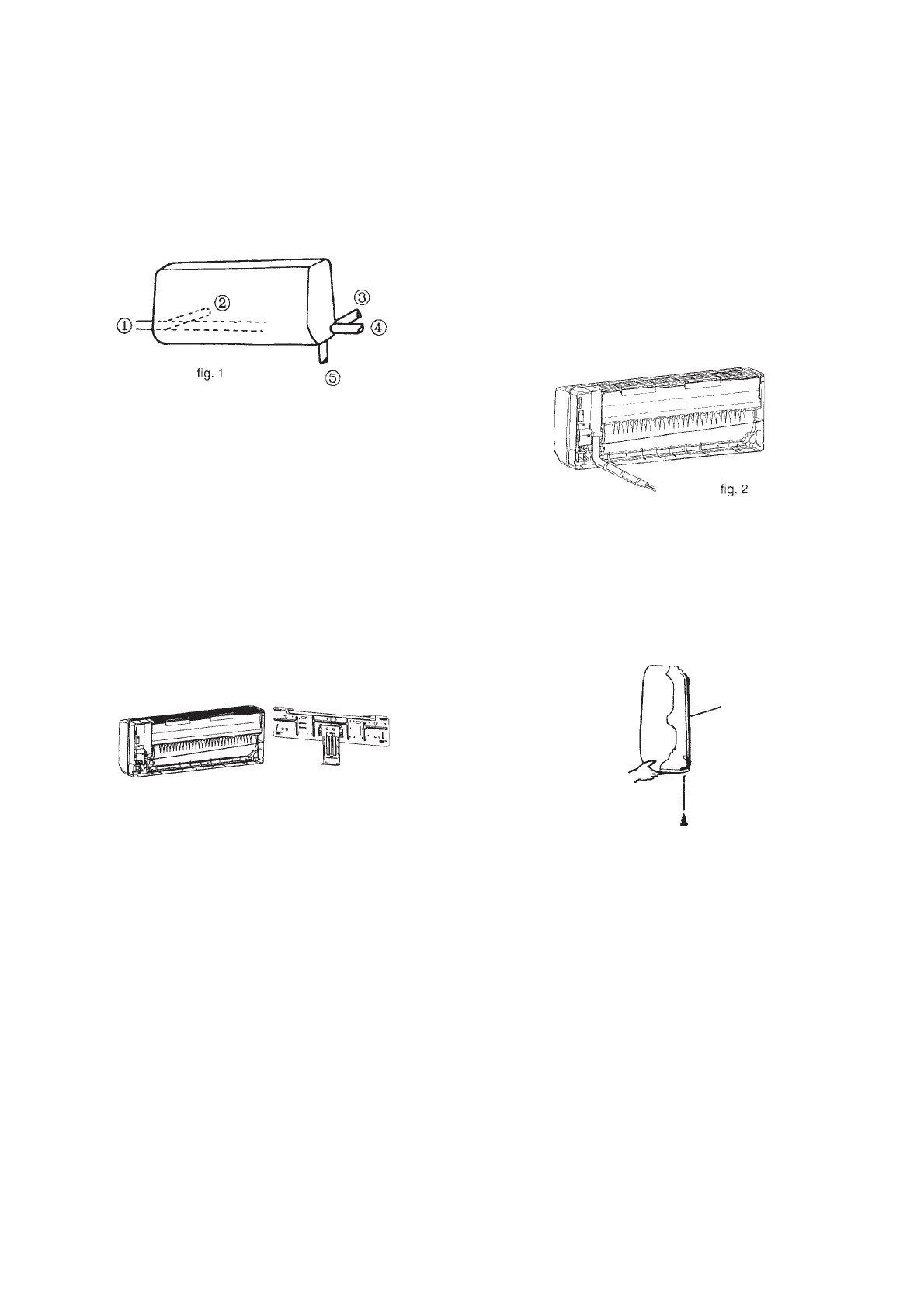

• Carefully bend the pipes to the required
position to align with the hole. For right
hand and rear side draw out, hold the
bottom of the piping and fix direction
before shaping it to the desired position
(See fig. 2). The condensation drain hose
should be taped to the pipes with vinyl
tape. The electrical cable can also be
taped to the pipes.
• The refrigerant piping can be routed to
the unit in 5 direction, by using the cut
outs in the unit casing. (See fig. 1)
3) Indoor Unit Preparation
4) Mounting Indoor Unit
Hook the indoor unit onto the upper portion of installation plate. (Engage the 2 hooks of rear top of the
indoor unit with the upper edge of the installation plate). Ensure the hooks are properly seated on the
installation plate by moving in left and right.
1. Hook the unit into the
installation plate.
2. Fix the rivet underneath
after completion of
installation.
77
