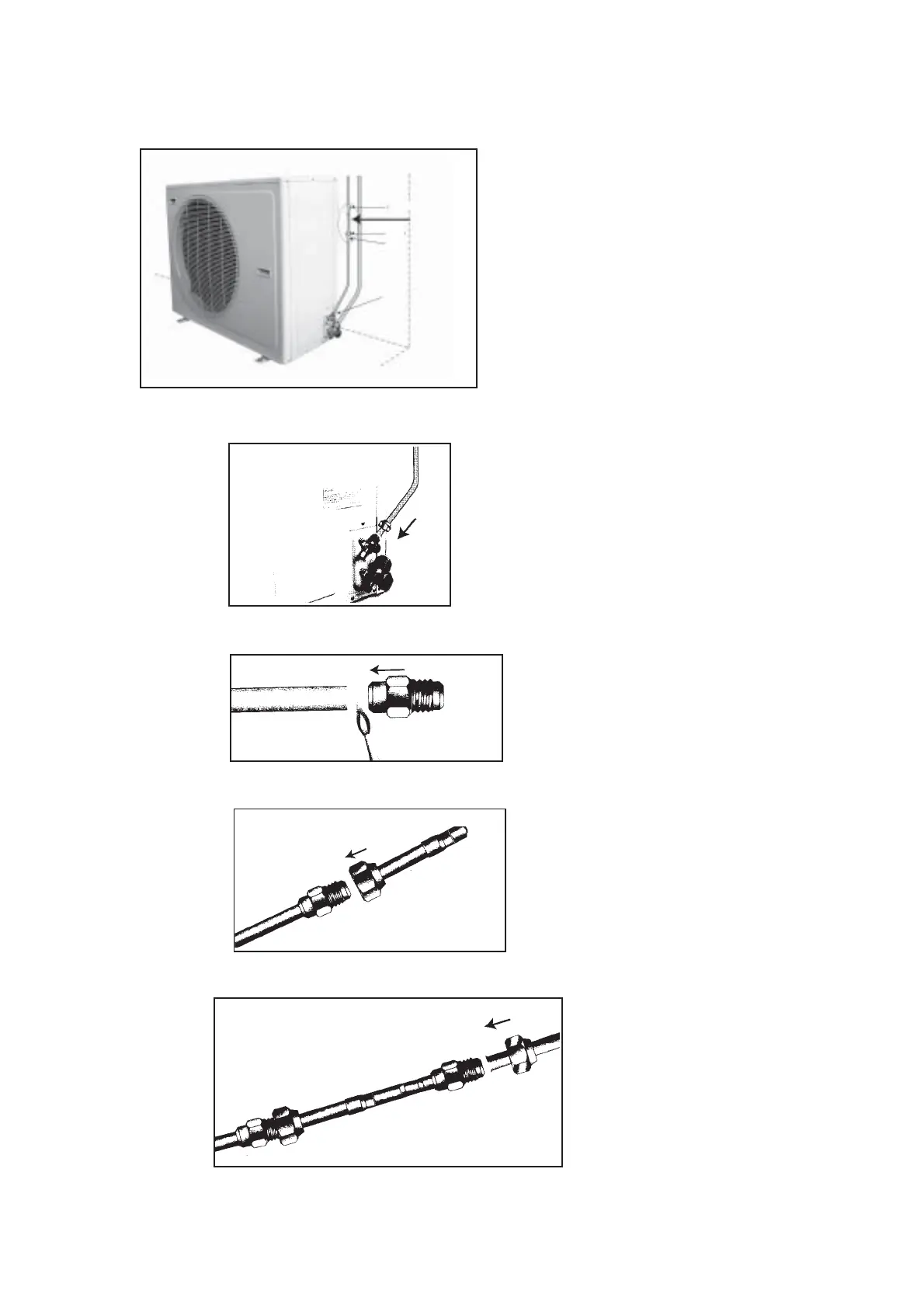

ii) Outdoor Installation Space Is Limited
If the orifice pipe cannot be connected
directly to the liquid valve due to limitation
space, it can be connected between the liquid
pipes.
Steps :
a) Flare the liquid pipe and connect it to the liquid valve.
b) Braze an addition “Male” joint to the liquid pipe.
c) Connect the “Female” nut of the orifice pipe to the “Male” joint.
d) Flare another liquid pipe and connect it to the “Male” joint of the orifice pipe.
80
Orifice Pipe
Liquid Pipe
Orifice Pipe
Liquid Pipe
Liquid Pipe
Buzzer
Step 4
Orifice Pipe
Step 3
Step 2
Step 1
To Next Page
