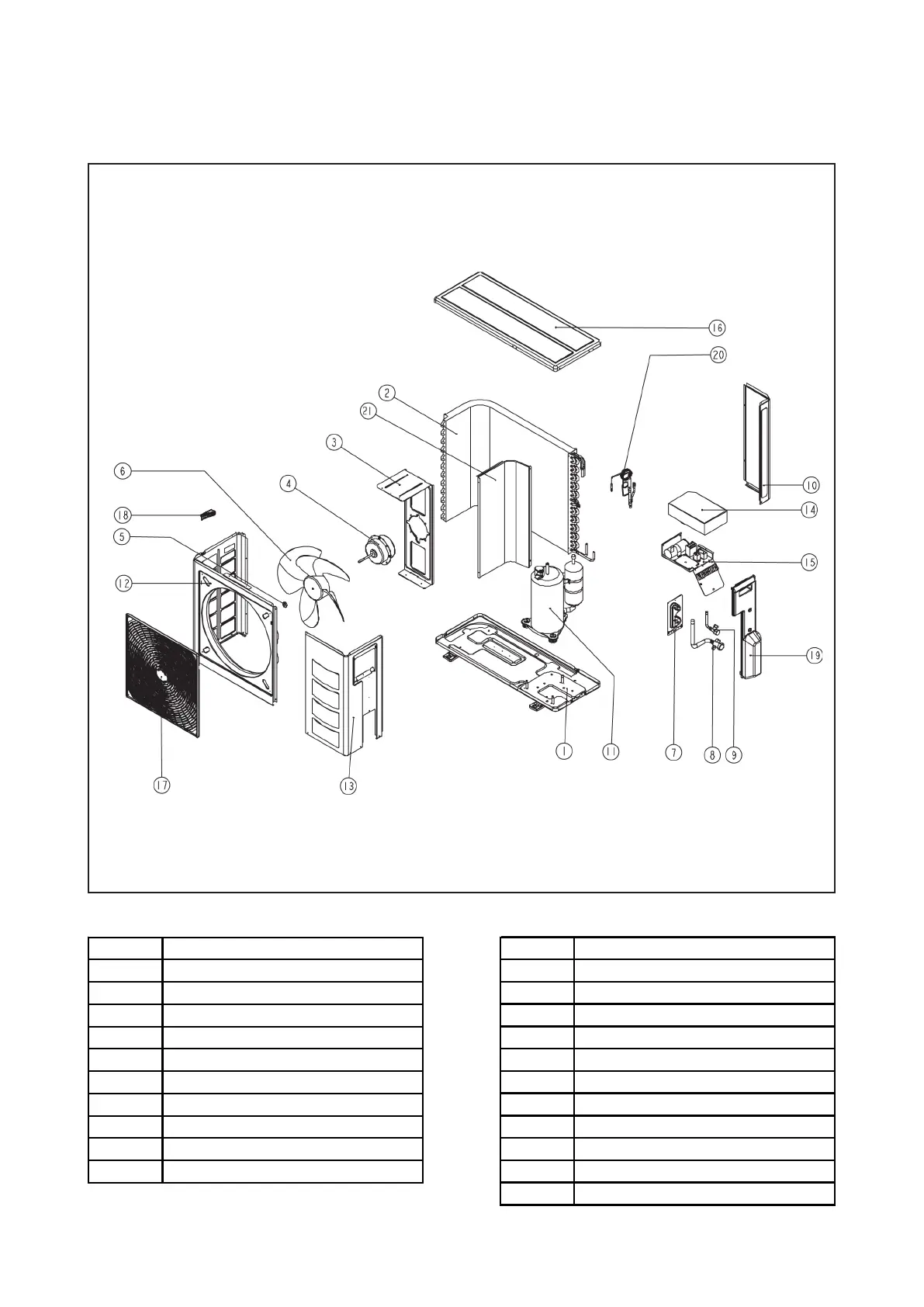

Model: M5LC / MLC 020C
No. Description No. Description
1 Assy. Base Pan 11 Compressor
2 Assy. Outdoor Coil 12 Front Panel (Left)
3 Motor Bracket 13 Service Panel
4 Fan Motor 14 Terminal Cover Panel
5 Nut, Fan Motor Hex Lock 15 Assy. Terminal Panel
6 Fan Blade 16 Top Panel
7 Valve Bracket 17 Front Grille
8 Assy., Flare Valve 3 Ways 5/8" 18 Handle
9 Assy., Flare Valve 2 Ways 1/4" 19 Assy. Valve Cover
10 Back Panel (Right) 20 Assy. Cap Tube
21 Assy. Partition
