MDL POWERUP A80 - Parts Lists; Component Identification

Page 36

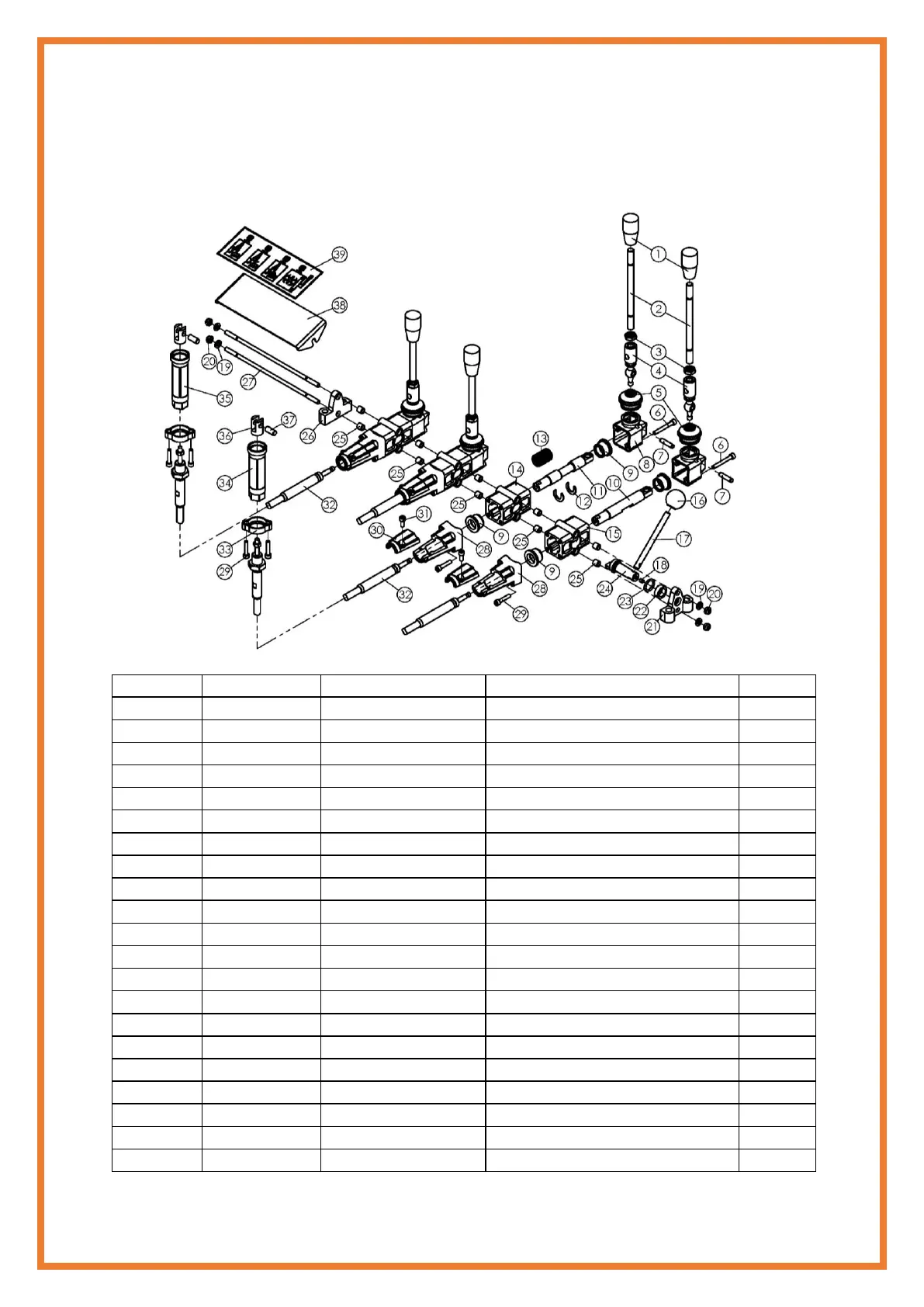

Control assembly
No.
Article no.
Part no.
Name&spec
QTY
1
702830121
BH-6.07.091
short hand shank
4
2
702910335
MBH-6.08.108
Joystick(short)
4
3
503010099
GB6172.1-M10
Thin nut
4
4
702770020
AM60.01.120
Shifting block
4
5
702770019
AM60.01.119
Protecting bush
4
6
505011396
GB70.1-M5X40
hexagon socket cap screw
8
7
508010099
GB119.1-B-6X26
B cylindrical pin
4
8
702770015
AM60.01.114
Upper cover
4
9
702770010
AM60.01.109
Flange bush
8
10
702770216
AM60.01.118A
Pull rod 2
1
11
702770213
AM60.01.111A
Pull rod 1
3
12
702770022
AM60.01.122
Check ring
6
13
702770011
AM60.01.110
Release spring
3
14
702770014
AM60.01.113
shell
3
15
702770017
AM60.01.117
Lock hole shell
1
16
702770171
AM60.04.092
Bulb hand shank
1
17
702770008
AM60.01.107
Lock joystick
1
18
505020541
GB78-M5X8
inner hexagon set screw
1
19
506010054
GB97.1-6
Plain washer
4
20
503010759
DIN985-M6
hexagon locking thin nut
4
21
702770006
AM60.01.105
fixed seat 2
1
