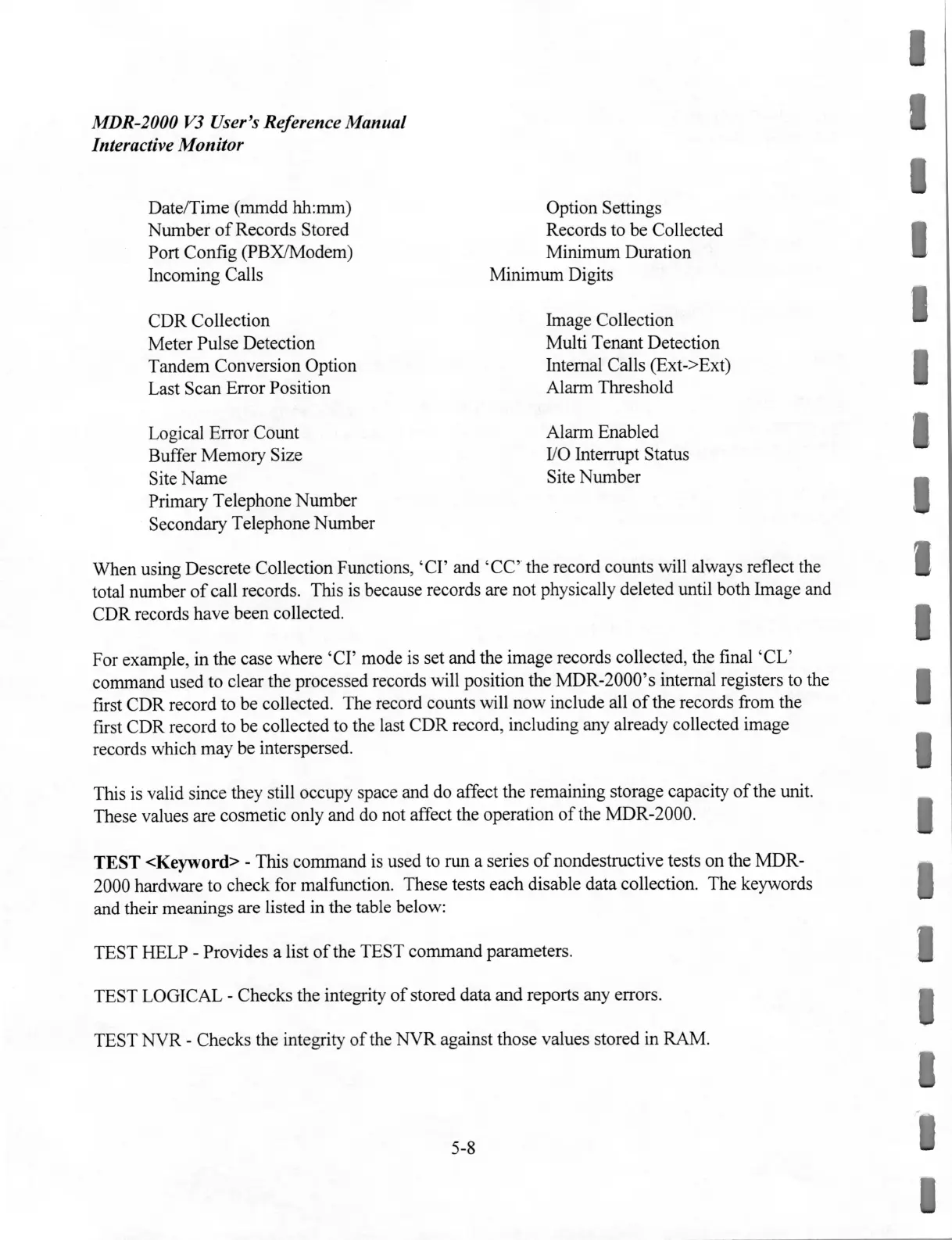

MDR-2000 VJ User's Reference Manual
Interactive Monitor
Date/
Time
(mmdd hh:mm)
Number
of
Records Stored
Port Config (PBX/Modem)
Incoming Calls
CDR
Collection
Meter Pulse Detection
Tandem Conversion Option
Last Scan Error Position
Logical Error Count
Buffer Memory Size
Site
Name
Primary Telephone Number
Secondary Telephone Number
Option Settings
Records to be Collected
Minimum Duration
Minimum Digits
Image Collection
Multi Tenant Detection
Internal Calls (Ext->Ext)
Alarm Threshold
Alarm Enabled
VO Interrupt Status
Site Number
When using Descrete Collection Functions, 'CI' and
'CC
' the record counts will always reflect the
total number
of
call records. This is because records are not physically deleted until both Image and
CDR
records have been collected.
For example, in the case where 'CI' mode is set and the image records collected, the final 'CL'
command used to clear the processed records will position the MDR-2000's internal registers to the
first
CDR
record to be collected. The record counts will
now
include all
of
the records from the
first
CDR
record to be collected to the last
CDR
record, including any already collected image
records which
ma
y be interspersed.
This is valid since they still occupy space and do affect the remaining storage capacity
of
the unit.
These values are cosmetic only and do not affect the operation
of
the MDR-2000.
TEST
<Keyword>
- This command is used to run a series
of
nondestructive tests on the MDR-
2000 hardware to check for malfunction. These tests each disable data collection. The keywords
and their meanings are listed in the table below:
TEST HELP - Provides a list
of
the TEST command parameters.
TEST LOGICAL - Checks the integrity
of
stored data and reports any errors.
TEST
NVR
- Checks the integrity
of
the
NVR
against those values stored in RAM.
