GB
18
ENGLISH
Thread the connection cable from the back through the cable entry points (9)
into the housing. Use the supplied screws to attach the rear housing to the wall.
Closing the Housing
Place the silicone seal with the nameplate(s) in the front housing and assemble
both onto the mounted rear housing. Screw both housing parts together with
the housing screws.
CONNECTION
This doorbell button provides a potential-free contact for each family to connect
a door chime. On the following pages, you will nd example connection dia-
grams for the respective models.

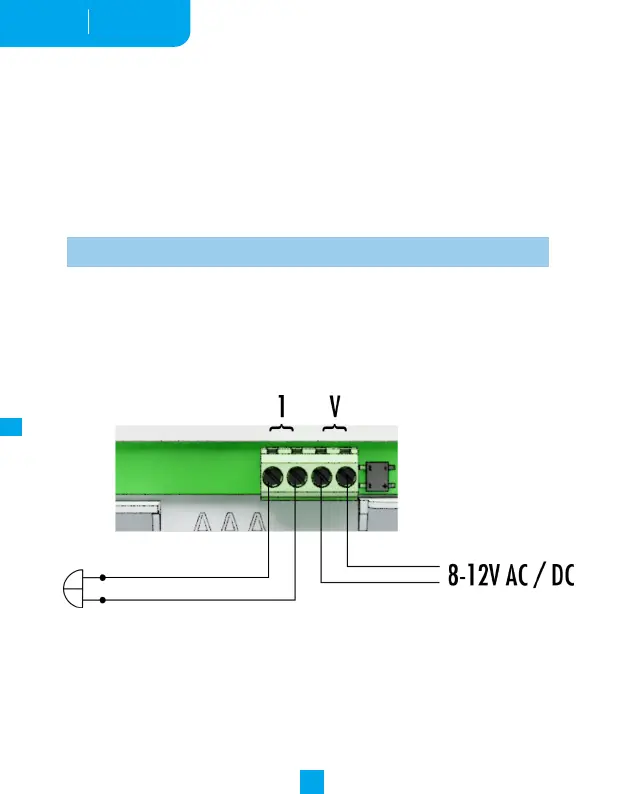

Example connection diagrams for KTF-1 (chime with battery):
KTF-1
KTF-2
KTF-3
