Meade 2045 - Page 4

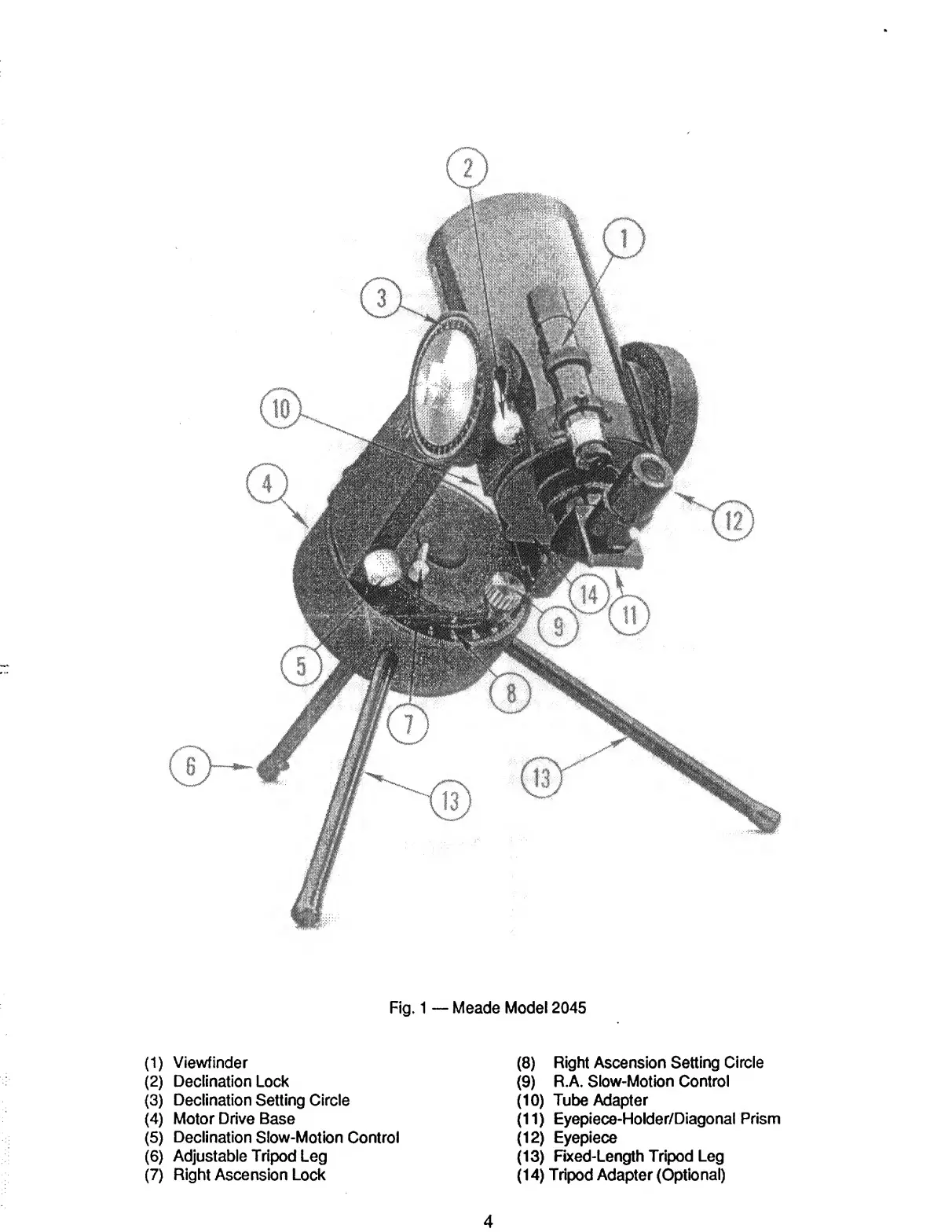

Fig. 1 — Meade Model 2045
(1) Viewfinder
(2) Declination Lock
(3) Declination Setting Circle
(4) Motor Drive Base
(5) Declination Slow-Motion Control
(6) Adjustable Tripod Leg
(7) Right Ascension Lock
(8) Right Ascension Setting Circle
(9) R.A. Slow-Motion Control
(10) Tube Adapter
(11) Eyepiece-Holder/Diagonal Prism
(12) Eyepiece
(13) Fixed-Length Tripod Leg
(14) Tripod Adapter (Optional)
