• Though the remote sensors are weather-resistant, they should
be placed away from direct sunlight, rain or snow. The optimal
location for the remote sensor outdoors is under the eaves on
the north side of the building.
REMOTE TEMPERATURE AND HUMIDITY SENSOR
(TS23C)
FEATURES
• Remote data transmission to the main unit via 433 MHz
frequency
• Three transmission channels
• Case can be wall mounted using built-in hanger

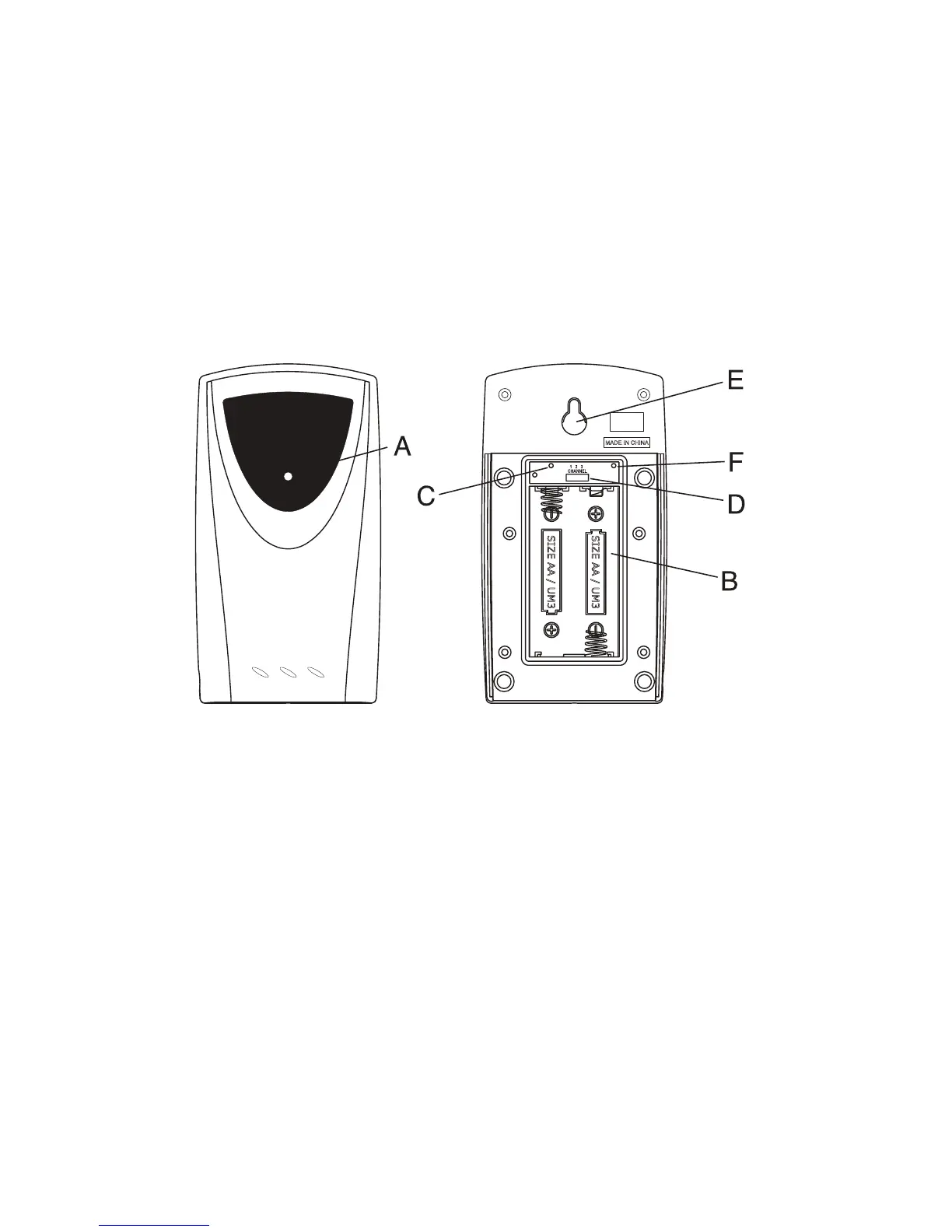

A. LED INDICATOR
• Flashes once about every 45 seconds with each transmission to
the main unit.
• Flashes twice when battery power is low.
B. BATTERY COMPARTMENT
• Holds two AA-size batteries
C. RESET
• Resets all previous settings
D. CHANNEL SWITCH
• Selects the desired channel: 1, 2 or 3
E. WALL-MOUNT RECESSED OPENING
• Mounts the remote sensor on the wall
4
