Step 13 – To check for clay flight and direction, fire the trap using the
ON/OFF/DISARM toggle switch exactly as before, and press and release the
DISARM toggle. This will fire one clay and will not rearm itself. Note – holding
the disarm toggle will continually fire clay targets. Please use caution!

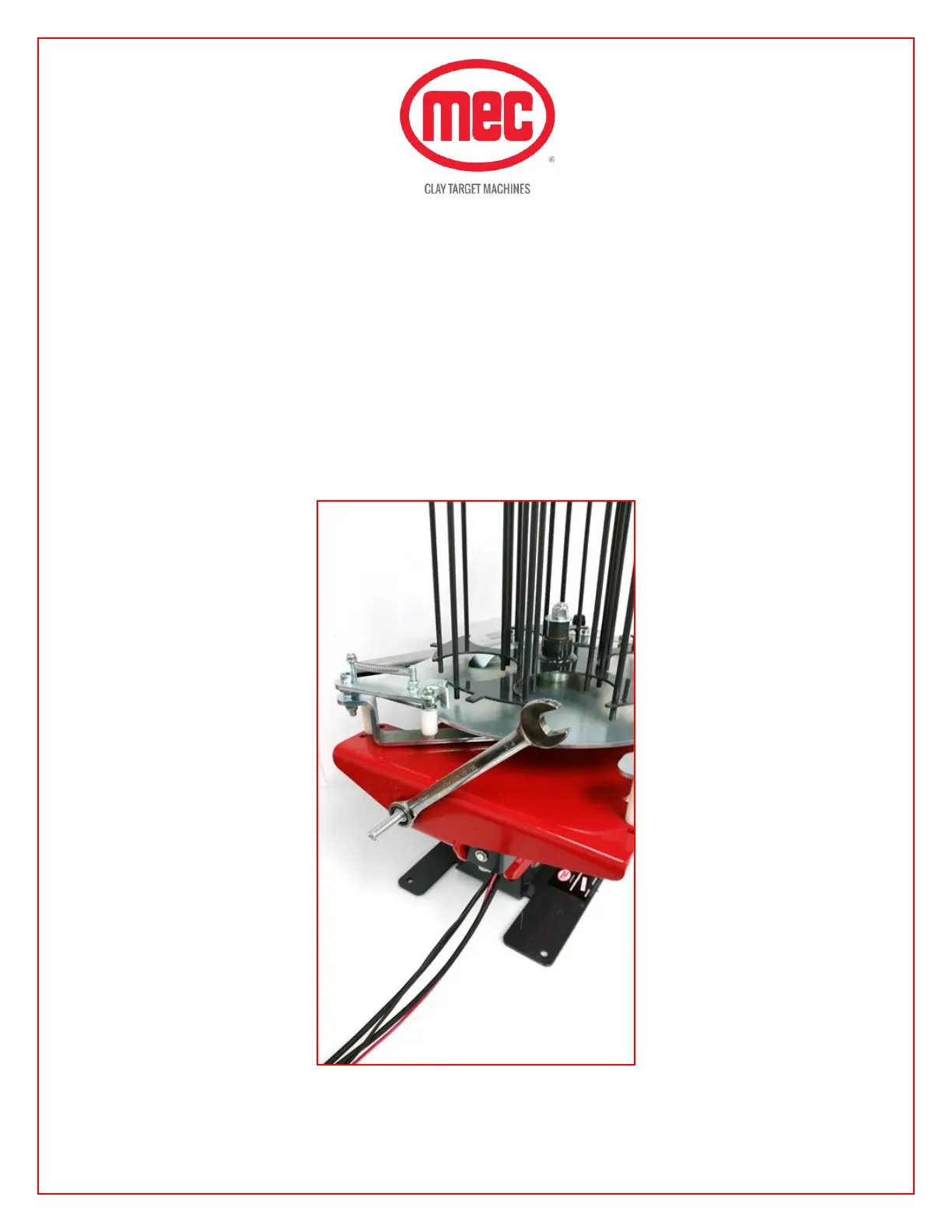

Step 14 – You can adjust the distance that the clay is thrown by extending the
spring. This is achieved by winding tension on or off the main spring using a ¾”
wrench or the optional ¾” extended socket, (which can be attached to an impact
drive) on the nut on the back of the machine, and a ¾” wrench on the flange nut
on opposite side of the frame. This should be done with the machine in the
disarmed/safe condition for small adjustments. After adjusting the main spring for
the correct throwing distance, the nuts on the spring stud must be tightened
securely against each other.
