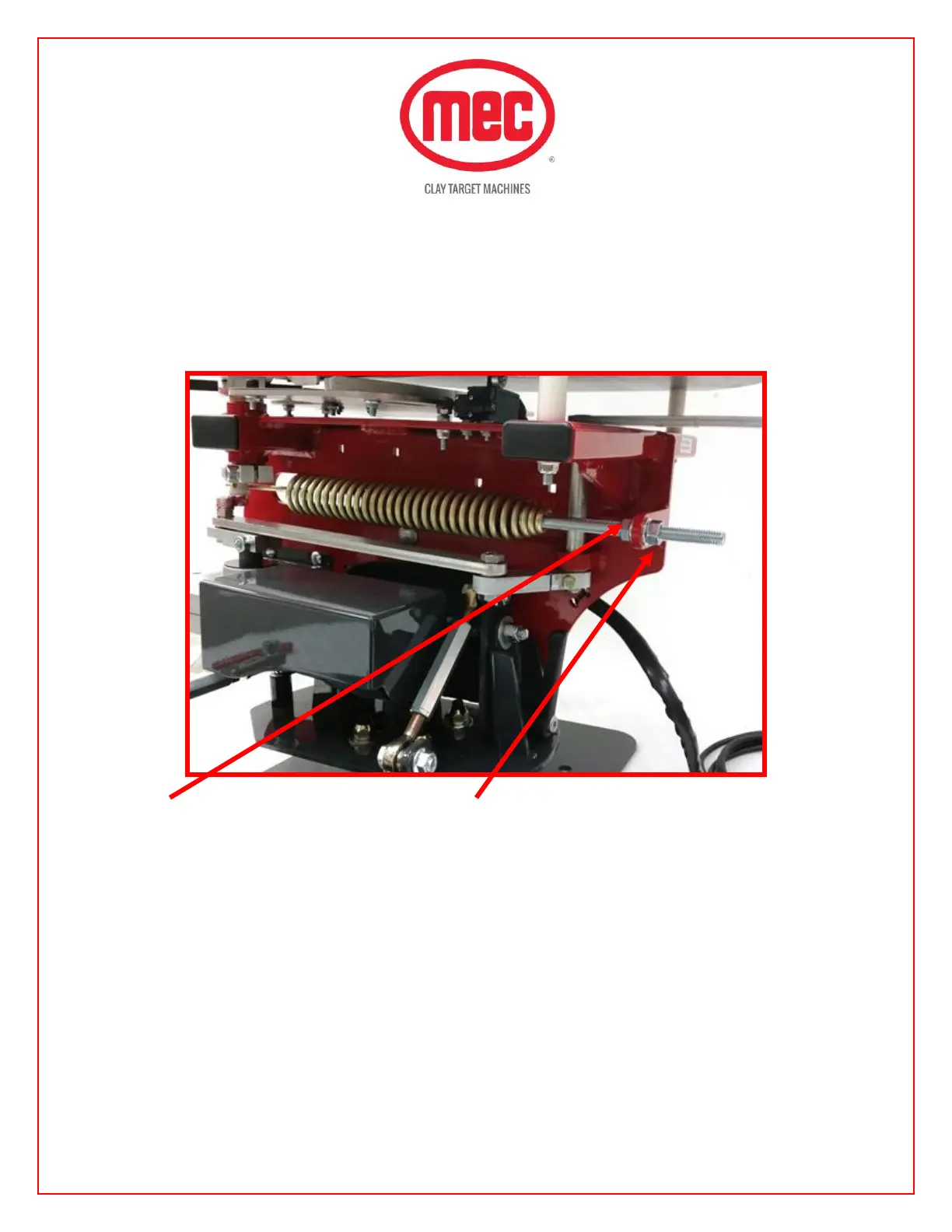

Step 15 – You can adjust the distance that the clay is thrown by extending the spring. This is
achieved by winding tension on or off the main spring using a ¾” wrench or the optional ¾” extended
socked which can be attached to an impact drive. This should be done with the machine in the
disarmed/safe condition for small adjustments. AFTER ADJUSTING THE MAIN SPRING FOR THE
CORRECT THROWING DISTANCE, THE NUTS ON THE SPRING STUD MUST BE TIGHTENED
SECURELY AGAINST EACH OTHER.
Step 16 – The pull cord or optional radio release can now be connected to the machine.
The hardwired or optional wireless release is connected through the yellow-ended cord plug.
Step 17 – Now that the machine is set to the correct ATA standards, carefully fully load the carousel
with clays, removing any clays that show signs of damage. Load clays as evenly as possible and do
not over load.
Step 18 – The machine can now ready for use by pressing the ARM/OFF/DISARM toggle switch,
down to the “ARM” position.
