Page 7 Version 2
ADJUSTING THE TILT/ANGLE OF THE MACHINE

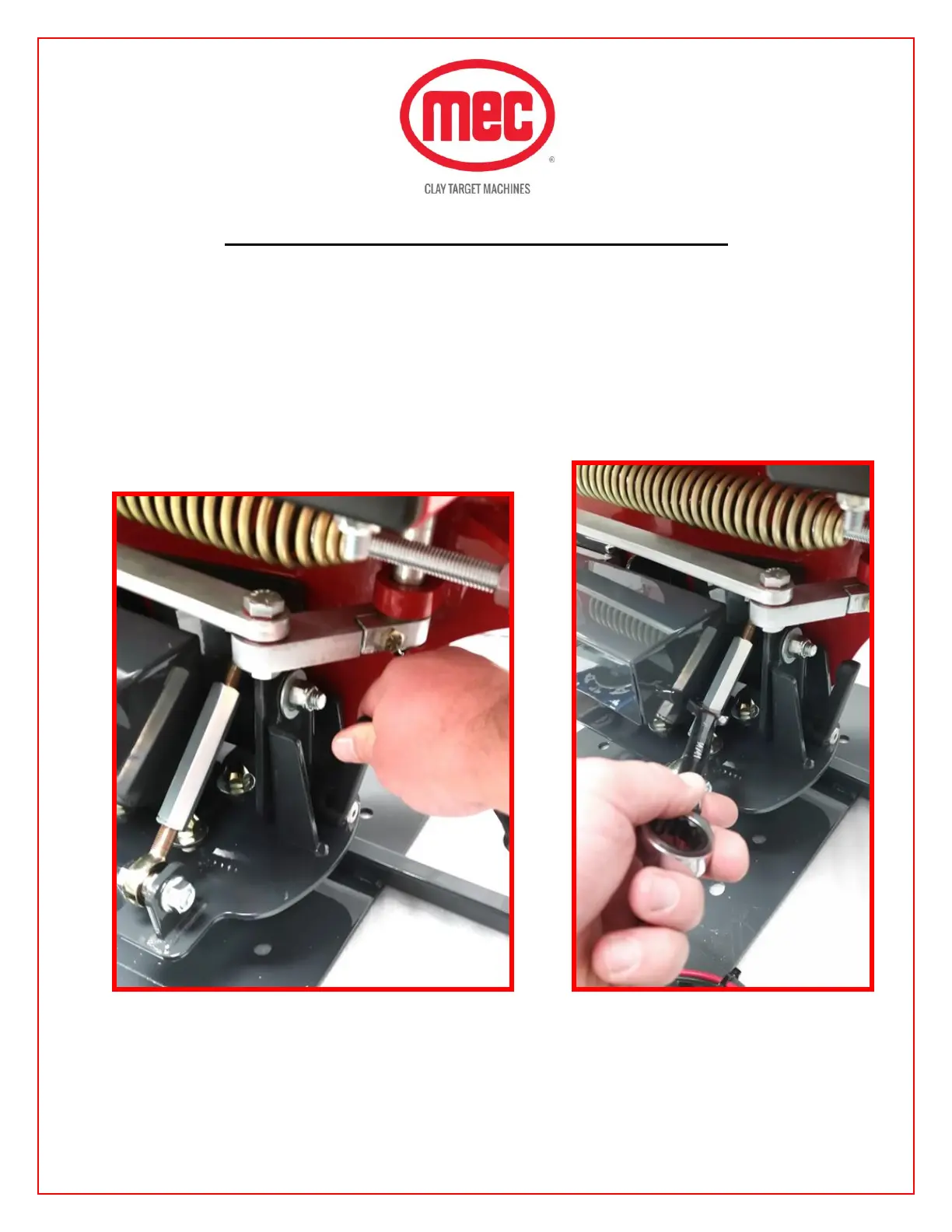

Step 9 – Adjust the machines tilt by loosening the lever on the rear side (Photo #1) of the upright of
the machine as shown below. Tilt the machine to the desired angle by adjusting the turnbuckle.
(Photo #2) Adding tilt allows the machine to throw a flat target with no curl. Once the correct tilt has
been achieved
RETIGHTEN THE LEVER TO KEEP THE MACHINE FROM SHIFTING OVER TIME. NOTE: You
may need to use a ¾” wrench to make this adjustment on the turnbuckle.
1. 2.
