ADJUSTING THE ELEVATION OF THE MACHINE

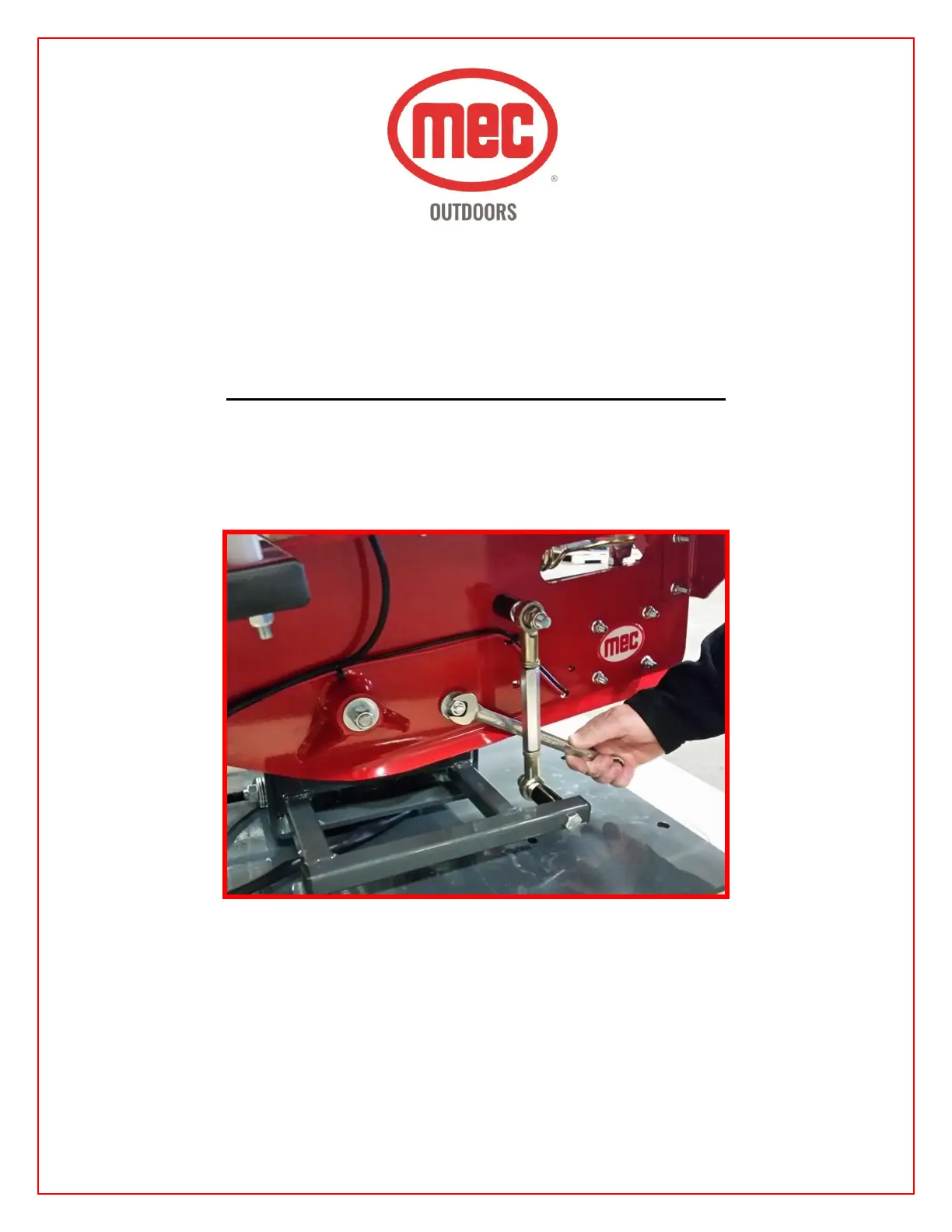

Step 8 – Adjust the machine elevation by loosening the ¾” nut on the side of the machine as shown
below. Extending the turnbuckle will tilt the machine backwards to the desired angle. Once the
correct angle is achieved, RETIGHTEN the nut. NOTE: you may need to use a ¾” wrench to
make this adjustment.
