Instructions for Direct Drive Clamps
The following instructions are for mounting the direct drive clamps to your Model 1000 unit. Al-
though the pictures show the 2-1/2" clamps, use these instructions for any clamp style. They all
mount the same way.

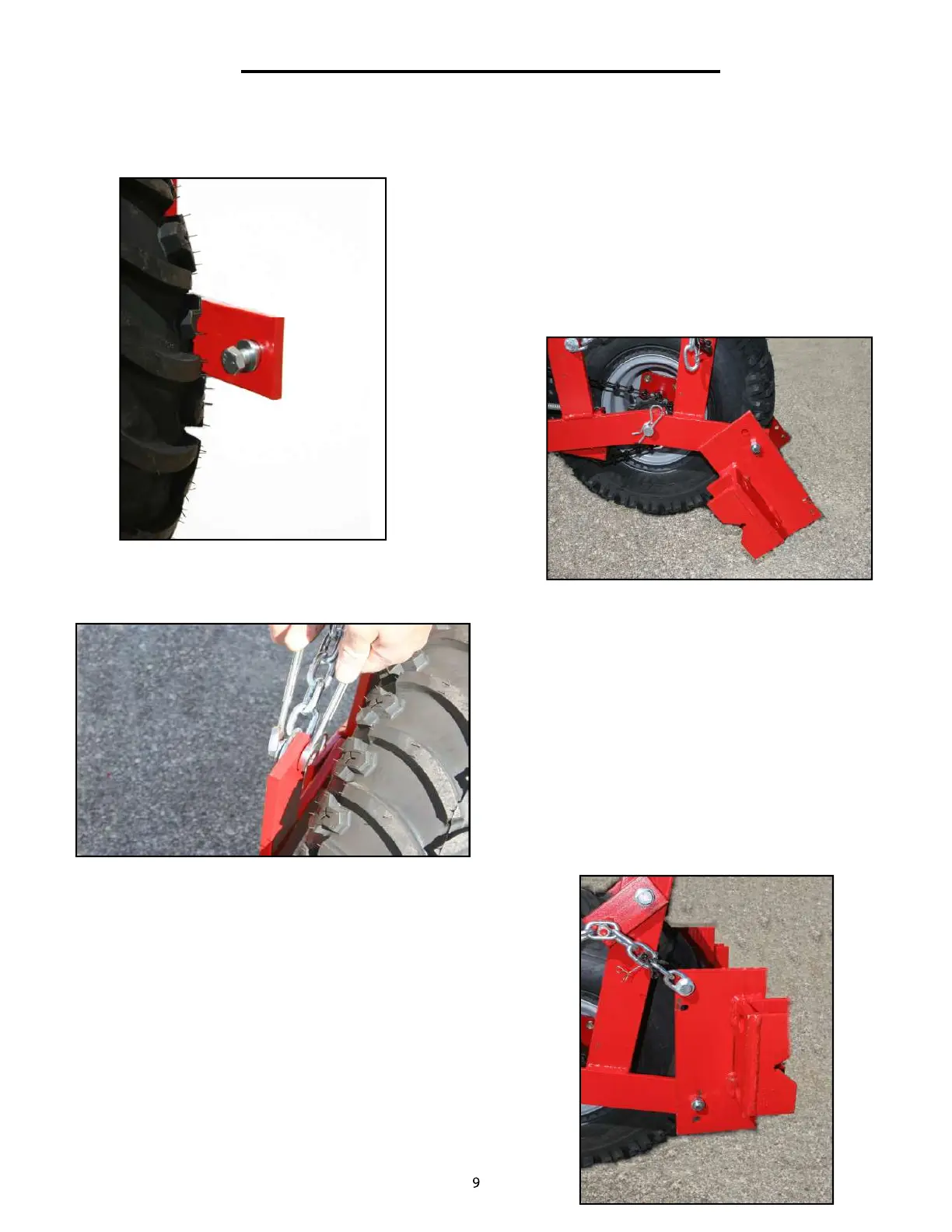

1. Insert a metal bushing from the inside
of the frame. Put one of the 1/2 x 1-1/2"
bolts through the bushing also from the
inside.
2. Attach the clamp to the bolt in the top
hole of the bottom set of large holes.
Secure with a 1/2" hex nut.
3. If you have a Model 1000B-3 or 1000-2
follow directions below for one clamp
side only. To mount safety bar on other
clamp side, see page 11. In the top set
of holes, place a 7/16 x 1-1/4" bolt
through the top hole.
4. Slide the end link of the chain onto the bolt.
5. Secure the chain with a 3/8" washer and then a
7/16" hex nut. Make sure the nut is very tight.
