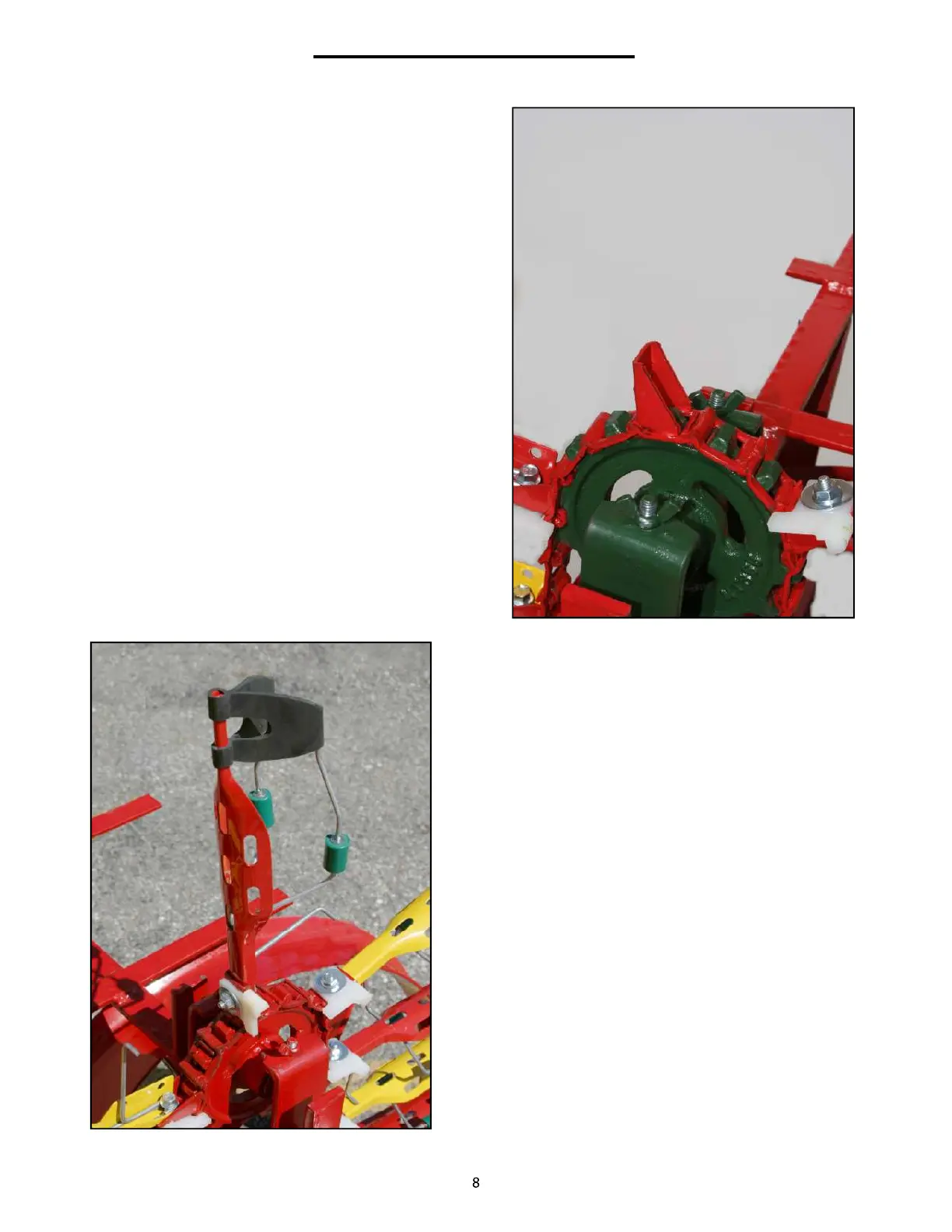

If your Model 1000 was shipped in a crate, a
pocket must be put on the empty attachment
link.
Do NOT put #445 rubber gripper onto
spring wires(#440) until pocket is
assembled to attachment link.
Take the extra V-3 pocket that is wired onto
unit and loosen the pocket bolt. Put pocket bolt
through the attachment link. Make sure spacing
bar stays under the head of the bolt. Place #375
water trip on the back of attachment link, then the
1/4" fender washer. Secure with 1/4" fl ange nut.
After the bolt has been tightened, slide the top
part of the #445 rubber gripper to the #440 wire.
The empty attachment link should be right at the
top of the chain when the unit is shipped. If it is
not, turn the drive wheel until the empty attachment
link comes to the top.
Loose Pocket Assembly
