MECNOSUD MX Series - Page 33

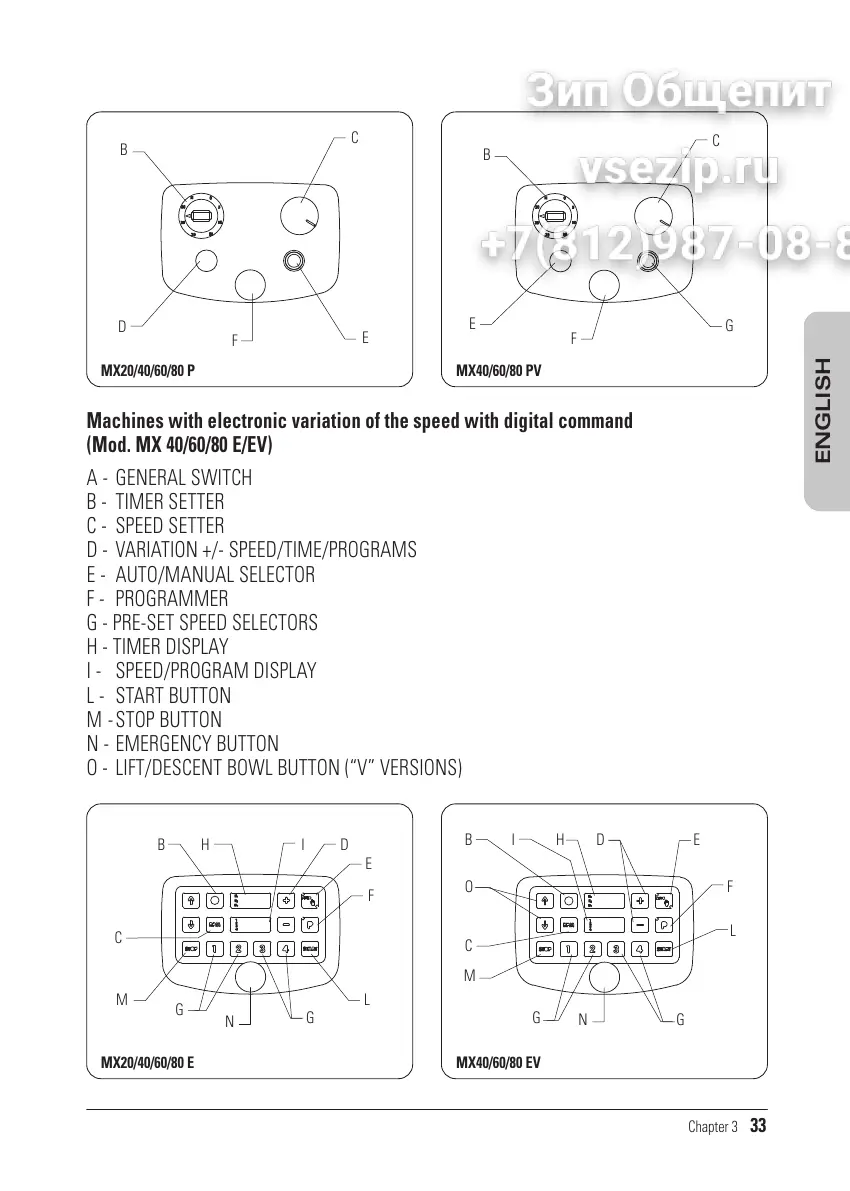

Machines with electronic variation of the speed with digital command
(Mod. MX 40/60/80 E/EV)
A - GENERAL SWITCH
B - TIMER SETTER
C - SPEED SETTER
D - VARIATION +/- SPEED/TIME/PROGRAMS
E - AUTO/MANUAL SELECTOR
F - PROGRAMMER
G - PRE-SET SPEED SELECTORS
H - TIMER DISPLAY
I - SPEED/PROGRAM DISPLAY
L - START BUTTON
M -STOP BUTTON
N - EMERGENCY BUTTON
O - LIFT/DESCENT BOWL BUTTON (V VERSIONS)
Chapter 3 33
ENGLISH
MX20/40/60/80 P MX40/60/80 PV
C
B
D
F
E
E
F
G
C
B
MX20/40/60/80 E MX40/60/80 EV
BH ID
E
F
L
G
N
G
M
C
M
C
O
BIHD E
F
L
G
N
G
