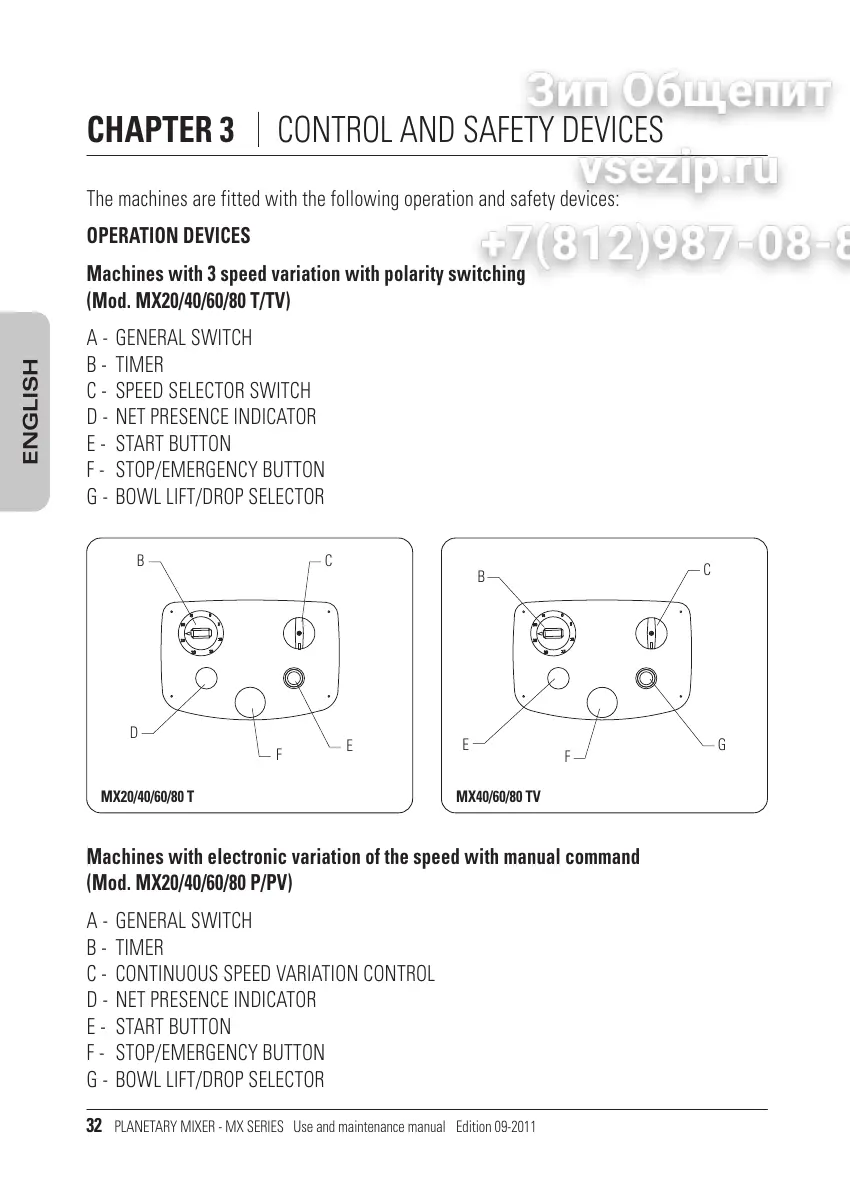

CHAPTER 3 CONTROL AND SAFETY DEVICES
The machines are fitted with the following operation and safety devices:
OPERATION DEVICES
Machines with 3 speed variation with polarity switching
(Mod. MX20/40/60/80 T/TV)
A - GENERAL SWITCH
B - TIMER
C - SPEED SELECTOR SWITCH
D - NET PRESENCE INDICATOR
E - START BUTTON
F - STOP/EMERGENCY BUTTON
G - BOWL LIFT/DROP SELECTOR
Machines with electronic variation of the speed with manual command
(Mod. MX20/40/60/80 P/PV)
A - GENERAL SWITCH
B - TIMER
C - CONTINUOUS SPEED VARIATION CONTROL
D - NET PRESENCE INDICATOR
E - START BUTTON
F - STOP/EMERGENCY BUTTON
G - BOWL LIFT/DROP SELECTOR
D
F
E
CB
MX20/40/60/80 T MX40/60/80 TV
B
C
E
F
G
