PLANETARY MIXER - MX SERIES Use and maintenance manual Edition 09-2011
4.3 Operation of the machine model with continuous variation
and digital operation (Series MX...E)
(refer to programming manual, page)

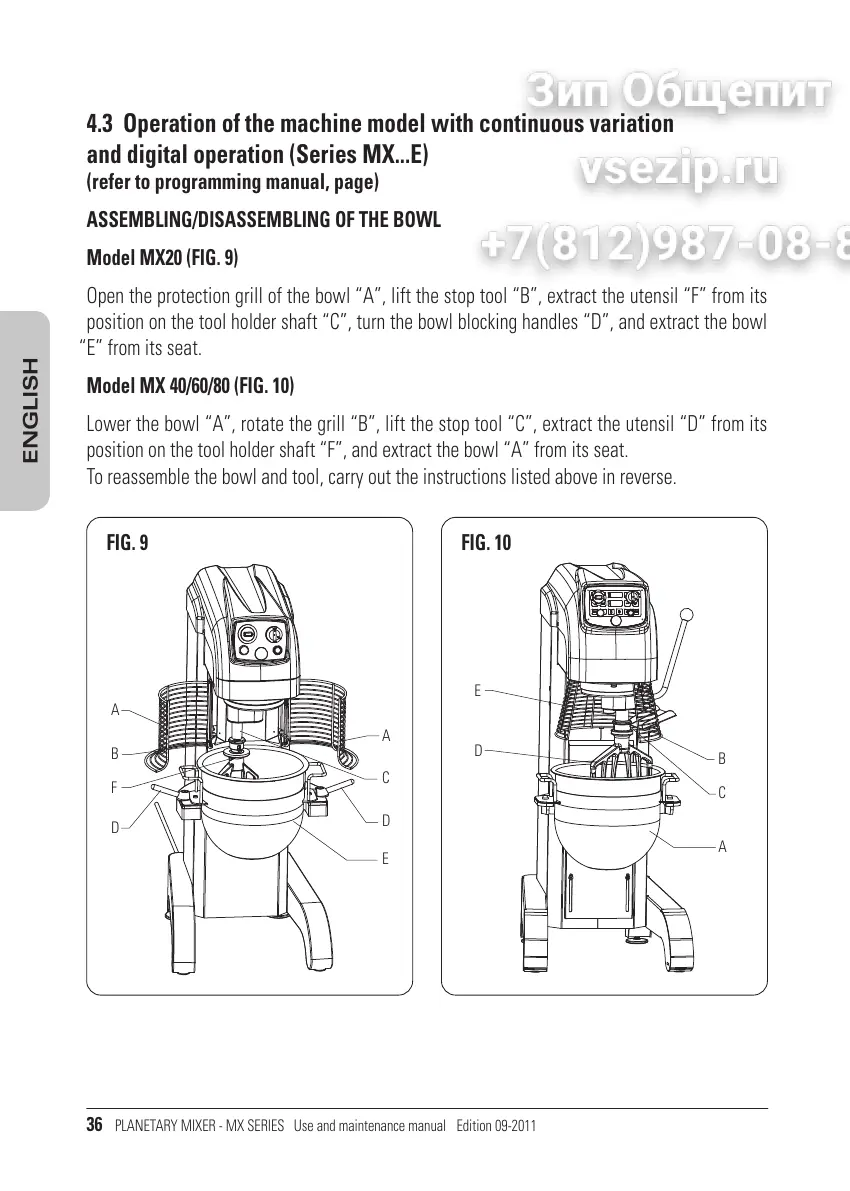

ASSEMBLING/DISASSEMBLING OF THE BOWL
Model MX20 (FIG. 9)
Open the protection grill of the bowl A, lift the stop tool B, extract the utensil F from its
position on the tool holder shaft C, turn the bowl blocking handles D, and extract the bowl
E from its seat.
Model MX 40/60/80 (FIG. 10)
Lower the bowl A, rotate the grill B, lift the stop tool C, extract the utensil D from its
position on the tool holder shaft F, and extract the bowl A from its seat.
To reassemble the bowl and tool, carry out the instructions listed above in reverse.
ENGLISH
FIG. 9 FIG. 10
A
C
B
E
D
A
C
D
E
A
B
F
D
