ENGLISH

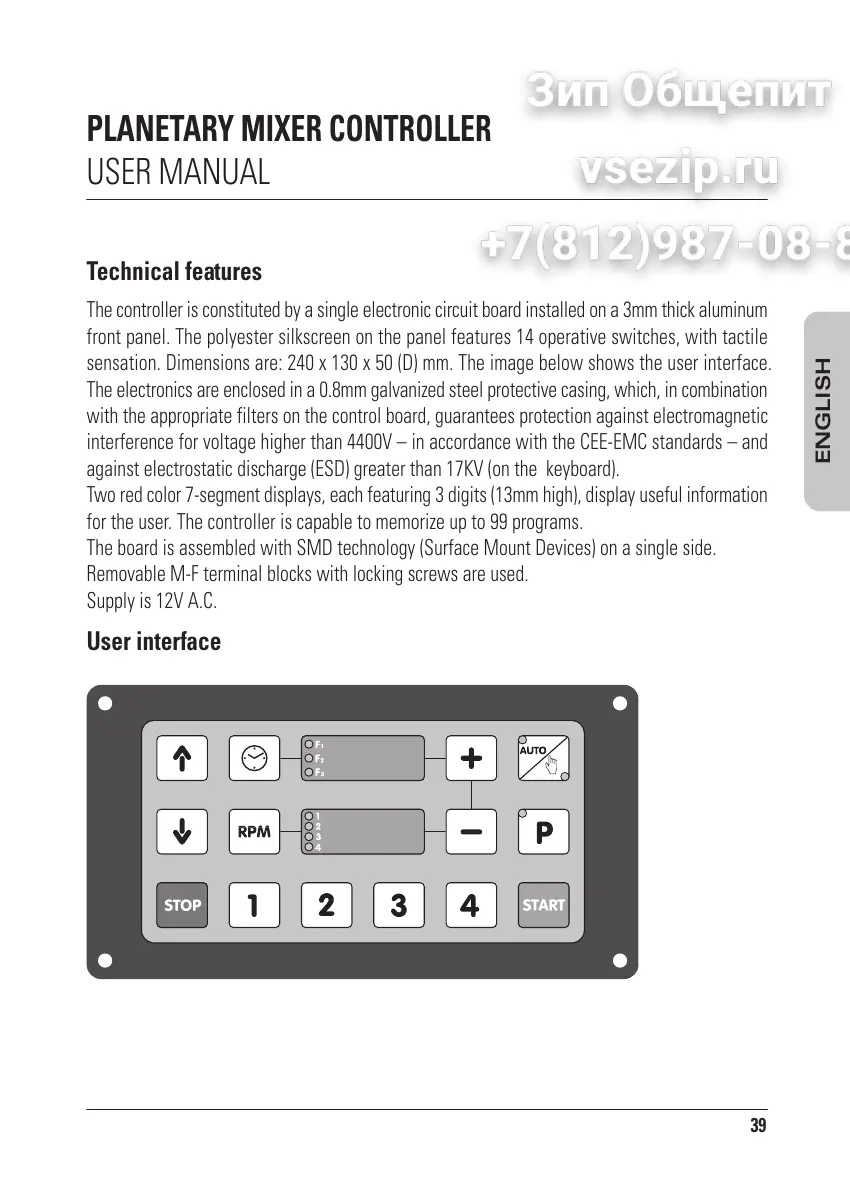

PLANETARY MIXER CONTROLLER
USER MANUAL
Technical features
The controller is constituted by a single electronic circuit board installed on a 3mm thick aluminum
front panel. The polyester silkscreen on the panel features 14 operative switches, with tactile
sensation. Dimensions are: 240 x 130 x 50 (D) mm. The image below shows the user interface.
The electronics are enclosed in a 0.8mm galvanized steel protective casing, which, in combination
with the appropriate filters on the control board, guarantees protection against electromagnetic
interference for voltage higher than 4400V in accordance with the CEE-EMC standards and
against electrostatic discharge (ESD) greater than 17KV (on the keyboard).
Two red color 7-segment displays, each featuring 3 digits (13mm high), display useful information
for the user. The controller is capable to memorize up to 99 programs.
The board is assembled with SMD technology (Surface Mount Devices) on a single side.
Removable M-F terminal blocks with locking screws are used.
Supply is 12V A.C.
User interface
