PLANETARY MIXER - MX SERIES Use and maintenance manual Edition 09-2011

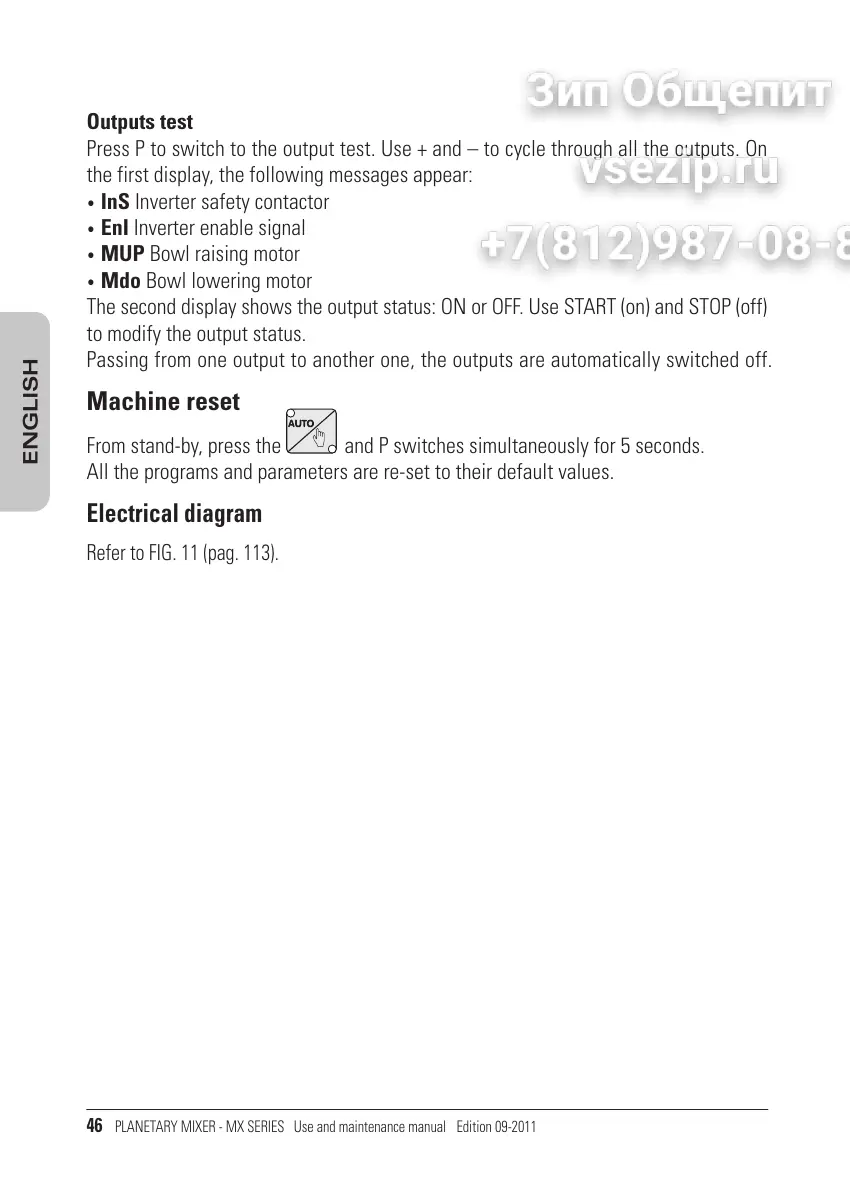

Outputs test
Press P to switch to the output test. Use + and to cycle through all the outputs. On
the first display, the following messages appear:
InS Inverter safety contactor
EnI Inverter enable signal
MUP Bowl raising motor
Mdo Bowl lowering motor
The second display shows the output status: ON or OFF. Use START (on) and STOP (off)
to modify the output status.
Passing from one output to another one, the outputs are automatically switched off.
Machine reset
From stand-by, press the and P switches simultaneously for 5 seconds.
All the programs and parameters are re-set to their default values.
Electrical diagram
Refer to FIG. 11 (pag. 113).
