! Air Emit Button : After Leakage test, Push this button for 1~2 seconds.
It make to pull out the air to be left air in the scope.
(See Leakage test Process of page 16 )

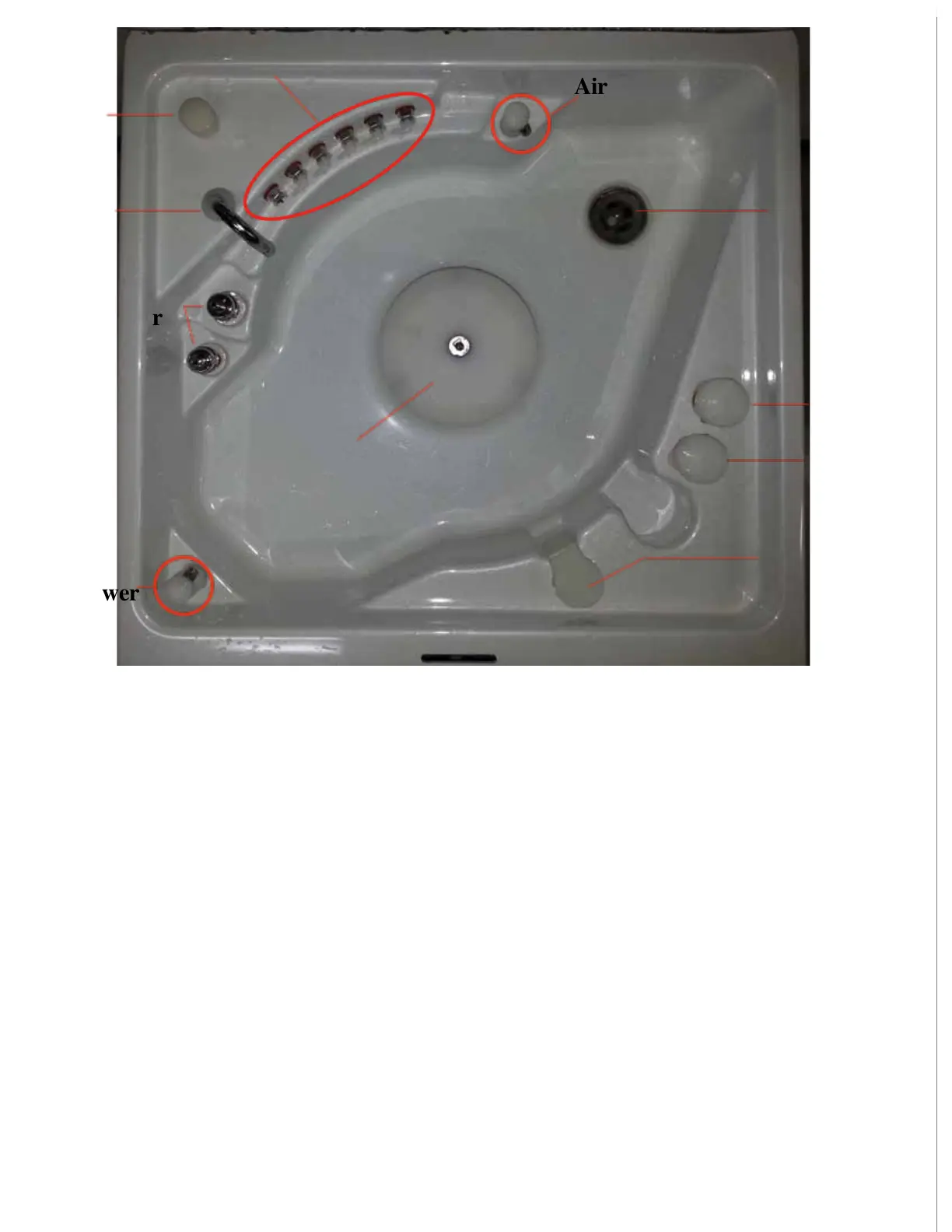

! Detergent : Detergent Tank.
! Alcohol : Alcohol Tank.
! Air Shower : Air blows endoscope outside water.
! Water Inlet : the Pipe that water come out.
! Disinfectant Inlet : On disinfection process, the Pipe that disinfectant come out.
! Level Sensor : Floating Level sensor
! Chanel 1~6 : Air and Water Chanel. All of chanels are common.
! Nozzle and Rotary/Nozzle : Water Inlet nozzle on washing process.
It may clean Outside of scope.
Level Sensor
Chanel 1~6
Air Shower
Rotary/Nozzle
Detergent
Basin/
Drain
Water
Inlet
Disinfectant
Inlet
-8-
Air Shower
Air
Vent
Alcohol
To Next Page
