Meec tools 723-092 - Technical Data; Description; Assembly; Fitting the Handlebar

ENGLISH
27
TECHNICAL DATA
Motor type
Air-cooled, 2-stroke engine
Displacement
25.4 cm
3
Max. speed
7500 rpm
Trimming diameter
380 mm
Fuel volume
0.6 l
Guaranteed sound power level, LwA
110 dB(A)
Sound pressure level, LpA
99 dB(A), K= 3 dB
Max. vibration level
8,3 m/s², K = 1.5 m/s²
Always wear ear protection!
The declared vibration value, which has been measured by a standardised test method, can be used to
compare different tools with each other and for a preliminary assessment of exposure.
WARNING! The actual vibration level when using power tools may differ from the specified maximum
value, depending on how the tool is used. It is therefore necessary to determine which safety precautions
are required to protect the user, based on an estimate of exposure in actual operating conditions (taking
into account all stages of the work cycle, e.g. the time when the tool is switched off and when it is idling,
in addition to the start-up time).

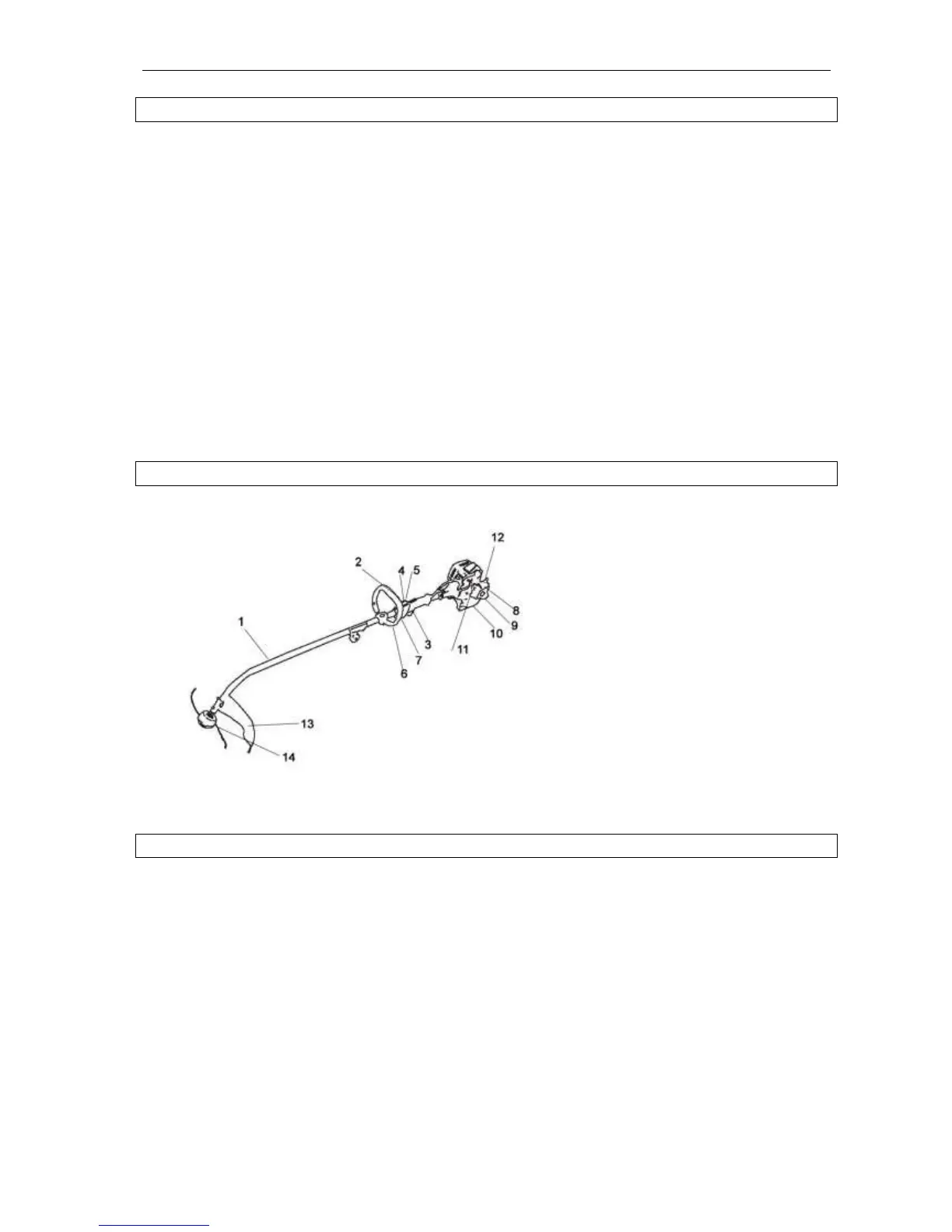

DESCRIPTION
1. Drive shaft unit
2. Catch
3. Throttle control lever
4. Ignition lock
5. Safety switch
6. Handlebar
7. Harness attachment
8. Air filter cover
9. Filler cap
10. Fuel tank
11. Primer
12. Choke
13. Safety guard
14. Trimmer head
ASSEMBLY
Fitting the handlebar
Place the handlebar on the drive shaft unit. Tighten the retaining screws.
Fitting the ejector guard
Turn the trimmer upside down and fit the safety guard.
