MEEPO NLS 3 - Remote Settings and Board Pairing; Establishing Remote-Board Connection

3

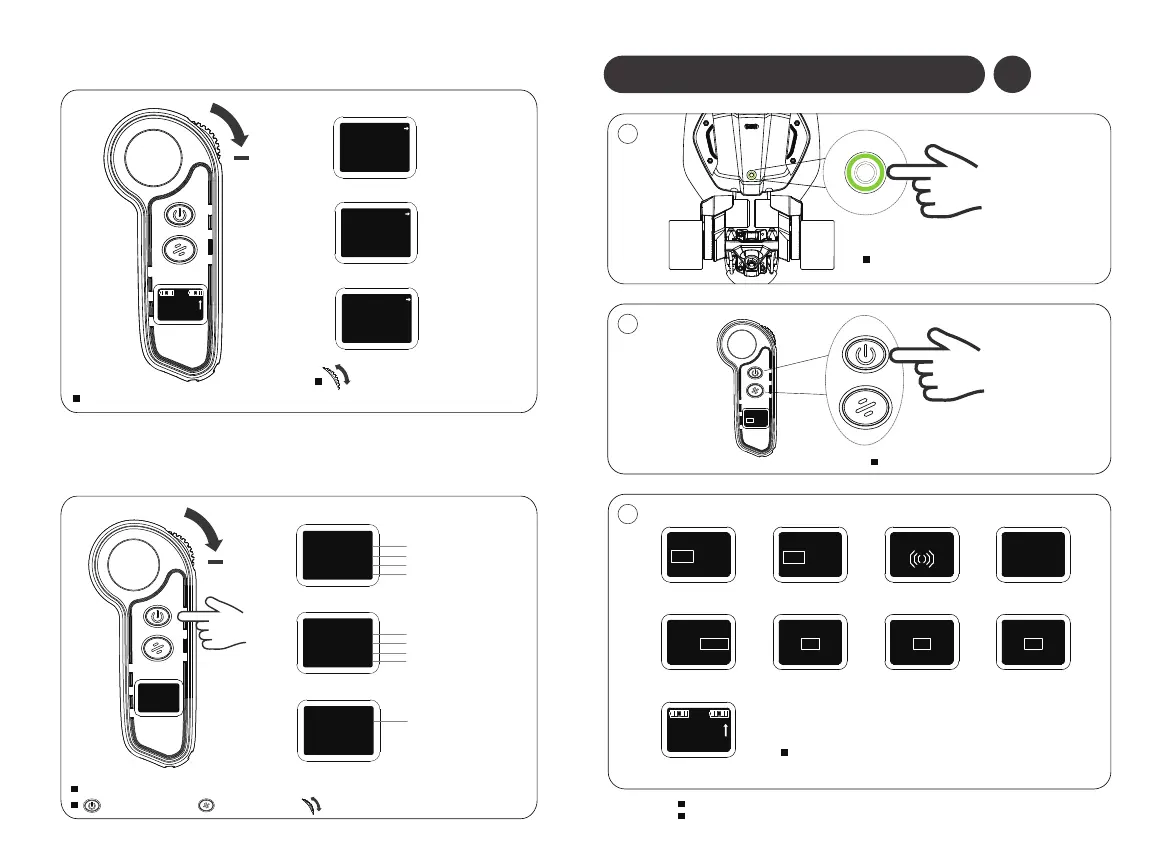

Pairing The Remote And Board
5S
BOARD TYPE
9028 9005
Press “Power" for 5S to enter pairing mode.
Select the corresponding parameters shown in the diagram.
The main menu will appear when the remote and board are
successfully paired.
1
2
3
MOTOR MODE
4240 YNT90
Belt Version:4240
2
REMOTE PAIRING...
Searching
3
REMOTE PAIRED OK
！
Remote Paired OK!
4
UNIT SYSTEM
KM/H KM MPH MILE
Choose "MPH/KMH"
5
WHEEL DIAMETER
9089 91
Choose "Diameter"
6
DRIVE RATIO
2.12.0 2.2
7
76 8
8
R B
0
mph
T:
④
0:
0.0ml
0.0ml
Enter main menu
9
BOARD TYPE
9028 9005
Choose "9028"
Make sure the remote and skateboard are both turned off.
During pairing, roll the scroll wheel to choose parameters, press "Power" to confirm.
Attention:
Belt Version: 2.1
Belt Version: 7
7S
Press the power button for 7s, until the power
light is blinking. ESC enters pairing mode.
MOTOR POLE PAIRS
√
R B
0
mph
T:
④
0:
0.0ml
0.0ml
SETTINGS(1/3)
1 WHEEL-D:90
2 D/R:2.1
3 G1 SPEED:20
4 G2 SPEED:30
SETTINGS(1/3)
1 WHEEL-D:90
2 D/R:2.1
3 G1 SPEED:20
4 G2 SPEED:35
SETTINGS(2/3)
5 G3 SPEED:45
6 G4 SPEED:60
7 EBS:100
8 DIRECTION:CW
SETTINGS(3/3)
9 RESET
3：How to customize parameter settings?
2：How to preview the current setting?
Brake
Wheel Size
Gear Ratio
Gear 1:Speed Limiting
Gear 2:Speed Limiting
Gear 3:Speed Limiting
Gear 4:Speed Limiting
Limit of Braking Ratio
Change Wheel Direction
(Front & Rear)
Factory Reset
Press reverse to brake；Quickly press the power button three times to customize settings.
means "Confirm"
means "Return"
means "turn page"
Brake
E-SKATEBOARD(1/1)
1 BOARD PYTE:9028
2 MOTOR PYTE:4240
3 WHEEL-D:90
4 D/R:2.1
5 POLE PAIRS:7
6 VOLTAGE:50.4V
Press reverse to brake；Quickly press the power button twice times to preview the setting.
means "turn page"
E-SKATEBOARD(1/2)
1 G1 SPEED:15
ACCELERATE:30
BREAC:80
2 G2 SPEED:30
ACCELERATE:50
BREAC:80
E-SKATEBOARD(1/3)
3 G3 SPEED:45
ACCELERATE:100
BREAC:80
4 G4 SPEED:62
ACCELERATE:100
BREAC:80
