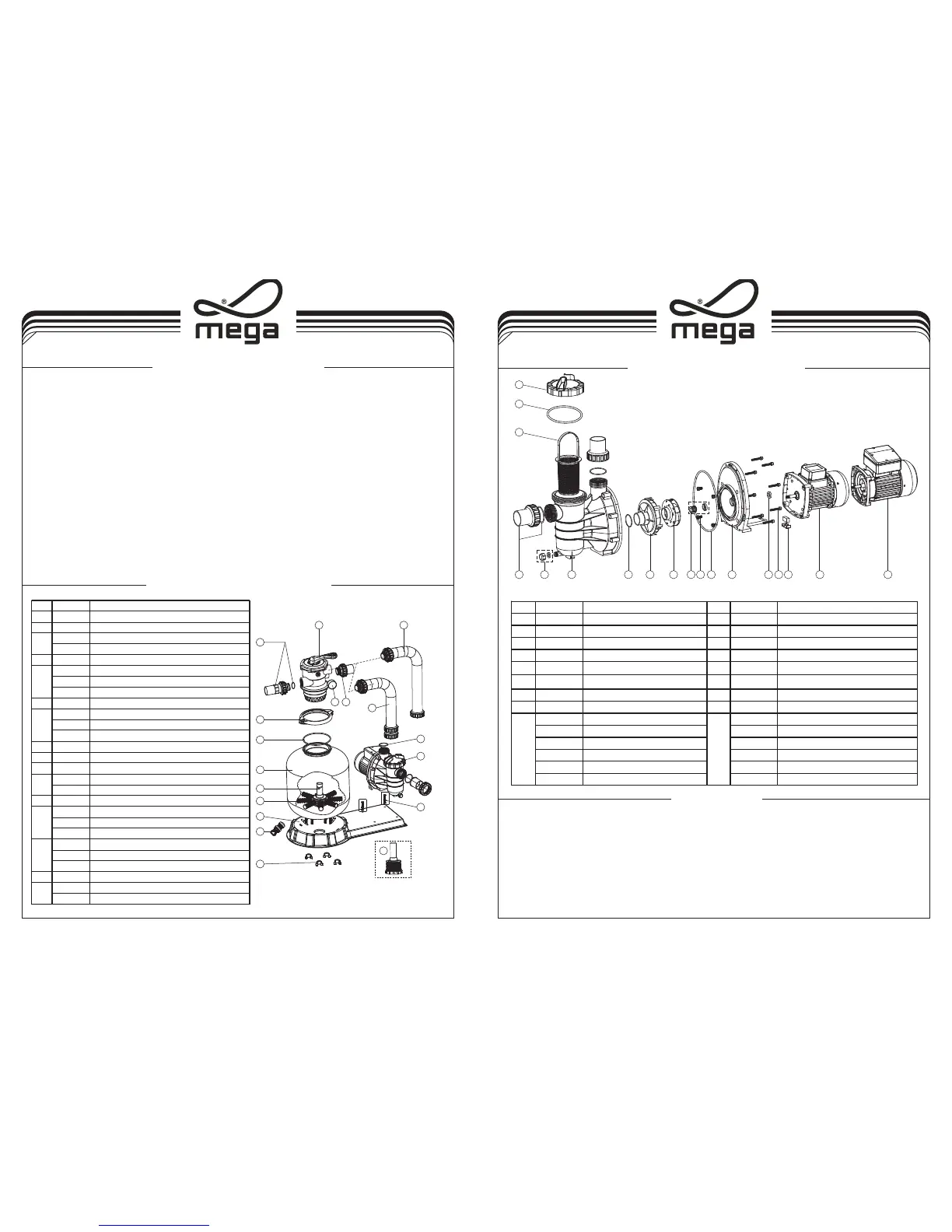

REPLACEMENT PARTS OF FILTER
1. Be sure correct amount of filter media sand is in tank and that all connections have been made and are secure.
2. Depress control valve handle and rotate to BACKWASH position. (To prevent damage to control valve seal, always
depress handle before turning.)
3. Prime and start pump. Never tun pump dry! Running pump dry may damage seals, causing leakage and flooding!
Fill pump with water before starting motor. (be sure all suction and return lines are open), allowing the filter tank to fill
with water. Once water is flowing out of the waste line, run the pump for at least 1 minute. The initial back-washing
of the filter is recommended to remove any impurities or fine sand particles in the sand media.
4. Turn pump off and set valve to RINSE position. Start pump and operate until water in sight glass is clear, about 1/2
to 1 minute. Turn pump off and set valve to FILTER position and restart pump. The filter is now operating in the
normal filter mode, filtering dirt particles from the pool water.
5. Adjust pool suction and return valves to achieve desired flow. Check system and filter for water leaks and tighten
connections, bolts, nuts, as required.
6. Note the initial pressure gauge reading when the filter is clean. (It will vary from pool to pool depending upon the
pump and general piping system.) As the filter removes dirt and impurities from the pool water, the accumulation in
the filter will cause the pressure to rise and flow to diminish. When the pressure gauge reading is 1.5 bar, higher
than the initial "clean" pressure you noted, it is time to backwash the filter (see BACKWASH under filter and control
valve functions).
NOTE: During initial clean-up of the pool water it may be necessary to backwash frequently due to the unusually
heavy initial dirt load in the water.
INSTALL/START-UP OF FILTRATION
SS PUMP REPLACEMENT PARTS
4
Release all air from filter and piping system.
4
In a flooded suction system (water source higher than pump), pump will prime itself when suction
and discharge valves are opened.
4
If pump is not in a flooded suction system, unscrew and remove trap cover; fill trap and pump with
water.
4
Clean and inspect Ring; re-install on trap cover.
4
Replace trap cover on trap; turn clockwise to tighten cover.
NOTICE: Tighten trap cover by hand only. Pump should prime now. Priming time will depend on
vertical length of suction lift and horizontal length of suction piping.
PRIMING PUMP
1
2
3
5 6 4 7 8 9 11 10 12 13 1415 16 17 17
A B
FSF350-6W
FSF400-6W
FSF450-6W
9
10
11
13
12
14
15
16
8
7
6
5
43
51
2
V350
13
Item Part No. Description
1
88280105
1.5"Top Mount Valve
2 89280101 1.5" Union With Sight Glass, O-Ring
06011029 Oil Pressure Gauge With O-ring (40Psi)
01111048 Connector for pressure gauge
4 89280102 1.5" Union Set With O-Ring
89032004 FSF350-6W Plastic Hose with Nut
89032104 FSF400-6W Plastic Hose with Nut
89032202
FSF450-6W Plastic Hose with Nut
6 02011104 O-Ring for Pump
08030007 FSF350-6W Pump(SS033)
08030008 FSF400-6W Pump(SS050)
08030009 FSF450-6W Pump(SS075)
8 89032001 Pump Assembly Screw
9 01181052 Fastener f or Filter Base
10
89010107
Water Drain Set
01111056 FSF350-6W Combo Base
01111053 FSF400 - FSF450 Combo Base
12 01172007 V400-V450 Laterals (115mm)
89010106
V350 Lateral Assembly with Center Pipe and Lateral
89010116 V400 Lateral Assembly with Center Pipe
89010105 V450 Lateral Assembly with Center Pipe
89010115
V350 Filter tank
89010113 V400 Filter tank
89010112 V450 Filter tank
15 02011134 O-Ring for Filter Neck
89010119 M6*50 Scre ws W ith Nut
01271010 Clamp Lock
16
3
5
7
11
13
14
Item Part No. Description Item Part No. Description
1 01041025 Transparent Lid 10 89022403 M8*16 Screw with washer
2 02011074 O-Ring for lid 11 04015002 1/2"Mechanical seal
3 89022401 Basket with Handle 12 02011090 O-Ring for Flange
4
01021064
SS Pump Pre-filter 13
01021065
SS Pump Flange
5 89021702 1.5"union 14 03011035 M6*30 Screw
6 89022402 Drain Plug With O'ring 15 02011156 Motor Slinger for SS020;SS033
7 02011004 O-Ring for diffuser 15 02011153 Motor Slinger for SS050-SS120
8 01111014 Diffuser 16 89022404 Motor support
01311015 Impeller SS020(230V/50HZ) 89022109 Motor SS020(230V/50HZ)
01311016 Impeller SS033(230V/50HZ) 89022110 Motor SS033(230V/50HZ)
01311017 Impeller SS050(230V/50HZ) 89022105 Motor SS050(230V/50HZ)
01311018 Impeller SS075(230V/50HZ) 89022106 Motor SS075(230V/50HZ)
01311019 Impeller SS100(230V/50HZ) 89022107 Motor SS100(230V/50HZ)
01311014 Impeller SS120(230V/50HZ) 89022108 Motor SS120(230V/50HZ)
9 17
