DOCUMENT SUBJECT TO U.S. EXPORT CONTROLS, COMPLIANCE APPROVIAL REQUIRED PRIOR TO DISTRIBUTION
IM4830, Page 6

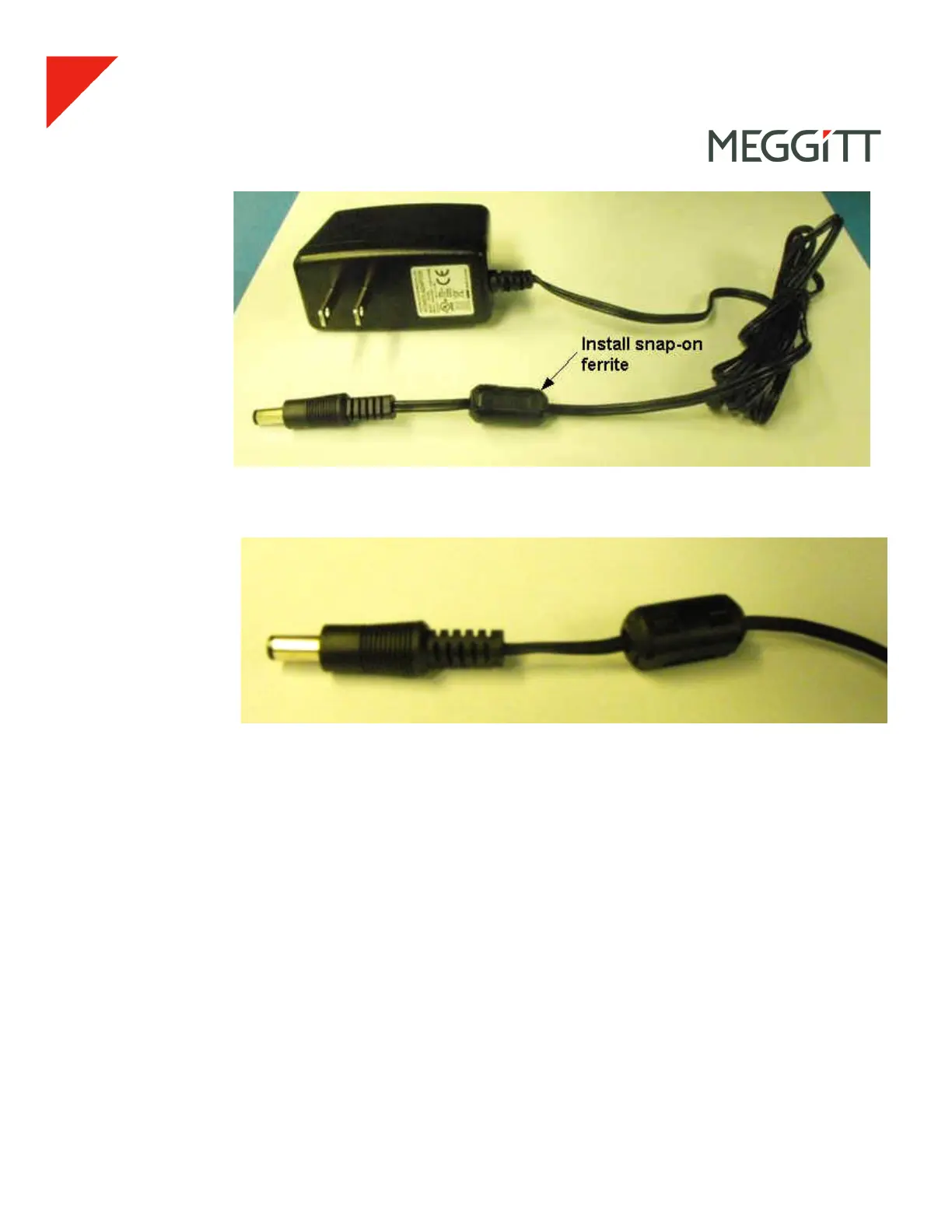

Figure 1: Install snap-on ferrite
Figure 2: Plug in power
6 PANEL DESCRIPTION AND ORENTATION
Please follow the step by step instructions for set up and operation of the instrument. Refer to figure
three for location on the output signal conditioners. The connectors provide the following outputs:
TACHO: Provides a simulated tachometer signal with TTL (5 Volt) pulses
ICP: Provides a millivolt output signal as selected on the panel. This output includes
current sinking to simulate IEPE (ISOTRON, ICP etc) accelerometers.
SE: A charge signal is provided to simulate charge-mode piezoelectric accelerometers.
mV: An output in millivolts may be selected with no current sinking.
DIFF: A Twin-BNC connector provides a differential charge to simulate differential charge-
accelerometers.
