25

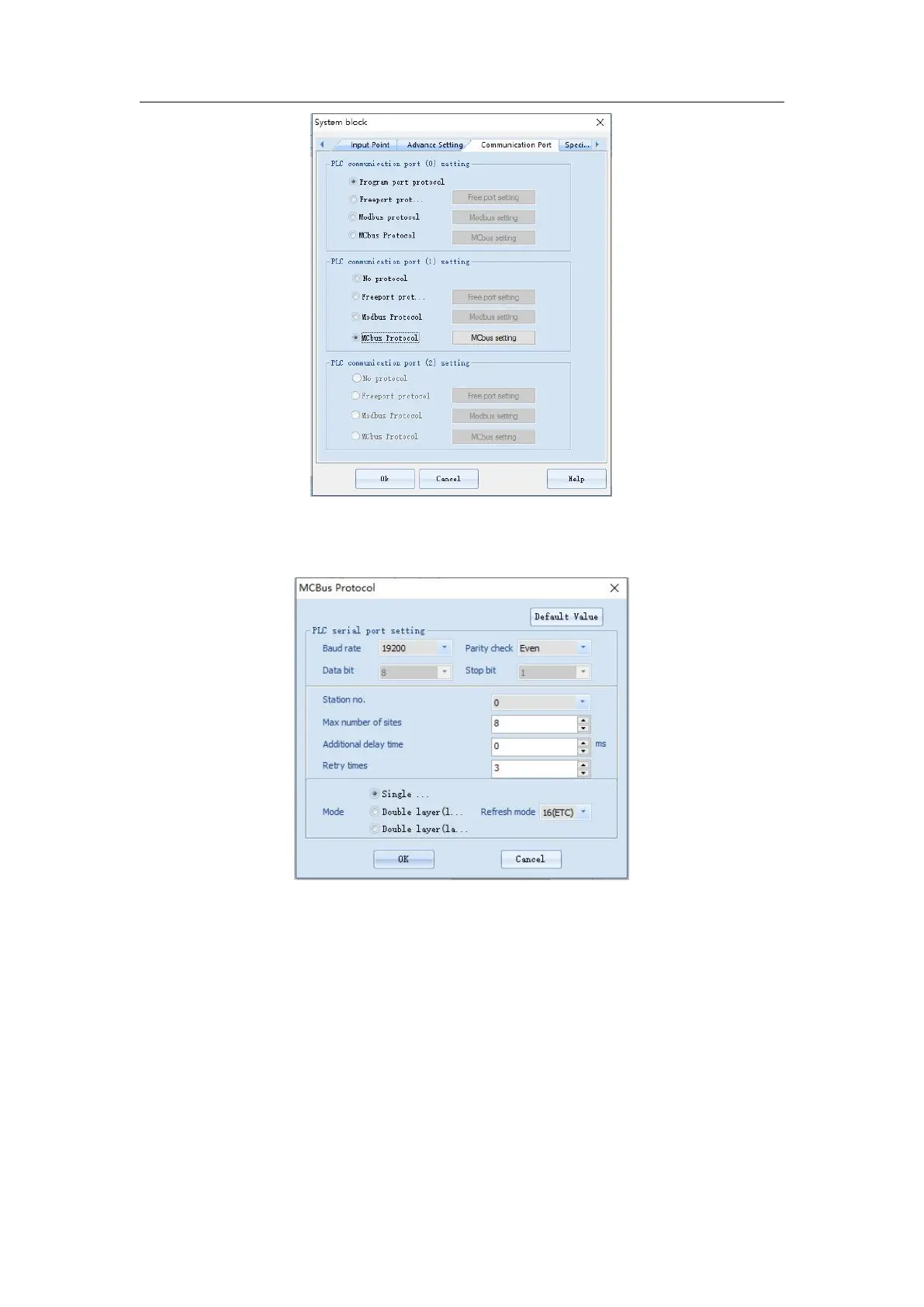

Figure 3-3 parameter setting of communication port
3. Click the corresponding MCbus setting button to enter the MCbus protocol setting interface. As
shown in the following figure.
Figure 3-4 MCbus protocol
(1) select the baud rate and parity supported by MTC. Baud rate range supported by MTC: 2400, 4800,
9600, 19200.
(2) set the station number of the main module as "0".
(3) set the maximum number of network patrol stations as the maximum station number.
(4) set the additional delay time and the number of retries.
(5) select single layer for mode setting, and set the refresh mode to "16".
(6) click ok to save the MCbus protocol configuration.
4. Download the system block to PLC after setting, the main module communication port setting ends.
System block download method please see the "X_Builder programming software user manual".
Note: 1. After setting up the communication port of the main module, the user shall download the
system block set to the main module, otherwise the setting is invalid.
