Meiji MSD-01 - Dimension; Testing Procedure; Battery Connection Check; Panel Removal and Testing

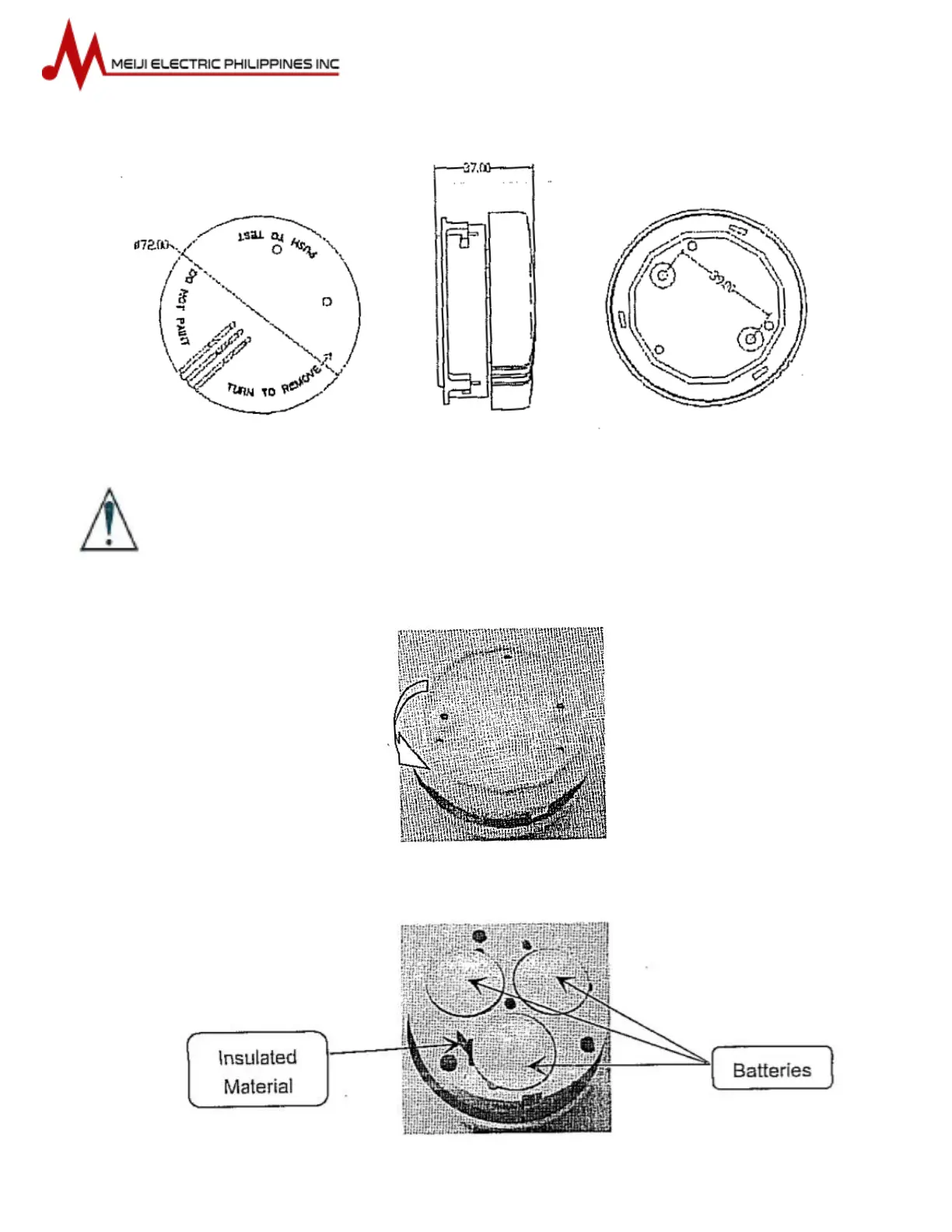

II. Dimension (mm)
III. TO TEST:
Note: if battery is installed correctly, the item will not work.
If the item is working, a red LED will flash once in a 40 second interval.
1. Counter rotate the installation panel in order to remove it.
2. Remove the insulated material to make sure the battery is connected
correctly.
