Actuator Removal
1) Remove mirror plate (G.5.1)

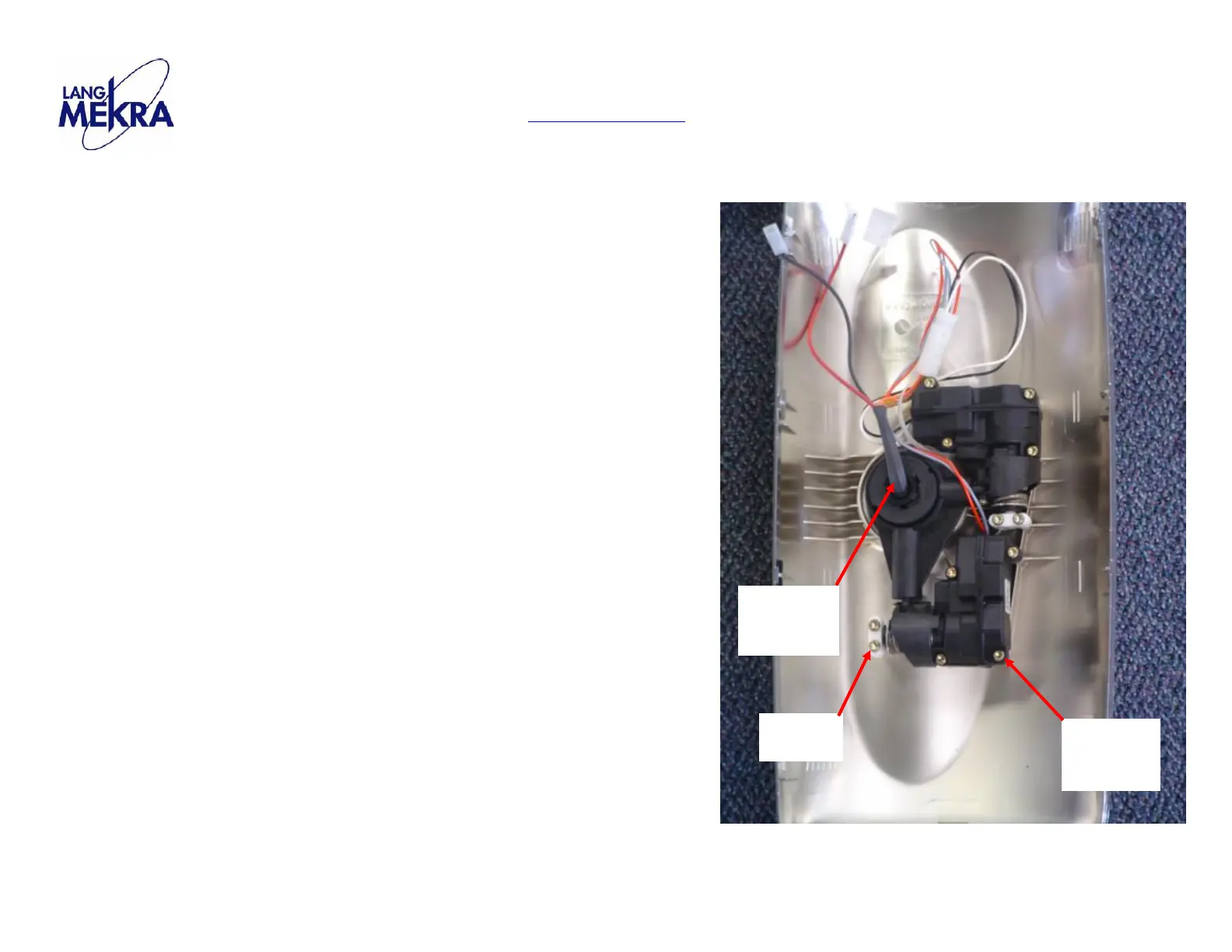

2) After identifying the non-functioning motor according to T.2.1 and T.2.2, remove
the six retaining screws with a 4mm torx driver. Slide the unattached motor away
from center pivot and lift it out of the housing.
3) Remove the white stabilizer piece from the old motor and save it. It will be used
when installing the new motor.
4) Unplug the old actuator from the motors connector.
Actuator Installation
1) Plug the wires from the new actuator assembly into the motors connector on the
control cable. Make sure the wires are not pinched or strained.
2) Attach the white stabilizing piece to the new motor and slide the motor into the
center pivot.
3) Fasten motor with six screws to 0.7-1.2 N-m, using a 4mm torx driver.
4) Reinstall the glass, being sure to connect the heater wires if applicable (G.5.2).
