MELAG Mount D - Mount Application; Standard Mount D; Plus Mounts; A Plus Mount

4 Application
8
4 Application
Please always follow the instructions on use of the mounts given in the user manual of your device.

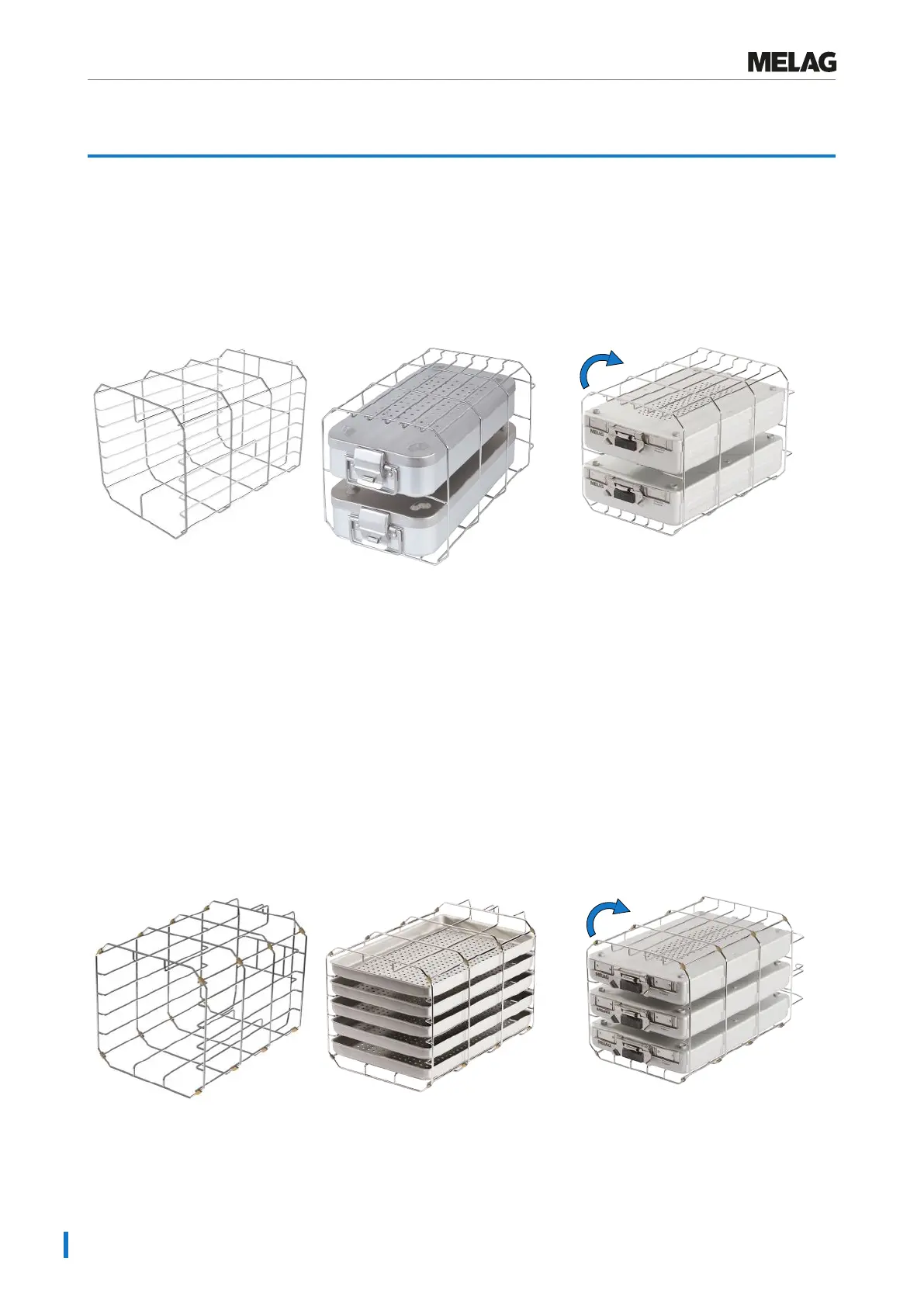

Standard mount
Mount D
Art. no. ME46840 (for chamber depth 35 cm and 45 cm)
90°
for 4 trays for 2MELAstore Box200 or
for 2high sterilization containers
(23M/28M)
(mounted rotated by 90°)
“Plus” mounts
The mounts are fitted with slide clips on their edges. These protect the chamber against scratches and simplify the
sliding in or out of the mount during loading and unloading. The scope of delivery of the mounts includes further
replacement slide clips.
Remove the bag with the slide clips before first use. Replace any slide clips exhibiting visible wear immediately, see
Replacing the slide clips [}page13].
A Plus mount
Art. no. ME82620 (for chamber depth 35 cm)
Art. no. ME82630 (for chamber depth 45 cm)
90°
for 5 trays for 3MELAstoreBox100
(mount rotated by 90°)
