THE MELGES 14 GUIDE
This guide will help you familiarize yourself with the rigging, parts !
and maintenance of the Melges 14 Full Range, Mid-range and Youth
Range rigs. The different sail sizes utilize different mast tips and !
different outhaul front spectra lengths to make the switch through !
the different sail sizes.

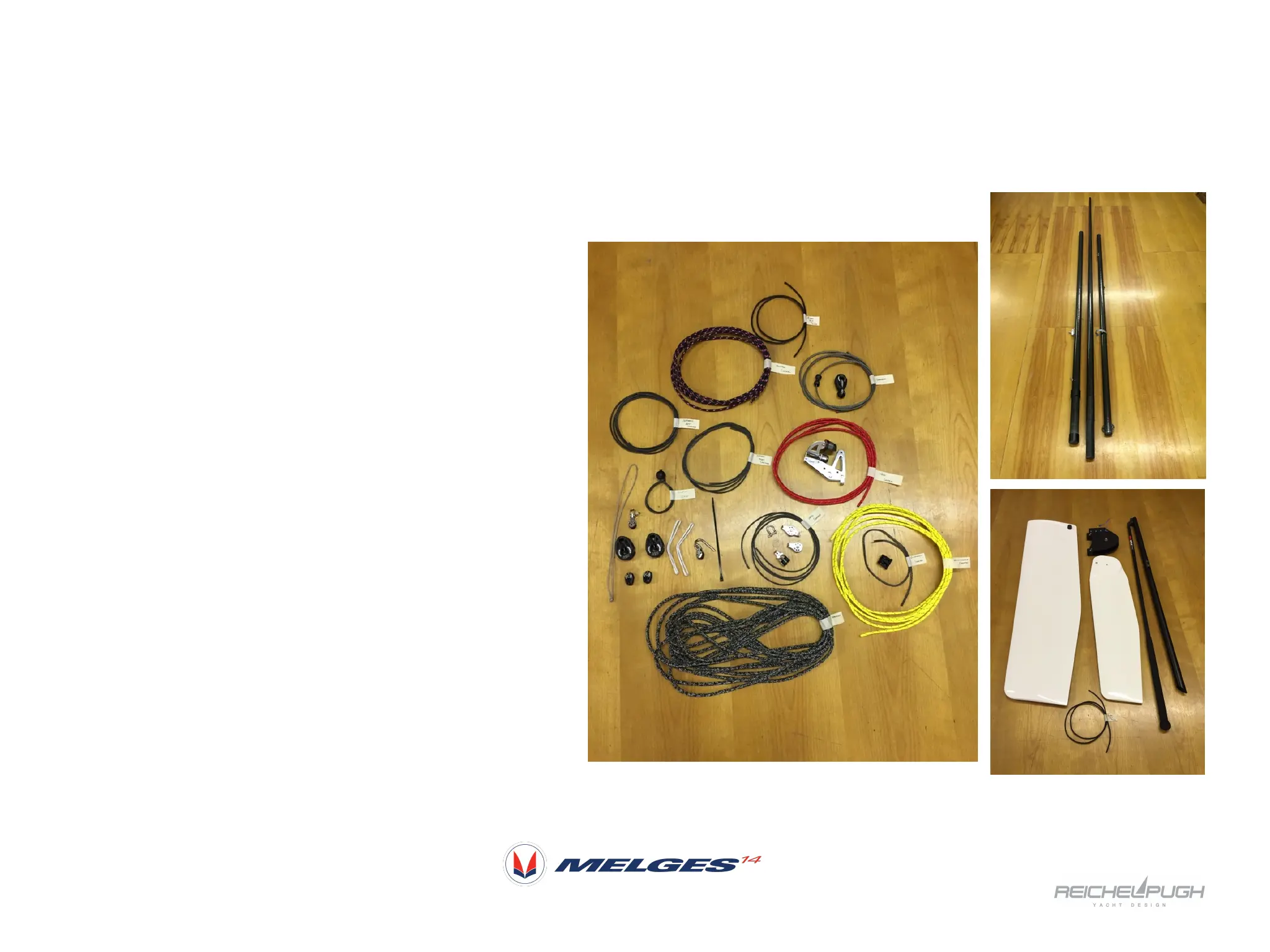

The first thing to do is unpack the extra parts you received !
with your new boat and lay them out on the floor or table to
identify what you have.
1. Daggerboard
2. Rudder with rudder head and tiller quick pin.
3. Tiller with extension
4. Upper mast
5. Lower mast
6. Boom
7. Sail with battens
8. Mainsheet 7mm X 10.668M
9. Boom vang system with vang lines
10. Cunningham control line (yellow)
11. Cunningham spectra 3mm X 610mm
12. Outhaul control line (black)
13. Outhaul front spectra 3mm X 1.83M
14. Outhaul aft spectra 3mm X 2.21M
15. Traveler line with 2 stopper balls. 4mm
16. Traveler line pulley (29mm) with lead ring.
17. 2 X 40mm T2 blocks for mainsheet
18. Large loop for mid boom block
19. Zip tie for aft boom block
20. Dinghy clew hook (Harken 394)
21. 2 X 18mm T2 Blocks for outhaul
22. 16mm swivel(#417) for outhaul
23. 18mm double block for cunningham
24. Spectra clew strop.
25. Self starting O ring for vang to mast
MELGES.COM • MELGES14.COM
