Menards KLEARVUE CLOSETS - Drawer Locations; Hinge Locations; Hinge Base Plate Mounting

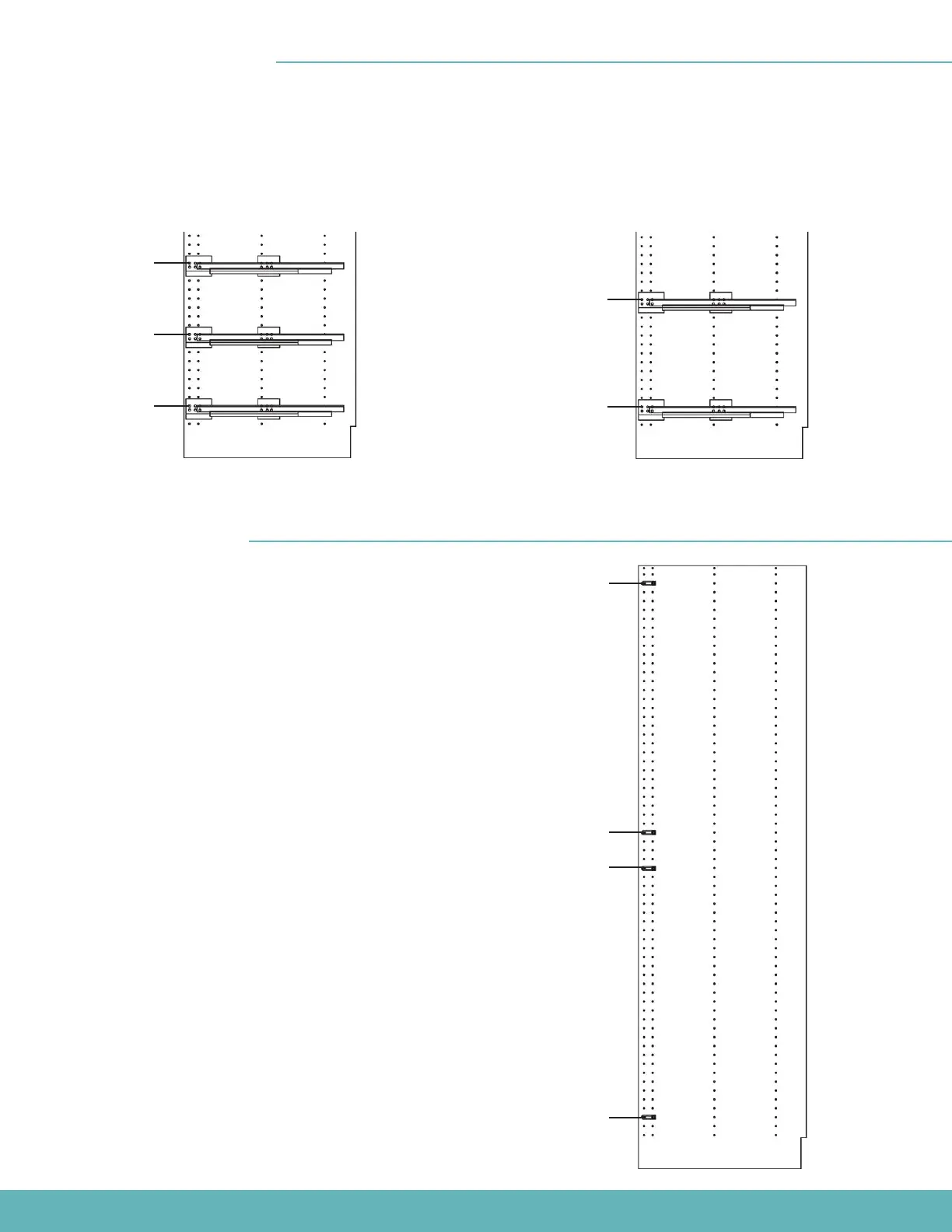

DRAWER LOCATIONS - 3 DRAWER BANK
This configuration is made from Medium Drawer Kits.
Follow step-by-step instructions with your drawer kit.
Refer to this layout for glide installation location.
Note: There is no bottom shelf installed with drawer banks.
DRAWER LOCATIONS
47
55
63
24" Depth
DRAWER LOCATIONS - 2 DRAWER BANK
This configuration is made from Tall (High) Drawer Kits.
Follow step-by-step instructions with your drawer kit.
Refer to this layout for glide installation location.
Note: There is no bottom shelf installed with drawer banks.
51
63
24" Depth
HINGE LOCATIONS
HINGE LOCATIONS - 40" DOORS
Follow step-by-step instructions with your hinges. Refer
to this layout for hinge base plate installation location.
Note: Hinge locations are the same for 14" and 24" depth
closet uprights.
3
31
35
63
8
