Soft-close® CST – quick and easy to install.

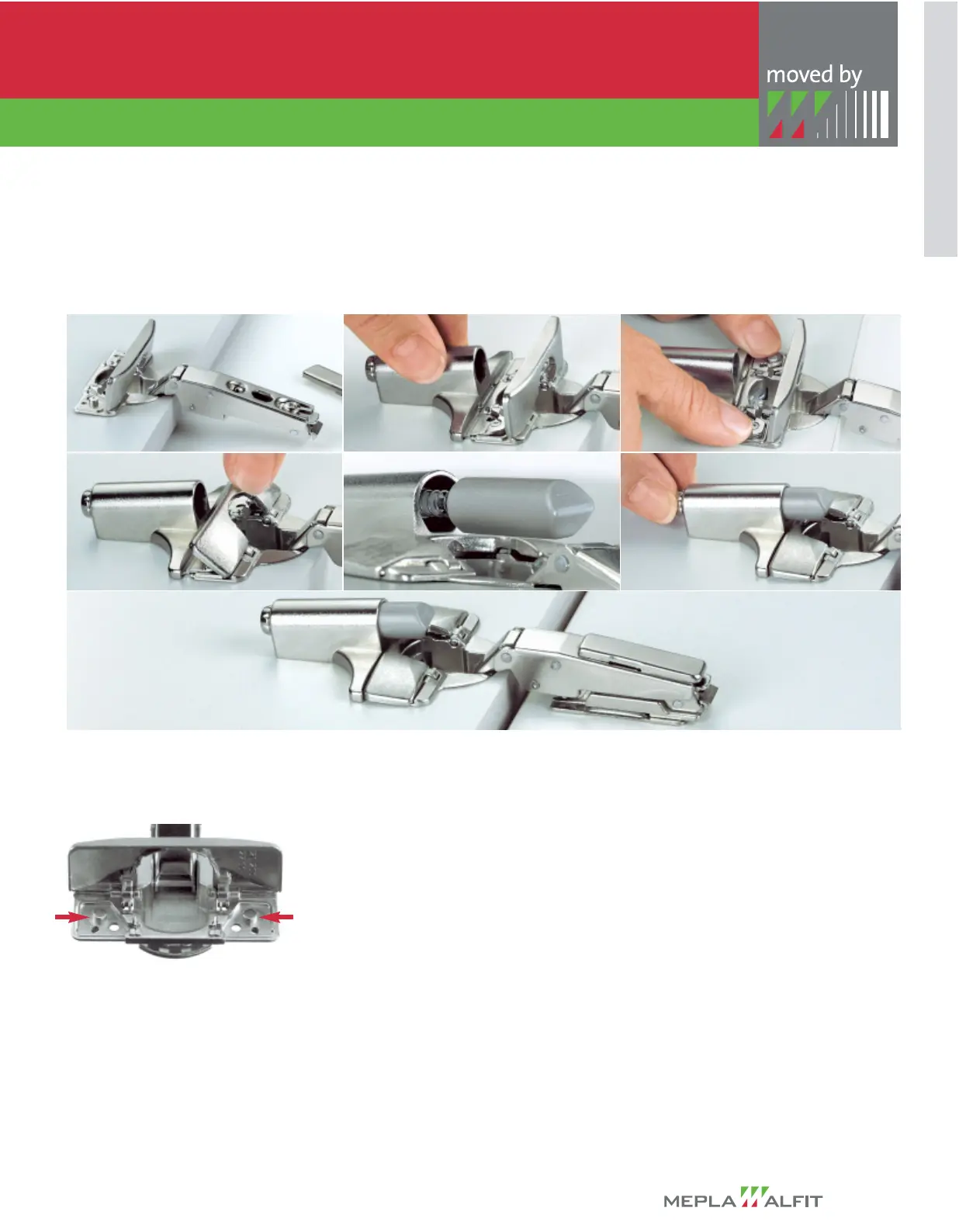

Mounting is toolless, easy and quick:
1Take door off the cabinet, remove cover cap (if installed) on 00 cranking hinges , open
flap of hinge cup.
2 Insert Soft-close® CST adapter onto locator pins which are attached to the hinge cup.
3 Close Twin NT flap of hinge cup completely.
4 Insert Soft-close® damper completely into Soft-close® adapter with the flattened side
pointing down.
Click-on cabinet door to mounting plates.
Mount cover cap on hinge if desired (cover cap is included in set).
5 Adjust Soft-close® CST to different opening angles and cranking if necessary via
adjustment screw.
3
1 2
4 5
2a
Please check:
Are locator pins attached to the hinge
cup?
Soft-close®
1.5.5
