This document is a user manual for the MERACH MR-532 elliptical machine, a fitness device designed for home use. The manual provides comprehensive instructions for assembly, operation, maintenance, and safety.

Function Description:

The MERACH MR-532 is an elliptical trainer, a type of stationary exercise machine used to simulate stair climbing, walking, or running without causing excessive pressure to the joints, hence decreasing the risk of impact injuries. It provides a full-body workout by engaging both the upper and lower body simultaneously. The machine features a console that displays various workout metrics, allowing users to track their progress and set fitness goals.

Important Technical Specifications:

Model: MR-532
Type: Elliptical Machine
Weight Limit: 130 kg (286 lbs)
Console Display Modes: Time (TIME), Speed (SPD), Distance (DIST), Calories (CAL), Total Distance (ODO), Pulse (PUL), Scan (SCAN).
Speed Unit: Miles per hour (mph)
Distance Unit: Miles
Power Source (Console): Batteries (not included)
Assembly Components: Includes various bolts, nuts, washers, frame parts (front/rear stabilizers, upright, lower/upper arms, pedal arms), flywheel, crank, console, and wiring for resistance and pulse sensors. Specific hardware includes M3x7mm, M4x20mm, M6x100mm, M8x60mm, M8x16mm, M6x45mm, M5x45mm, M10x45mm, M8x65mm, M5x12mm, and M4x16mm screws/bolts, along with various nuts and washers (flat, curved, split, wave, acorn, locknuts). Allen wrenches (L6, L8) are provided for assembly.

Usage Features:

Console Operation: The console is user-friendly, featuring RESET, MODE, and SET buttons. It can be activated by pressing any button or by starting to pedal. Users can set training goals for time, distance, calorie consumption, or target heart rate.
Workout Tracking: The console provides real-time feedback on workout duration (TIME), current speed (SPD), distance covered in the current session (DIST), total accumulated distance since purchase (ODO), estimated calories burned (CAL), and heart rate (PUL) when gripping the handgrip sensors.
Scan Mode: The SCAN mode cycles through all display metrics (time, speed, distance, calories, pulse, and total distance) for a few seconds each, offering a comprehensive overview of the workout.
Heart Rate Monitoring: The Pulse (PUL) mode displays heart rate in beats per minute. If a target heart rate is set, the display will flash when the user's heart rate exceeds the target.
Adjustable Resistance: The machine incorporates a resistance control cable (20) and a lower resistance cable (21), suggesting adjustable resistance levels for varied workout intensity, although specific adjustment mechanisms are not detailed in the provided console description.
Transport Wheels: Equipped with transport wheels (22) for easy relocation.
Leveling Caps: Features leveling caps (23) on the rear stabilizer for stability on uneven surfaces.
Water Bottle Holder: Includes a water bottle holder (41) for convenience during workouts.

Maintenance Features:

Regular Checks: Users are advised to regularly check all nuts, bolts, and fittings to ensure they are securely tightened. Moving parts should be periodically inspected for signs of wear or damage.
Cleaning: The machine should be cleaned with a damp cloth. Solvent cleaners are explicitly prohibited.
Lubrication: The manual instructs applying grease to the right axle on the upright during assembly, indicating that lubrication of moving parts is a key maintenance aspect.
Placement: The product should always be placed on a solid, flat surface. A rubber mat can be used underneath to prevent slipping.
Storage: Store the product in a clean, dry environment, avoiding excessively cold or damp places to prevent rust and other issues.

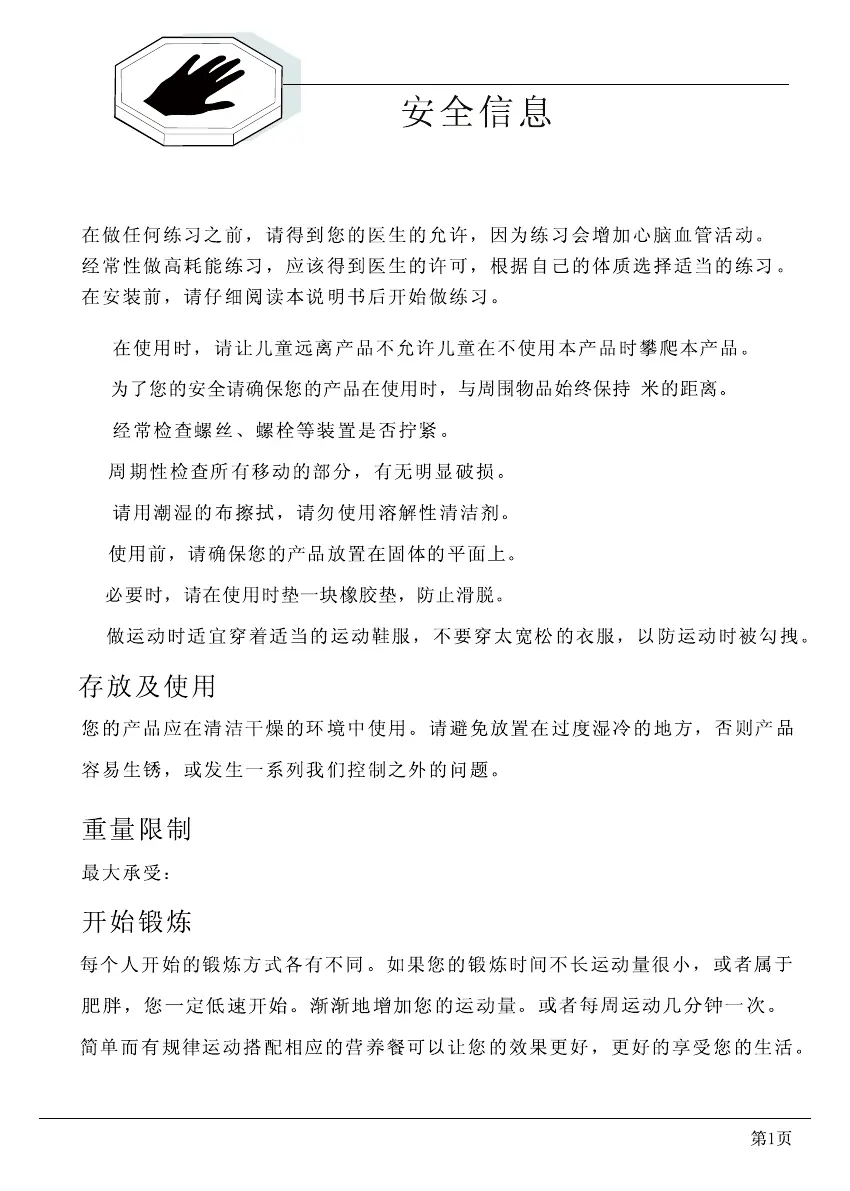

Safety Precautions:
- Consult a doctor before starting any exercise program, especially for individuals with cardiovascular conditions or those new to exercise.
- Keep children away from the machine during use and prevent them from climbing on it when not in use.
- Maintain at least 1 meter (3 feet) of clear space around the product during exercise.
- Wear appropriate athletic clothing and footwear; avoid loose clothing that could get caught.
- Ensure all parts are correctly assembled and tightened before use.
